Black aluminium fanless mini PC with mounting ears, compact rectangular shape

partaker

partaker I27 i5-8250U/8260U 16GB 240GB barebone mini PC

SKU CH-YE29-V9GPZ

Fanless industrial mini PC with an Intel Core i5 8250U or 8260U, 16 GB DDR4, 240 GB SSD, six COM ports, GPIO, dual LAN and Windows 11 Pro pre-installed

  • ColorBlack
  • CPU TypeIntel Core i5 8th Gen

CPU Type Intel Core i5-8250U

Group 16GB RAM / 256GB SSD

  • Fanless design enables silent 24/7 operation at 15W power draw
  • Windows 11 Pro 64-bit pre-installed for immediate deployment
  • Dual Intel i213 LAN ports plus Wi-Fi 802.11 ac with SIM slot
  • Six COM ports support RS232 RS422 RS485 switching via BIOS
  • Compact 230 x 175 x 50 mm aluminium chassis with mounting ears

Industrial Mini PC with i5-8250U/8260U

The Partaker I27 is a fanless barebone system built around an Intel Core i5 8250U or 8260U processor. It ships with 16GB of DDR4-2400 memory and a 240GB SSD, and Windows 11 Pro is pre-installed. The aluminium chassis measures 230 x 175 x 50mm and weighs 1.25kg, making it suitable for industrial automation, edge computing or digital signage where silent 24/7 operation is required.

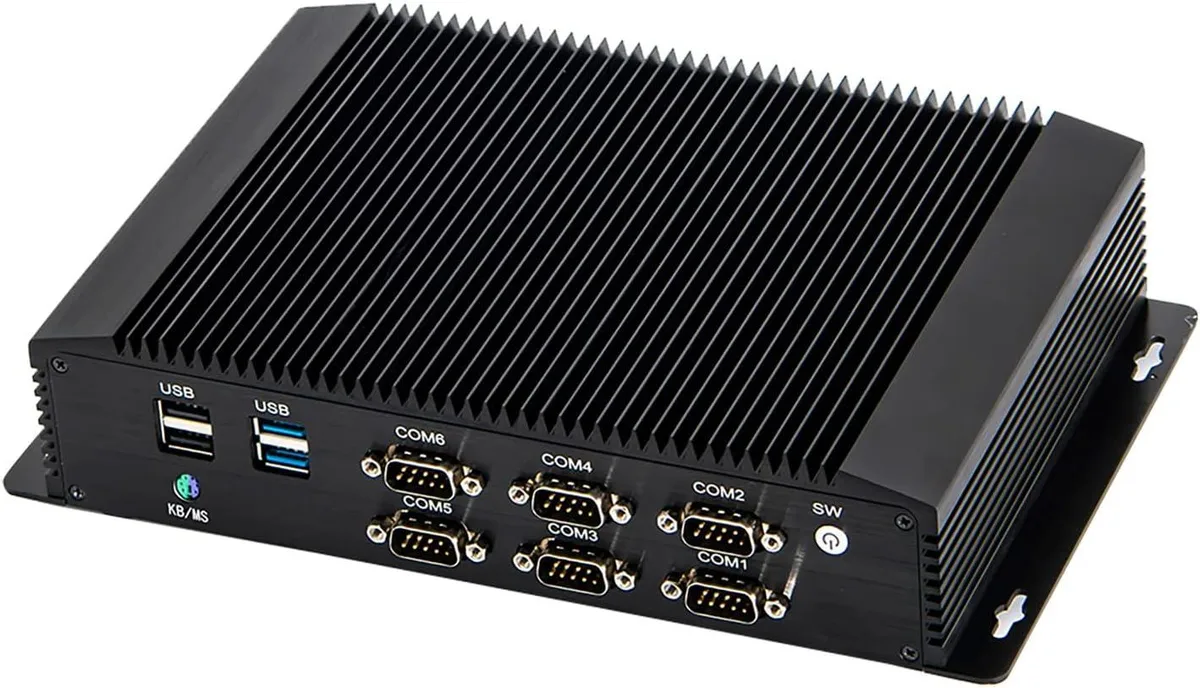

Six COM ports with RS232/422/485 switching

The decisive specification is the six serial ports that support RS232, RS422 and RS485 modes selectable in the BIOS. This density of configurable COM interfaces is rare in compact PCs and determines whether the unit can replace legacy PLCs, barcode scanners or modbus gateways without extra adapters. Two Intel I213 LAN ports, VGA, HDMI, GPIO, four USB 3.0 and four USB 2.0 complete the I/O set.

Fanless installation with mounting ears

The chassis includes mounting ears for wall or DIN-rail fixing and runs from a 12V 5A DC supply that accepts 100-240V AC input. Because the system is fanless, ensure adequate airflow around the aluminium case; the operating range is -10°C to 60°C. Expansion uses one mSATA slot, one M.2 2280 slot (SATA or NVMe) and one 2.5-inch SATA bay, all accessible after removing the bottom cover.

Öne çıkanlar

  • Fanless design enables silent 24/7 operation at 15W power draw
  • Windows 11 Pro 64-bit pre-installed for immediate deployment
  • Dual Intel i213 LAN ports plus Wi-Fi 802.11 ac with SIM slot
  • Six COM ports support RS232 RS422 RS485 switching via BIOS
  • Compact 230 x 175 x 50 mm aluminium chassis with mounting ears

Teknik özellikler

ColorBlack
CPU TypeIntel Core i5 8th Gen

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How does the 8250U or 8260U quad-core processor perform in a fanless industrial chassis?

The processor runs at a 15W TDP inside a sealed aluminium case, so sustained loads stay within the -10 °C to 60 °C operating range without active cooling.

What display outputs are available and what resolutions do they support?

One VGA and one HDMI port are provided; both can drive independent screens for dual-monitor industrial setups.

What mounting hardware is included for DIN-rail or wall installation?

The unit ships with integrated mounting ears on the 230 × 175 × 50 mm chassis for direct wall or cabinet fixing.
