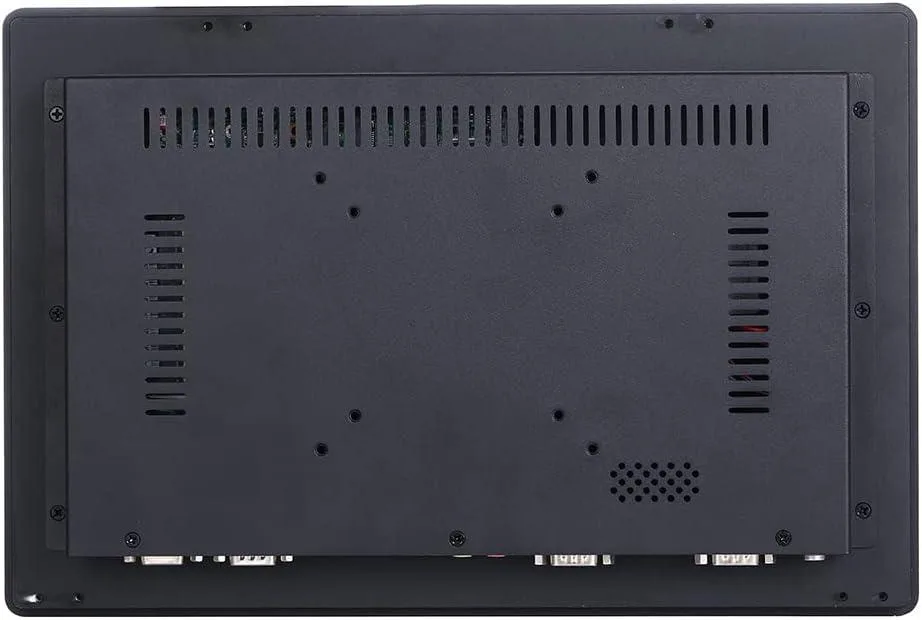

Black 14-inch industrial all-in-one panel PC with IP65 front touchscreen, fanless aluminium chassis, VESA mount cutout visible

partaker

partaker Z10 all-in-one PC 14" i7-8565U 8GB 512GB

SKU CH-B4M4-PM8YE

Fanless 14″ IP65 panel PC with Core i7-8565U, 8 GB DDR4, 512 GB SSD, 10-point capacitive touchscreen, dual LAN, HDMI, VGA, two COM ports and Windows 11 Pro

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 8GB DDR4

SSD 512GB

Üzeri çizili sürümler mevcuttur ancak burada stokta değildir.

  • 14-inch IP65 front panel resists dust and water jets
  • Core i7-8565U up to 4.60 GHz handles industrial workloads
  • 10-point capacitive touch rated for 200 million touches
  • Fanless aluminium chassis operates 0 to 50 °C with SSD
  • Dual LAN plus HDMI and VGA for flexible connectivity

Industrial All-in-One Panel PC

The Partaker Z10 integrates a 14-inch IP65-rated touchscreen with an Intel Core i7-8565U processor, 8GB of DDR4 memory and a 512GB SSD. Windows 11 Pro comes pre-installed for immediate deployment in automation, kiosk or machine-interface roles.

Fanless Aluminium Chassis and Mounting Flexibility

A sealed aluminium enclosure removes moving parts and achieves an IP65 front rating, while the 10-point projected capacitive panel is rated for 200 million touches. The 340.3 x 225.3 mm cut-out supports embedded, wall, desktop or cantilever mounting without extra brackets.

Triple Storage Bays and Expansion Slot

One mSATA, one M.2 2280 NVMe/SATA and one 2.5-inch SATA bay allow mixed SSD or HDD configurations. A Mini PCIe slot with a SIM holder accepts 4G or Wi-Fi modules, and dual LAN, HDMI, VGA, two USB 3.0, two USB 2.0, two COM ports plus audio complete the I/O set.

Öne çıkanlar

  • 14-inch IP65 front panel resists dust and water jets
  • Core i7-8565U up to 4.60 GHz handles industrial workloads
  • 10-point capacitive touch rated for 200 million touches
  • Fanless aluminium chassis operates 0 to 50 °C with SSD
  • Dual LAN plus HDMI and VGA for flexible connectivity

Teknik özellikler

ModelZ10-I7 8565U-8G512G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
SSD512GB
HDDNo
Screen Size14"
TouchscreenYes

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

What resolution does the HDMI output on the Z10 support?

The HDMI port on the Z10 can drive an external display at up to 1600 x 900 resolution, matching the built-in panel's native pixel count.

What are the exact cut-out dimensions required to panel-mount this unit?

The mounting cut-out measures 340.3 mm wide by 225.3 mm high, with the overall bezel sized at 346.3 x 231.3 mm for flush installation.

How do I add a 2.5-inch SATA drive, and which step is often missed?

Open the rear chassis, secure the drive in the 2.5-inch bay, connect both the SATA data and power cables, then verify the BIOS detects the new volume before closing the case.
