14-inch gray all-in-one industrial panel PC with IP65 touchscreen

partaker

partaker Z10-I7 6500U-16G256G1TB 14" all-in-one PC

SKU CH-S4JJ-QW4EZ

A 14-inch IP65-rated industrial all-in-one with a 10-point capacitive touchscreen, Core i7-6500U processor, 16GB DDR4, 256GB SSD and 1TB HDD running Windows 11 Pro

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • CPU NameIntel Core i7-6500U
  • GPU/VGA TypeIntel HD Graphics 520

CPU Type Intel Core i7 6th Gen

CPU Name Intel Core i7-6500U

Memory Capacity 16GB DDR4

SSD 256GB

HDD 1TB

Üzeri çizili sürümler mevcuttur ancak burada stokta değildir.

  • IP65 front panel protects against dust and water jets in harsh environments
  • 10-point capacitive touchscreen enables precise multi-touch control for industrial workflows
  • Fanless aluminum alloy cooling delivers silent 24/7 operation from 0 to 50 °C
  • Intel Core i7-6500U with 16 GB DDR4 provides responsive performance for embedded applications
  • Dual LAN, two COM ports, HDMI and VGA support flexible industrial connectivity

Industrial panel PC

The Partaker Z10-I7 6500U-16G256G1TB is a 14-inch all-in-one computer built for industrial environments. It combines an Intel Core i7-6500U processor, 16GB DDR4 memory, 256GB SSD and 1TB HDD behind an IP65-rated front panel. The fanless aluminium chassis runs silently from 0 to 50°C with SSD or 0 to 40°C with HDD. Windows 11 Pro comes pre-installed for immediate deployment.

Installation notes

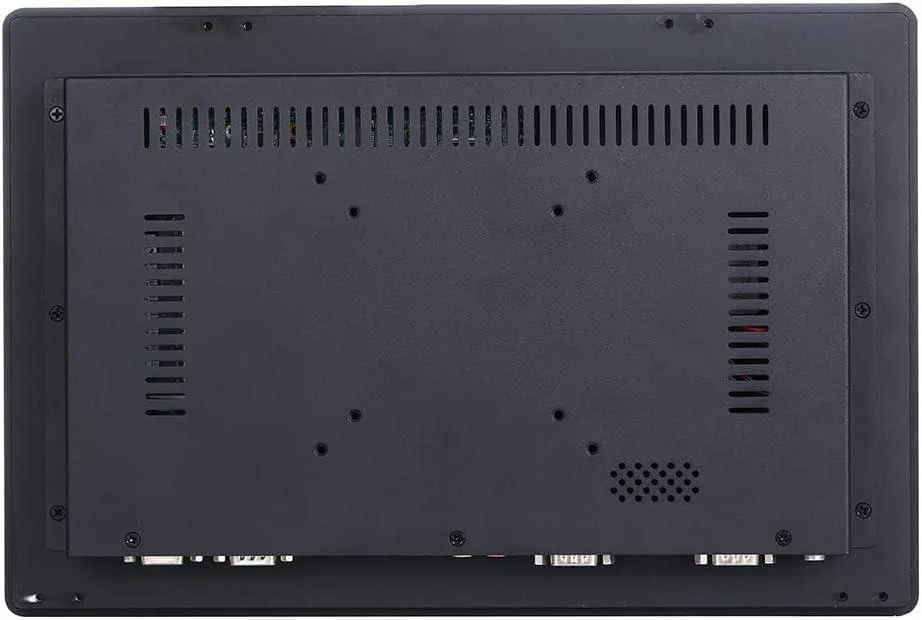

The unit mounts through a 340.3 x 225.3 mm cut-out using the embedded brackets supplied in the box. A single 12V DC barrel jack powers the system; the external adapter accepts 100-240V AC so no internal wiring is required. Dual LAN, two COM ports, HDMI and VGA use standard industrial connectors that lock securely. The fanless design removes filter maintenance but limits sustained load when ambient temperature approaches 50°C.

Interface limits

The 1600 x 900 panel delivers 200 cd/m² brightness and 400:1 contrast with 86% transmittance at 550 nm. Ten-point projected capacitive touch is rated for 200 million touches and viewing angles of 45° left, 45° right, 15° top and 35° bottom. Dual LAN tops out at 1 Gbps per port while the two USB 3.0 ports share 5 Gbps bandwidth. Expansion relies on a single mini PCIe slot with SIM holder for wireless modules.

Öne çıkanlar

  • IP65 front panel protects against dust and water jets in harsh environments
  • 10-point capacitive touchscreen enables precise multi-touch control for industrial workflows
  • Fanless aluminum alloy cooling delivers silent 24/7 operation from 0 to 50 °C
  • Intel Core i7-6500U with 16 GB DDR4 provides responsive performance for embedded applications
  • Dual LAN, two COM ports, HDMI and VGA support flexible industrial connectivity

Teknik özellikler

ModelZ10-I7 6500U-16G256G1TB
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
CPU NameIntel Core i7-6500U
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity16GB DDR4
SSD256GB
HDD1TB
Screen Size14"
TouchscreenYes

Bu modelin diğer sürümleri

Aynı seriden 5 tane daha

Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.

Bu ürünle ilgili sorular

How can I verify the 10-point capacitive touchscreen and Intel HD Graphics 520 are working after setup?

Open Windows 11 Pro Settings and confirm the display reports 1600 x 900 resolution at 200 cd/m² brightness; use the touch test tool to register 10 simultaneous touch points, then run DirectX Diagnostic Tool to verify Intel HD Graphics 520 is the active GPU.

What ships in the box and what must I source separately for this Z10 model?

The box contains the Partaker Z10 Panel PC, the 12 V DC power supply and a power cord; you must purchase any Wi-Fi or 4G module for the Mini PCIe slot, a SIM card for that module, and any additional mSATA, M.2 2280 NVMe or 2.5" SATA storage you wish to add.

Which storage combination should I choose between the 256 GB SSD and 1 TB HDD for this unit?

The unit already includes both a 256 GB SSD and a 1 TB HDD; use the SSD for Windows 11 Pro and applications to benefit from faster boot and load times, and use the HDD for bulk data such as logs, media or backups.
