Ubiquiti Networks U7-Pro-Wall WiFi 7 access point
Wall-mounted WiFi 7 access point covers 140 m², supports 300+ devices, and connects via 2.5 GbE PoE+
- # of Users300+
- Standards802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- WiFi GenerationWi-Fi 7
- Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
- SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 6
Options U7 Pro Wall
- U7 Pro Wall
- U7 Pro Max
- U7 Pro
- U7-Outdoor
- U7 Lite
- U7 In-Wall
- U7 Pro Outdoor
- U7 Long Range
- U7 Pro XG
- U7 Pro XG - Black
- U7 Pro XGS - Black
- U7 Pro XGS
1 yapılandırma daha gösterin
- U7 Pro XG Wall
Üzeri çizili sürümler mevcuttur ancak burada stokta değildir.
- WiFi 7 with 6 GHz band for modern device capacity
- Six spatial streams raise throughput for dense environments
- 5 GbE PoE+ uplink delivers power and data over one cable
- Indoor coverage up to 140 m² suits large rooms
- Supports 300+ concurrent clients for high-density deployments
Wall-Mounted WiFi 7 Access Point

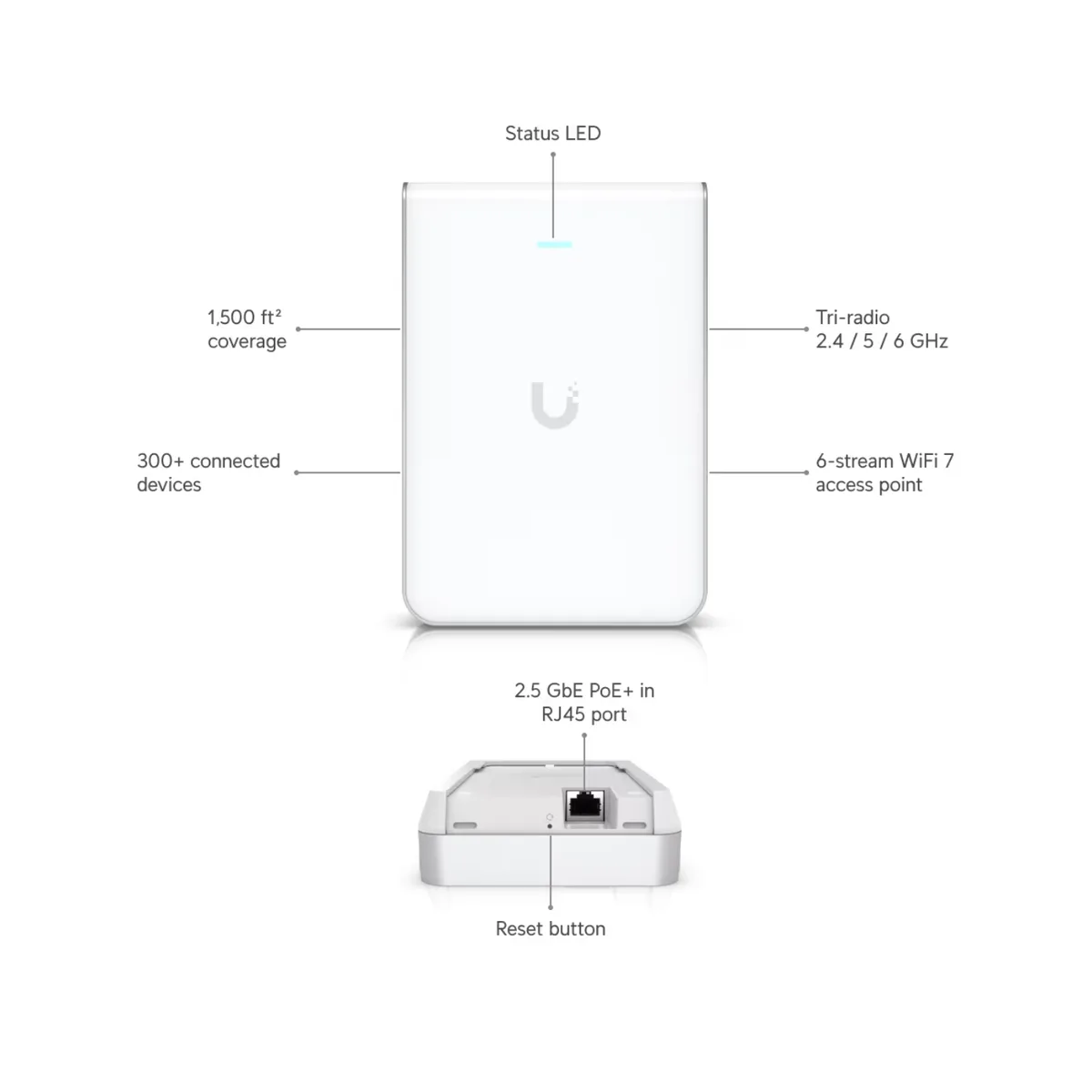

The Ubiquiti U7-Pro-Wall is a wall-mounted wireless access point built for indoor deployments that need Wi-Fi 7 performance with 6 GHz support. It targets home builders and installers who want a single unit that handles high device density without a separate ceiling-mount kit. The design fits standard wall boxes and supports up to 300 concurrent users across 2.4, 5 and 6 GHz bands. Buyers who need outdoor-rated hardware or ceiling-only mounting should look elsewhere.
PoE+ Power and 2.5 GbE Uplink

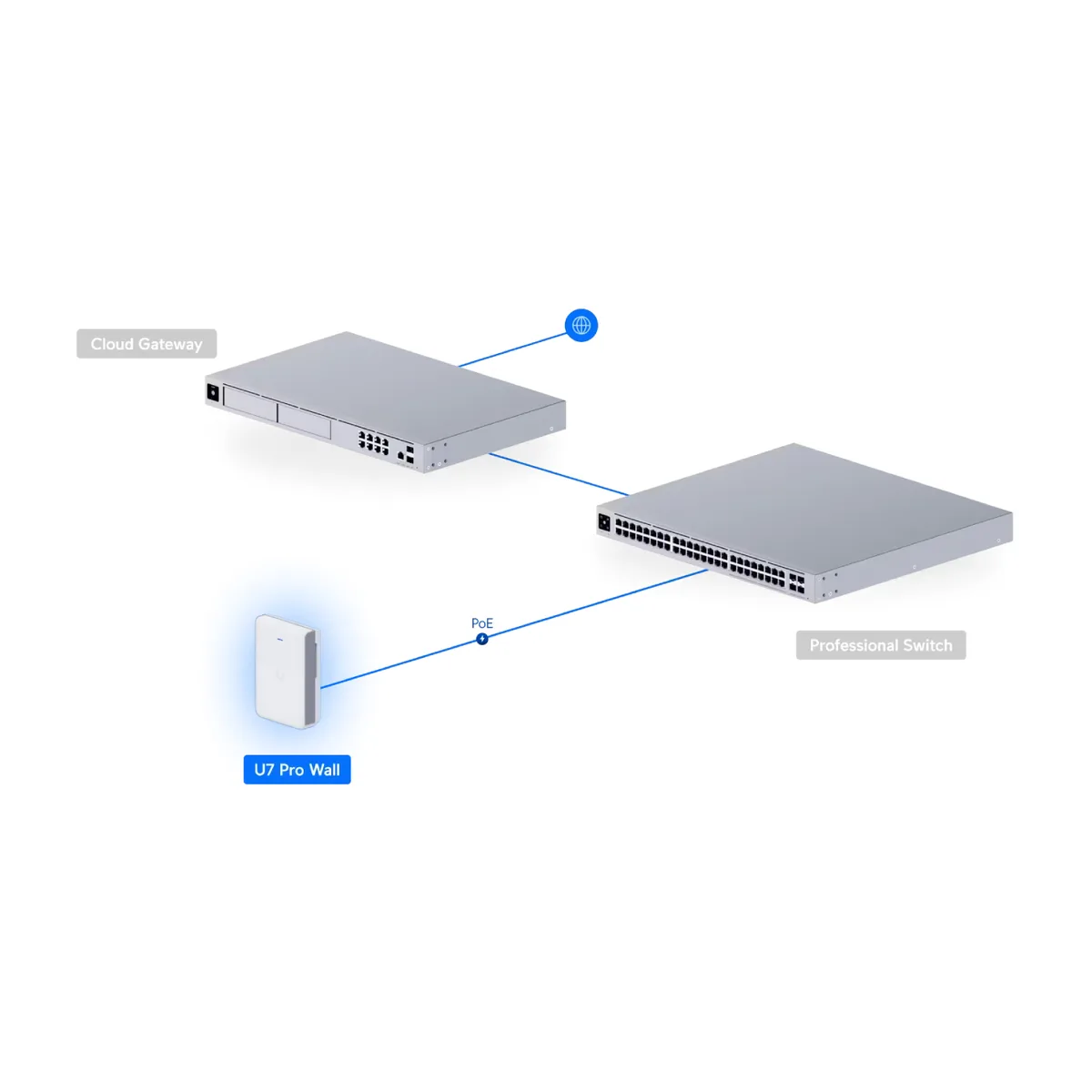

The unit draws power through a single 2.5 GbE RJ45 port using PoE+, so one cable delivers both data and electricity. This reduces cabling work in retrofit projects where pulling a separate power line is impractical. The wall-mount bracket ships in the box and screws directly onto a standard junction box. No separate injector or mid-span is included, so the network switch must supply PoE+ on that port.
UniFi Site Manager and Optional Mounts
Management runs through UniFi Site Manager, which visualises channel distribution across the deployment and helps optimise airtime. The package contains the access point and mounting accessories only; a Flush Mount kit and a Table Stand are sold separately for alternative orientations. There is no bundled controller appliance or licence key — the software is cloud-hosted and free to use with a Ubiquiti account.
Öne çıkanlar
- WiFi 7 with 6 GHz band for modern device capacity
- Six spatial streams raise throughput for dense environments
- 5 GbE PoE+ uplink delivers power and data over one cable
- Indoor coverage up to 140 m² suits large rooms
- Supports 300+ concurrent clients for high-density deployments
Teknik özellikler
| Brand | Ubiquiti Networks |
|---|---|
| Series | WIFI Access points |
| Model | U7 Pro Wall |
| Part Number | U7-Pro-Wall |
| # of Users | 300+ |
| Standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| WiFi Generation | Wi-Fi 7 |
| Wireless Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Antenna | 2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 6 GHz 2 x 2 (DL/UL MU-MIMO) |
| Transmitted Power | 2.4 GHz 22 dBm 5 GHz 26 dBm 6 GHz 23 dBm |
| Mounting Location | Indoor |
| Operating Range | Indoor: Up to 140m, Outdoor: Up to 140m |
| Interface | (1) 1/2.5 GbE RJ45 port |
| LAN Ports | (1) 1/2.5 GbE RJ45 port |
| Power Supply | PoE+ |
| Temperature | -30 to 60° C (-22 to 140° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") |
| Weight | 580 g (1.3 lb) |
| Features | BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 300+ |
| Kargo ağırlığı | 0.77 kg |
| Koli boyutu | 206 × 155 × 76 mm |
Bu modelin diğer sürümleri
Aynı seriden 3 tane daha
Aynı aile, farklı bellek, soğutucu veya frekans — karar vermeden önce karşılaştırın.
Ubiquiti Networks
Ubiquiti Networks U7-Outdoor WiFi 7 access point
- 250+
- 802.11a/b/g/n/ac/ax…
$166,99
0.00213602BTC
Stokta
Ubiquiti Networks
Ubiquiti Networks U7-Pro-Max WiFi 7 access point
- 500+
- 802.11a/b/g/n/ac/ax…
$245,99
0.00314654BTC
StoktaBu ürünle ilgili sorular
What does the 2.5 GbE RJ45 port limit in real use?
The single 2.5 GbE RJ45 port caps wired uplink speed at 2.5 Gbps and delivers PoE+ power to the access point.

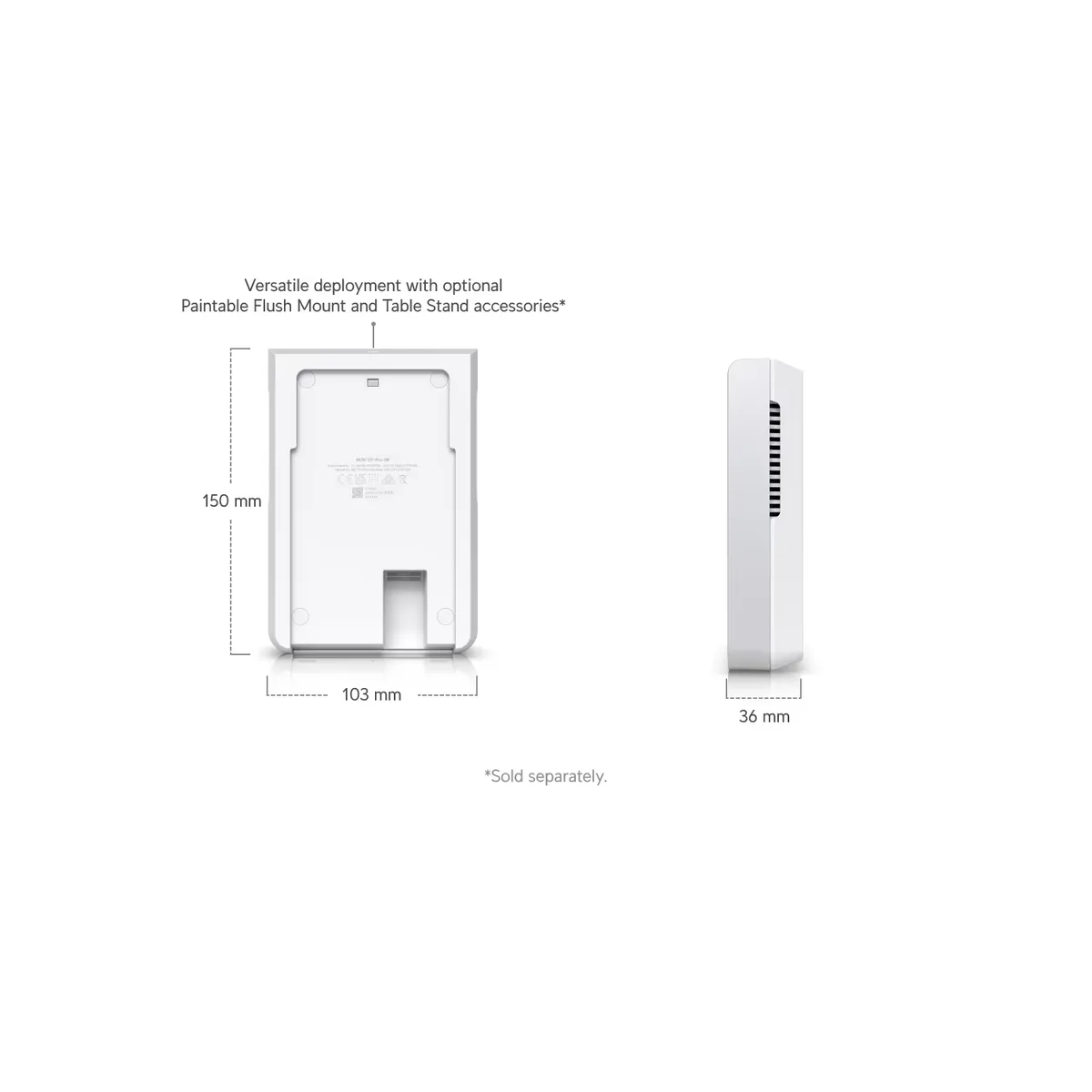

What wall opening or box does the 150 x 103 x 36 mm unit need?
It mounts on a standard single-gang electrical box; the 150 mm by 103 mm faceplate covers the box and the 36 mm depth clears the wall cavity.
How is the AP powered and where do installers go wrong?
Connect the 2.5 GbE port to a PoE+ switch or injector; the frequent error is using a standard PoE source that cannot supply the required power class.
