Silver and black 4U rackmount server chassis with three 5.25 inch front bays, two USB 3.0 ports and a front panel lock

Rosewill

Rosewill RSV-L4000U 4U Server Chassis 8×3.5" 3×5.25" 7 Fans

SKU CH-95QX-JAXHQ MPN RSV-L4000U

4U rackmount server chassis with eight 3.5-inch drive bays, three 5.25-inch bays and seven pre-installed fans

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialSGCC
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • LED IndicatorsPower status, HDD activity, 2 x LAN activity
  • Ample storage capacity with 8 internal 3.5" bays and 3 external 5.25" bays
  • Broad motherboard support for ATX, E-ATX, Micro ATX and Mini ITX builds
  • Seven pre-installed fans deliver strong airflow across front, middle and rear zones
  • Front-panel LEDs show power, drive activity and dual LAN status at a glance

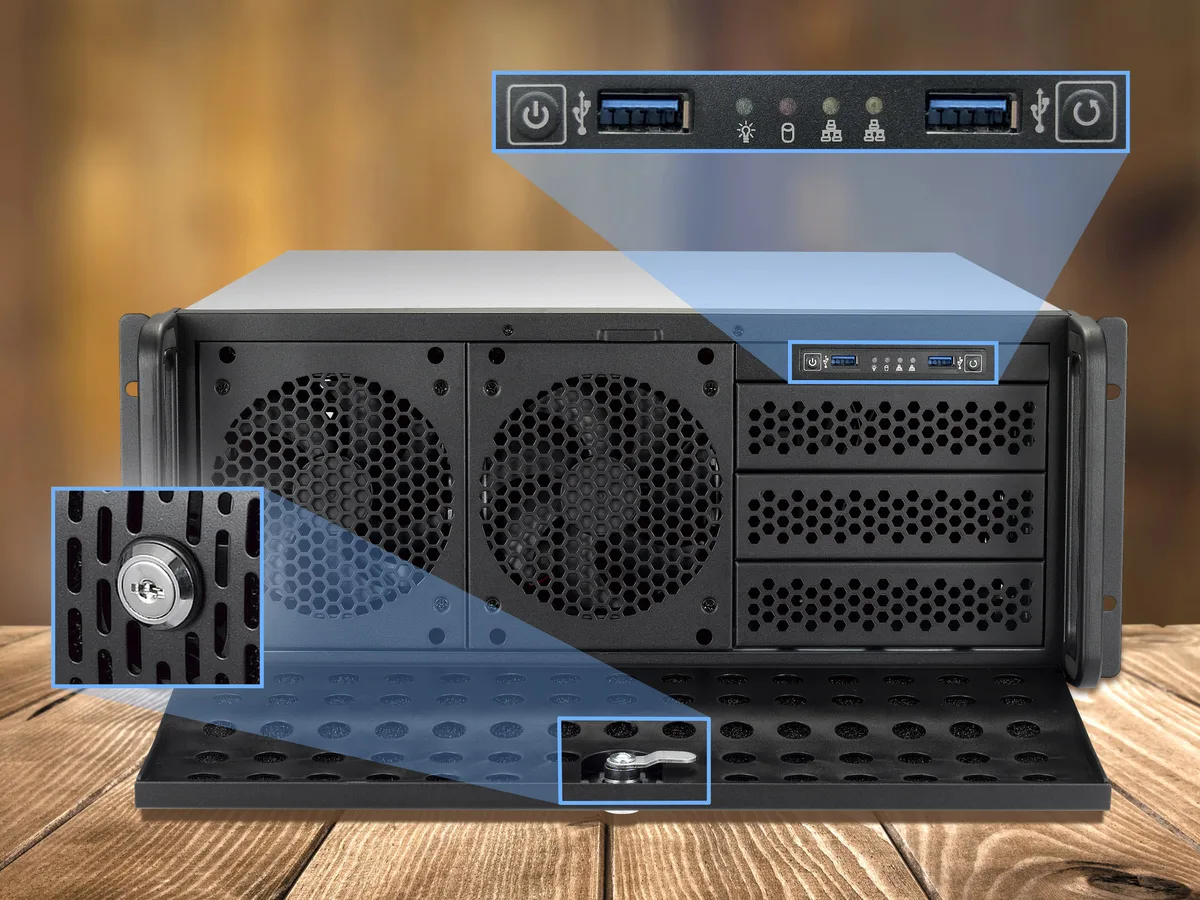

  • Two USB 3.0 ports plus a lockable front door add convenience and security

Server chassis for dense storage

The Rosewill RSV-L4000U is a 4U rackmount case that fits eight internal 3.5-inch drive bays and three external 5.25-inch bays. It accepts ATX, E-ATX, Micro-ATX and Mini-ITX motherboards, making it suitable for home servers or small server rooms that need high drive counts in a standard rack footprint. Builders who need more than eight 3.5-inch bays or who require hot-swap backplanes will need a different chassis.

Drive capacity and motherboard support

The eight 3.5-inch bays are the defining specification; they set the maximum number of mechanical drives you can install without adding external enclosures. Seven PCI expansion slots and E-ATX compatibility give flexibility for add-in cards such as RAID controllers or additional network interfaces.

Cooling layout and included fans

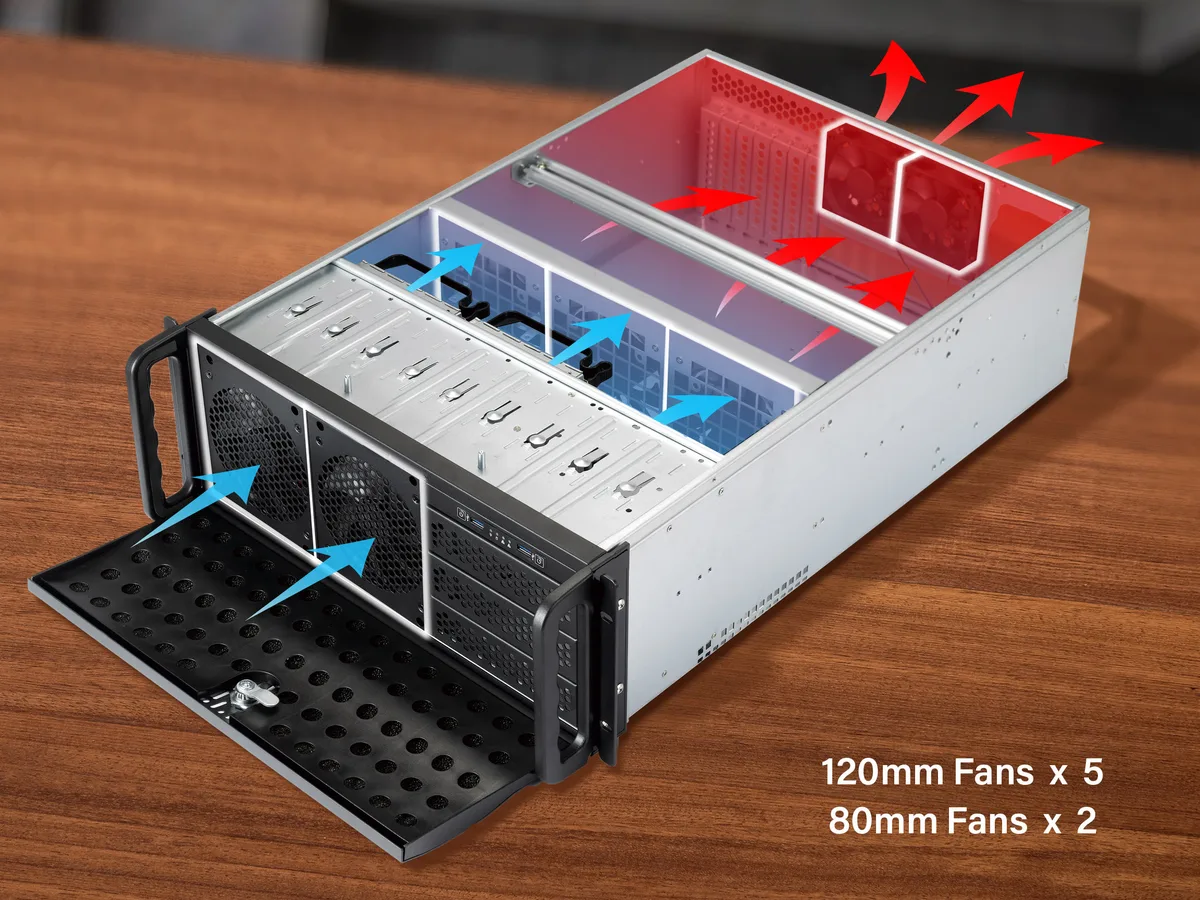

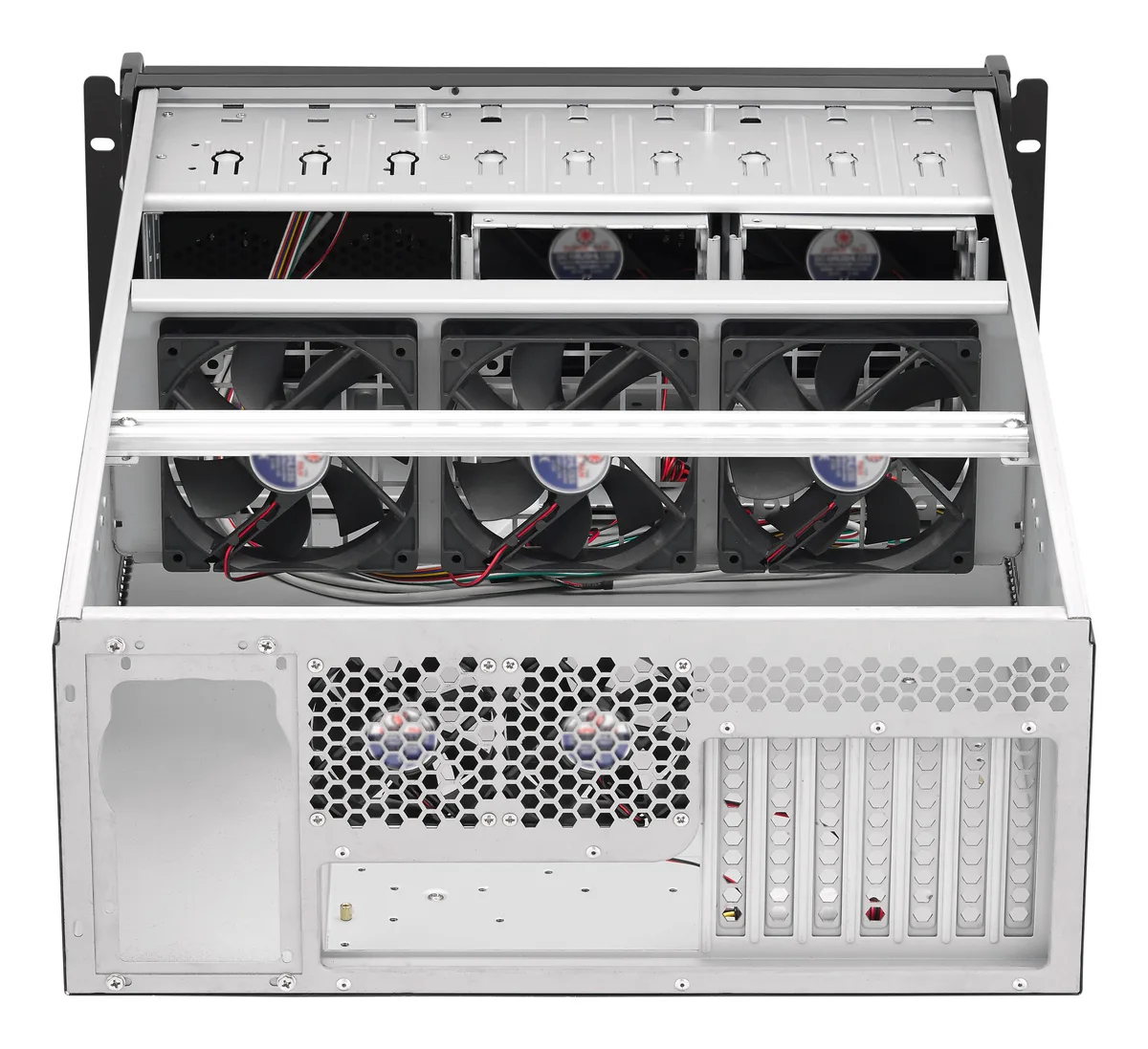

Seven fans ship pre-installed: two 120 mm units at the front, three 120 mm units in the middle chamber and two 80 mm units at the rear. This arrangement pushes air through the drive bays and over the motherboard, keeping thermals under control in typical server workloads. CPU cooler clearance is 152 mm without the GPU holder fitted and 117 mm with it installed.

Βασικά χαρακτηριστικά

  • Ample storage capacity with 8 internal 3.5" bays and 3 external 5.25" bays
  • Broad motherboard support for ATX, E-ATX, Micro ATX and Mini ITX builds
  • Seven pre-installed fans deliver strong airflow across front, middle and rear zones
  • Front-panel LEDs show power, drive activity and dual LAN status at a glance
  • Two USB 3.0 ports plus a lockable front door add convenience and security

Προδιαγραφές

BrandRosewill
ModelRSV-L4000U
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialSGCC
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
LED IndicatorsPower status, HDD activity, 2 x LAN activity
External 5.25" Drive Bays3
Internal 3.5" Drive Bays8
Expansion Slots7
Max CPU Cooler HeightWith GPU holder: 117mm / Without GPU holder: 152mm
Max GPU LengthWith Middle Fan 320mm/ Without Middle Fan: 400mm
Max PSU Length220 mm PS2 (ATX) , Mini-Redundant
Front Ports2 x USB 3.0
Fan OptionsFront - 2 x 120mm fans (2 x 120mm fan included)
Middle - 3 x 120mm fans (3 x 120mm fan included)
Rear - 2 x 80 mm fans (2 x 80 mm fan included)
FeaturesThe Rosewill RSV-L4000U 4U rackmount server case features 8 internal 3.5" HDD bays plus 3 additional 5.25" devices to boost your home server or server room. 7 pre-installed cooling fans help prevent your server chassis from overheating. 7 PCI expansion slots allow you to customize your case as you wish. The front panel of the rackmount case includes two USB 3.0 ports. Built in lock adds layer of security to your case and server room.
Dimensions427mm x 178 mm x 635mm (16.81" x 7.01" x 25.00")
Weight13.80kg (30.42 lbs)
Package ContentsRSV-L4000 Server Case
Keys
Screws
Other Accessories
Βάρος αποστολής17.30 kg
Διαστάσεις συσκευασίας787 × 584 × 279 mm

Ερωτήσεις για αυτό το προϊόν

How many 3.5-inch drives can the eight internal bays actually hold in a running server?

The chassis provides eight internal 3.5-inch bays, so you can install up to eight 3.5-inch hard drives or SSDs at once.

What does the 220 mm PSU length limit mean for the power supply I choose?

Any PS2 (ATX) or mini-redundant power supply must be 220 mm or shorter to fit in the allocated space.

Will a full-height PCI card clear the 117 mm CPU cooler limit when the GPU holder is installed?

With the GPU holder fitted the maximum CPU cooler height is 117 mm; removing the holder raises the limit to 152 mm.
