Silverstone Technology XE02-SP5 2U 64mm Server Chassis
A 2U server CPU cooler for AMD Epyc SP5 sockets, 64 mm tall with five 6 mm heat pipes and a 60 mm PWM fan reaching 10,000 rpm for 400 W TDP cooling
- Cools AMD Epyc CPUs up to 400W TDP
- 64mm height fits 2U rackmount servers
- Five 6mm heat-pipes transfer heat efficiently
- 60mm PWM dual ball-bearing fan rated 198000 hours MTTF
- Fan delivers 51.9 CFM at 10000 RPM
Compact 2U SP5 cooler
The SilverStone XE02-SP5 is a 64mm-tall active CPU cooler built for 2U rackmount servers and workstations using AMD Socket SP5. It targets system integrators and operators who need reliable thermal management in dense, small-form-factor enclosures where standard tower coolers cannot fit.
Rated for 400W TDP headroom

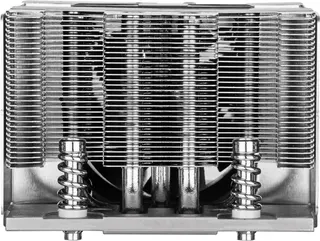

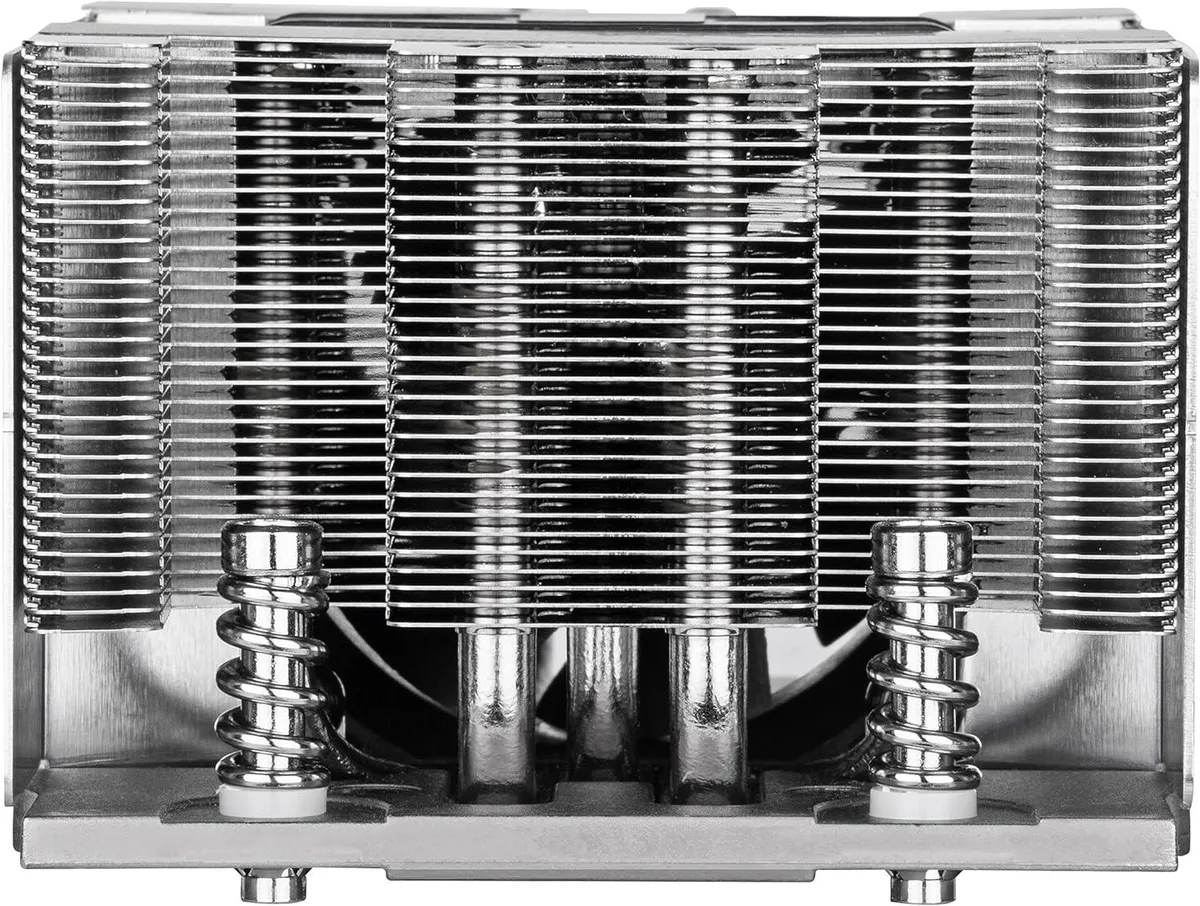

Five 6mm heat pipes transfer heat into an aluminium fin stack, enabling the cooler to handle Epyc processors rated up to 400W TDP. In sustained all-core workloads the thermal margin remains adequate; beyond the rated TDP or in severely restricted airflow the cooler will reach its limit and throttle the processor.
Dual ball-bearing PWM fan
A 60mm 4-pin PWM fan spins between 1600 and 10000rpm, delivering up to 51.9 CFM and 30.99mmH2O static pressure at a maximum of 57.5dBA while drawing 0.94A. The dual ball bearing design is rated for 198000 hours MTTF, providing long-life operation in continuously running server environments.
Βασικά χαρακτηριστικά
- Cools AMD Epyc CPUs up to 400W TDP
- 64mm height fits 2U rackmount servers
- Five 6mm heat-pipes transfer heat efficiently
- 60mm PWM dual ball-bearing fan rated 198000 hours MTTF
- Fan delivers 51.9 CFM at 10000 RPM
Προδιαγραφές
Δεν έχουν δημοσιευτεί ακόμη προδιαγραφές για αυτό το προϊόν.
Ερωτήσεις για αυτό το προϊόν
Will the XE02-SP5 fit in my 2U rack alongside older SP5 boards?
The cooler is 64mm tall and 93mm wide, matching the 2U form factor for Socket SP5 systems.
How can I verify the 60mm PWM fan is running correctly after installation?
The fan spins between 1,600 and 10,000 RPM; monitor speed via the 4-pin PWM header and listen for airflow up to 51.9 CFM.
Does the package include mounting hardware for AMD Epyc SP5 sockets?
The cooler ships with the 60mm dual ball bearing fan pre-installed and mounting hardware for Socket SP5.
