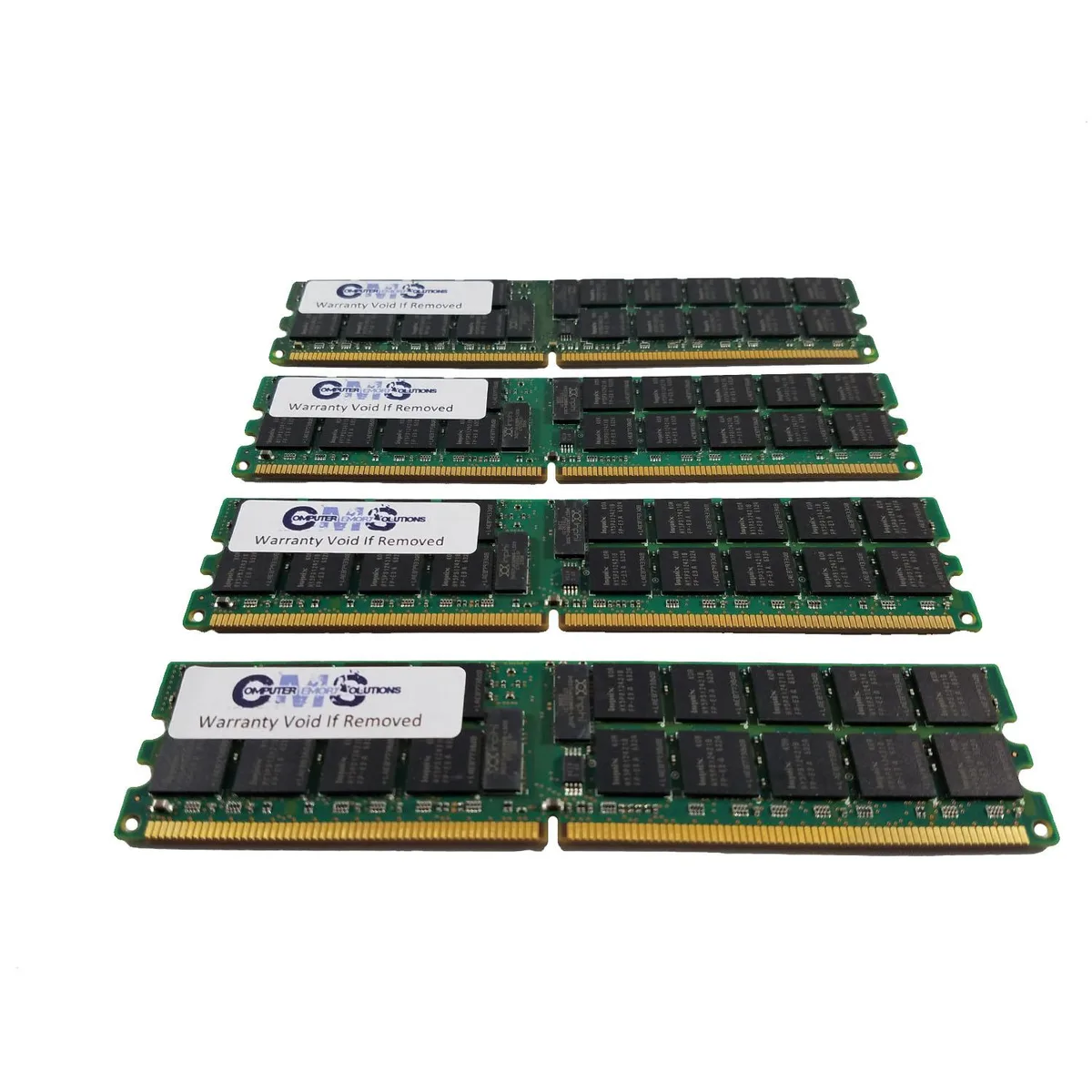

Four green DDR2 DIMM modules with gold contacts

Computer Memory Solutions

Computer Memory Solutions 16GB (4x4GB) DDR2 667MHz ECC Registered DIMM - B50

SKU CH-BTRF-NY31N

Four-module 16 GB DDR2 667 MHz ECC registered kit for HP ProLiant DL185 G5 servers

  • Capacity16GB (4 x 4GB)
  • Type240-Pin DDR2 SDRAM
  • SpeedDDR2 667 (PC2 5300)
  • CAS LatencyCL5
  • Timing5-5-5
  • Voltage1.8V
  • 16 GB DDR2 ECC registered kit for ProLiant DL185 G5 servers
  • 667 MHz PC2-5300 speed with CL5 latency for stable throughput
  • 240-pin DIMM modules install directly in compatible HP/Compaq systems
  • Registered 2Rx4 design supports 4-way bank interleaving per processor
  • 8 V operation matches original server voltage requirements

Server-Ready 16GB DDR2 Kit

This 16GB kit contains four 4GB DDR2-667 registered ECC DIMMs built for the HP ProLiant DL185 G5 server. Each module runs at 1.8V with CL5 timing and a 2Rx4 organisation. The registered buffer and error-correcting code suit multi-socket workloads that demand data integrity.

Sustained Load Behaviour

Registered signalling reduces electrical loading on the memory bus, allowing all eight sockets to be populated without timing degradation. ECC corrects single-bit errors on the fly, preventing silent data corruption during long compute runs. Dual-rank 2Rx4 chips enable four-way bank interleaving when four DIMMs are installed per processor node.

Upgrade Context

The kit expands a DL185 G5 toward its 64GB maximum across eight slots. Install kits in decreasing capacity order, placing the largest modules in the banks furthest from each CPU. Mixing single and dual-rank DIMMs on the same node disables bank interleaving, so match ranks within each processor. Only Opteron models 2378, 2382 or 2384 support DDR2-800; otherwise the system clocks to 667MHz.

Põhijooned

  • 16 GB DDR2 ECC registered kit for ProLiant DL185 G5 servers
  • 667 MHz PC2-5300 speed with CL5 latency for stable throughput
  • 240-pin DIMM modules install directly in compatible HP/Compaq systems
  • Registered 2Rx4 design supports 4-way bank interleaving per processor
  • 8 V operation matches original server voltage requirements

Tehnilised andmed

BrandComputer Memory Solutions
ModelCM512725300ECCREG2R4
Capacity16GB (4 x 4GB)
Type240-Pin DDR2 SDRAM
SpeedDDR2 667 (PC2 5300)
CAS LatencyCL5
Timing5-5-5
Voltage1.8V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderBased on Current Inventory (If Required Please Contact)
Compatible SystemHp/Compaq Proliant Dl185 G5
Package Content1 Memory RAM Stick

Küsimused selle toote kohta

How much power does this 1.8 V DDR2 kit draw in a ProLiant DL185 G5 running 24/7?

Each module operates at the standard 1.8 V DDR2 voltage; total power scales with the four 4 GB sticks installed, so the server's own power budget and cooling determine actual draw under load.

What server configuration is required before adding these 240-pin registered ECC DIMMs?

The kit is validated for HP/Compaq ProLiant DL185 G5 systems with Opteron third-generation processors; eight sockets are available across two banks per CPU, and kits must be installed in decreasing capacity order.

Will these 667 MHz dual-rank modules keep bank interleaving if I mix them with existing single-rank DIMMs?

Mixing single and dual ranked DIMMs on the same processor node disables bank interleaving, so all four slots per node should use matching 2Rx4 modules for 4-way interleaving.
