Five tiny OLED boards with white text screens

MCDODO

MCDODO 5 Pack 0.91 Inch OLED 128x32 SSD1306 White Text Development Board

SKU CH-76WV-ZEWZ7

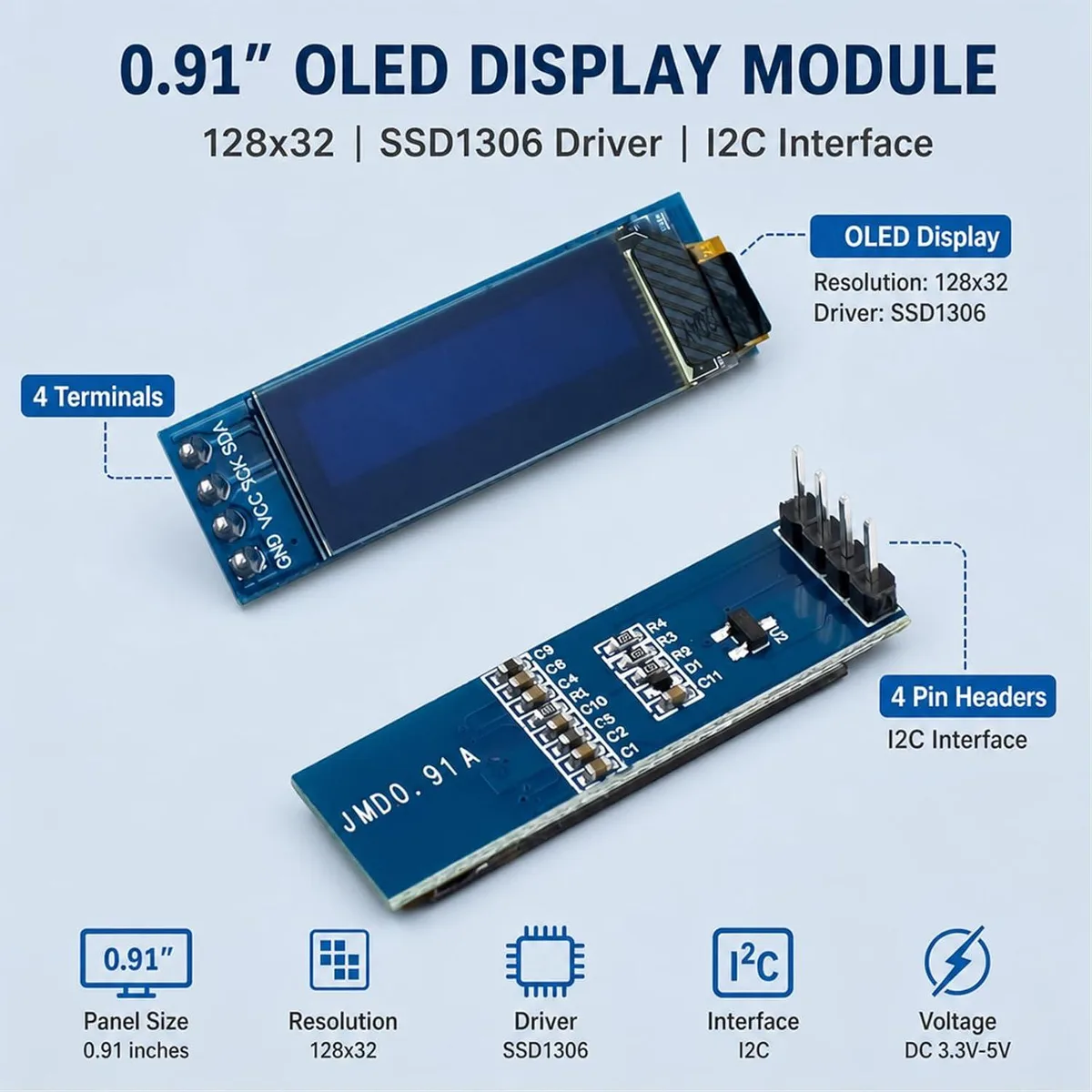

Five 0.91-inch OLED modules with 128x32 SSD1306 drivers, I2C interface and 3.3V-5V operation for multiple microcontroller projects

  • TypeSingle Board Computers
  • Five displays per pack for multiple projects
  • 91 inch 128x32 OLED shows crisp white text
  • SSD1306 driver with I2C needs only two data lines
  • Works at 3.3V or 5V with ESP32 ESP8266 STM32
  • Self-luminous panel uses no backlight saving battery power

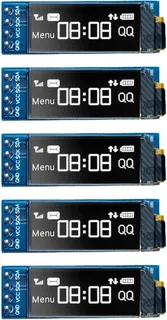

Five OLED modules in one pack

This pack supplies five 0.91 inch OLED modules, each with a 128x32 white-text display and an integrated SSD1306 driver. The boards are intended for makers, students and engineers building sensor nodes, status panels or wearable prototypes that need a compact self-illuminating screen.

Low power draw and simple wiring

The self-luminous panels operate without a backlight, which keeps current draw small for battery-powered devices. Communication uses a standard I2C bus needing only two data lines plus power, so the modules add minimal load to a microcontroller's pins and thermal budget.

Replaces bare LCDs or single-module purchases

Builders who previously used character LCDs gain higher contrast and wider viewing angles without extra wiring. The five-unit bundle suits projects that need several identical displays at once, while single-display experiments are better served by individual boards.

Põhijooned

  • Five displays per pack for multiple projects
  • 91 inch 128x32 OLED shows crisp white text
  • SSD1306 driver with I2C needs only two data lines
  • Works at 3.3V or 5V with ESP32 ESP8266 STM32
  • Self-luminous panel uses no backlight saving battery power

Tehnilised andmed

TypeSingle Board Computers

Küsimused selle toote kohta

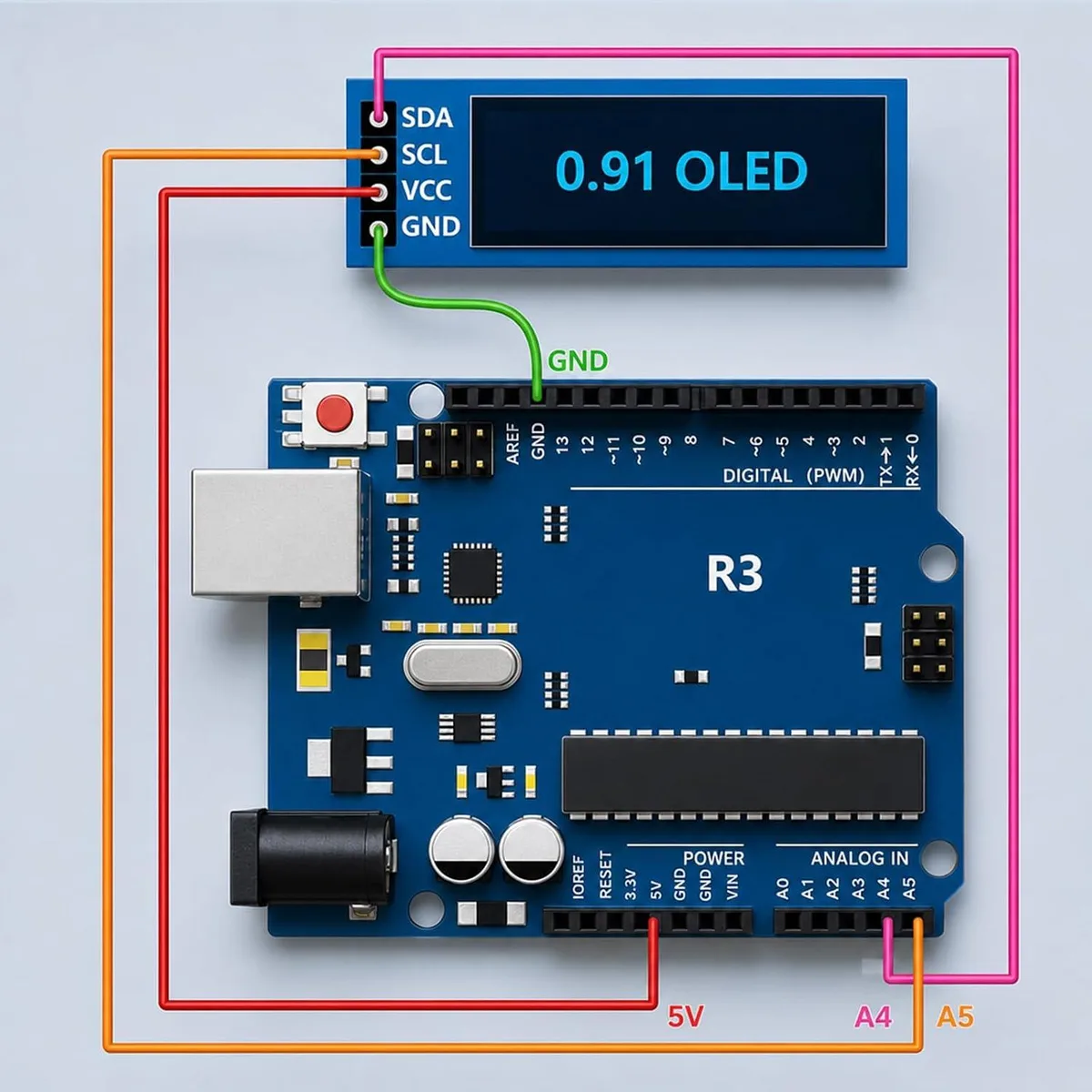

How do I wire the 4-pin I2C interface on the 0.91 inch SSD1306 board and which step causes the display to stay blank?

Connect VCC to 3.3 V or 5 V, GND to ground, SDA to the data line and SCK to the clock line; the common mistake is swapping SDA and SCK, which prevents any communication.

What component will degrade first and require module replacement during long-term use?

The self-illuminating OLED pixels gradually lose brightness; once white text becomes too dim to read, the entire 128x32 module must be replaced.

What is the first limitation that appears when the display runs continuously at 5 V?

The 128x32 pixel array can only show a small amount of text at once, so sustained logging quickly fills the screen and forces scrolling or clearing.
