Compact USB programmer with 9 adapter modules

Mickey Technology

Mickey Technology TL866II Plus Universal Programmer 15000+ Chips 9 Adapters

SKU CH-TY6V-7A87G

Universal programmer supports 15000+ chips with ICSP interface, 40/44/48-pin parallel programming, and built-in overvoltage protection

  • Program four devices simultaneously from one PC
  • USB port powers all chips without external supply
  • ICSP interface enables serial download and high-voltage parallel programming
  • Supports 15000+ chips including 40/44/48-pin large-capacity FLASH
  • Built-in over-voltage and four-level over-current protection prevents PC reset on short circuit

Universal Programmer for 15000+ Chips

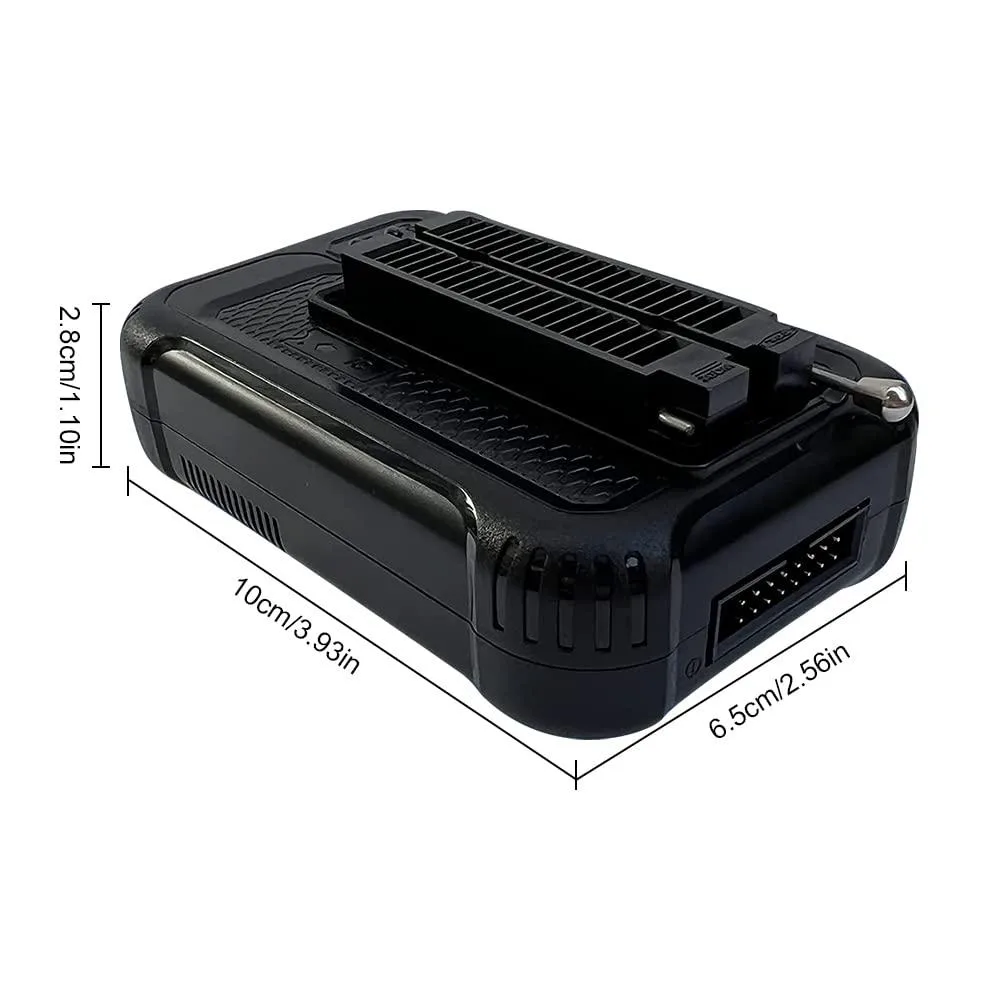

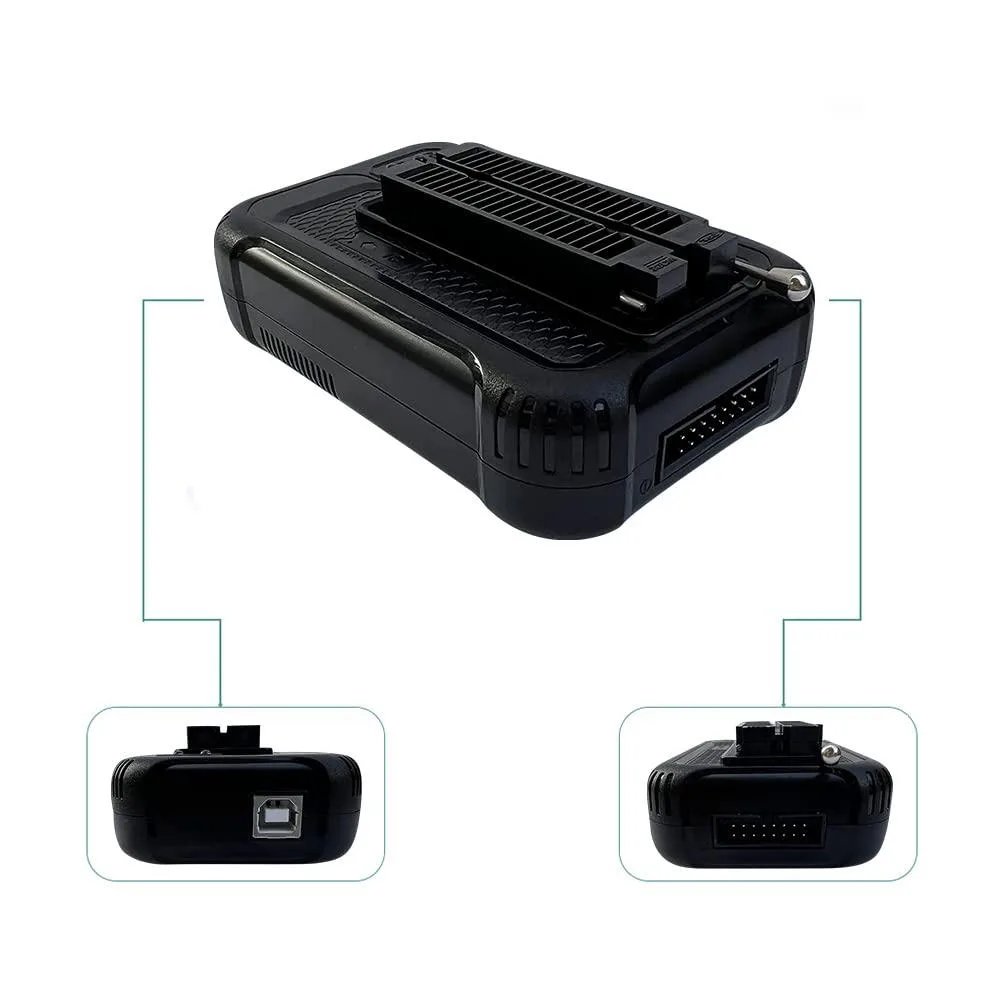

The TL866II Plus is a compact USB programmer that supports over 15000 serial and parallel devices including 40, 44 and 48 pin flash parts. It draws all power from the USB port so no external supply is required. Four programmers can run on one computer simultaneously for batch work.

Upgrade from TL866CS with ICSP and Protection

This model adds a unique ICSP interface for serial download and high-speed parallel high-voltage programming that the TL866CS lacks. Internal 40-pin overvoltage protection and four-level overcurrent protection on VPP and VCC prevent a short circuit from resetting the PC or the programmer.

For Engineers Needing Broad Chip Coverage

Suits developers and repair technicians who program AVR, PIC, MCU, EEPROM and BIOS chips and value automatic pin-contact detection and 74/54 CMOS 4000 series logic testing. Not for users who need support for chips outside the listed 15000+ database or who require a programmer with built-in voltage regulation for non-USB power sources.

Põhijooned

  • Program four devices simultaneously from one PC
  • USB port powers all chips without external supply
  • ICSP interface enables serial download and high-voltage parallel programming
  • Supports 15000+ chips including 40/44/48-pin large-capacity FLASH
  • Built-in over-voltage and four-level over-current protection prevents PC reset on short circuit

Tehnilised andmed

Selle toote kohta ei ole veel tehnilisi andmeid avaldatud.

Küsimused selle toote kohta

What USB port and space does the TL866II Plus need?

It draws all power from a single USB port and its small, high-density case fits on a crowded bench without extra cables or an external supply.

How do I set up the ICSP interface for serial programming?

Connect the unique ICSP header, select the target in the software, and start the serial download — skipping the pin-contact check is the step most users miss.

Which consumable parts will need replacement over time?

The 9 included adapters and the 40-pin ZIF socket see repeated insertion cycles; plan to swap them when pin contact becomes unreliable.
