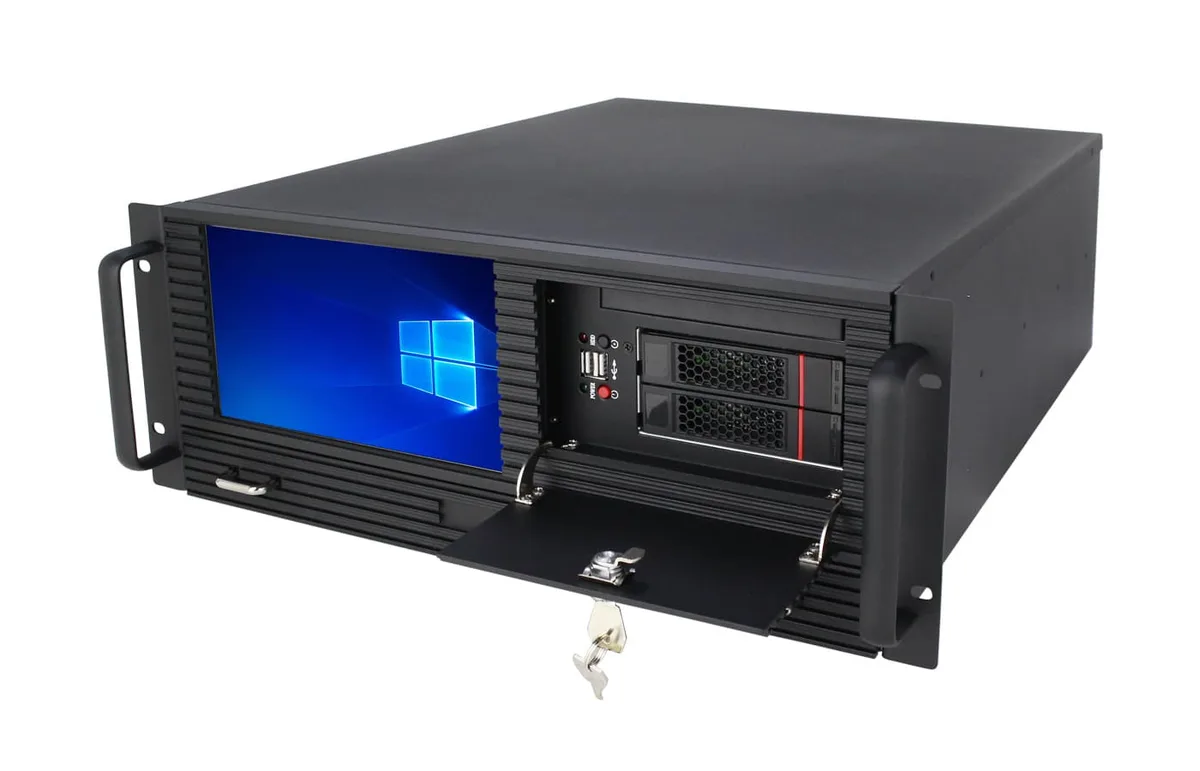

Black 4U rackmount chassis with 8.9 inch LCD touchscreen and front hot-swap drive bays

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 4U Rackmount Server Chassis with 8.9" LCD Touchscreen

SKU CH-T8JC-7VNG6

A 4U rackmount server chassis with an integrated 8.9-inch LCD touchscreen, 1024 × 600 resolution, two front hot-plug 3.5-inch drive bays, one 5.25-inch optical bay.

  • Chassis TypeRackmount
  • Form Factor4U
  • 9" LCD touchscreen simplifies local monitoring
  • 19" 4U rackmount form fits standard cabinets
  • Two front hot-swap 3.5" bays speed drive changes
  • Seven PCI slots give ample expansion room
  • Dual front USB 2.0 ports ease peripheral access

Industrial 4U rackmount with integrated LCD

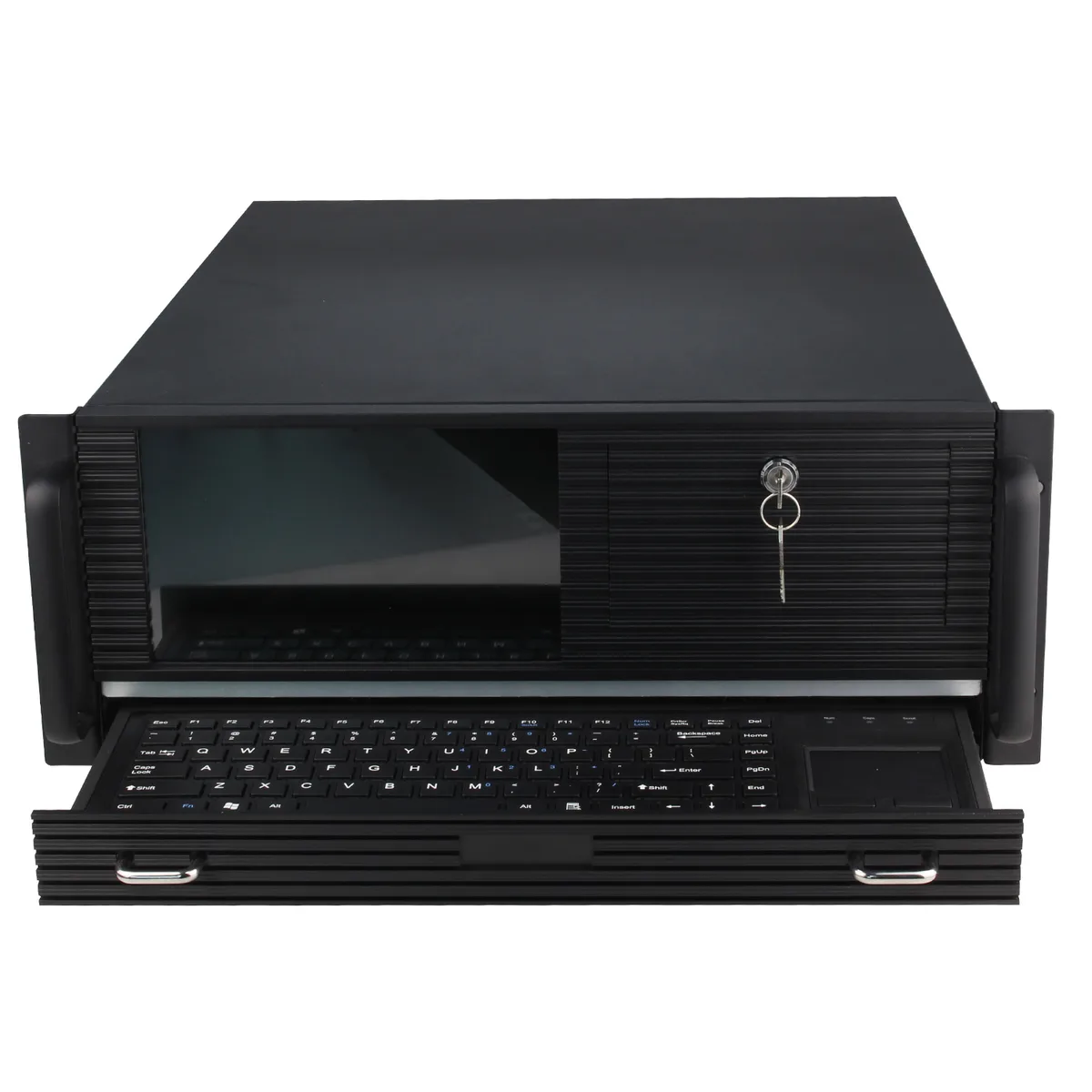

This 4U rackmount server chassis integrates an 8.9-inch LCD touchscreen with a 1024 by 600 resolution and a slim notebook keyboard with touchpad. It is built for industrial control, IoT and machine automation environments where a compact, self-contained monitoring station is required. The aluminium alloy and 1.2mm SGCC steel construction fits a standard 19-inch rack.

Motherboard and drive constraints

The chassis accepts motherboards up to 12 by 13 inches and provides seven PCI expansion slots. Storage is limited to two front hot-plug 3.5-inch bays that also accept 2.5-inch drives, one internal 3.5-inch or two 2.5-inch positions, and a single ultra-thin 5.25-inch optical drive bay. A two-disk SATA backplane handles the front bays.

Build details and daily implications

Two 80mm front fans and two 60mm rear fans provide airflow through the 550mm deep enclosure. Front access includes two USB 2.0 ports, power and reset switches, plus power and HDD LEDs. A 500mm VGA extension cable, screw bags and an accessory box are included. The unit ships in double cartons with corner protection.

Põhijooned

  • 9" LCD touchscreen simplifies local monitoring
  • 19" 4U rackmount form fits standard cabinets
  • Two front hot-swap 3.5" bays speed drive changes
  • Seven PCI slots give ample expansion room
  • Dual front USB 2.0 ports ease peripheral access

Tehnilised andmed

Chassis TypeRackmount
Form Factor4U

Küsimused selle toote kohta

How should I choose between the front hot-plug bays and the internal bays for my storage drives?

The two front bays accept 3.5" or 2.5" drives and connect through the included SATA backplane for hot-plug use, while the internal bay holds one 3.5" or two 2.5" drives without hot-plug capability.

What does the 8.9" 1024 × 600 LCD touchscreen provide when the chassis is mounted in a rack?

It gives a built-in console with touch input and an integrated keyboard and touchpad so you can manage the server directly without attaching external peripherals.

What does the front USB 2.0 interface limit in practice?

The two front ports operate at USB 2.0 speeds, so any connected device will run at that bandwidth.
