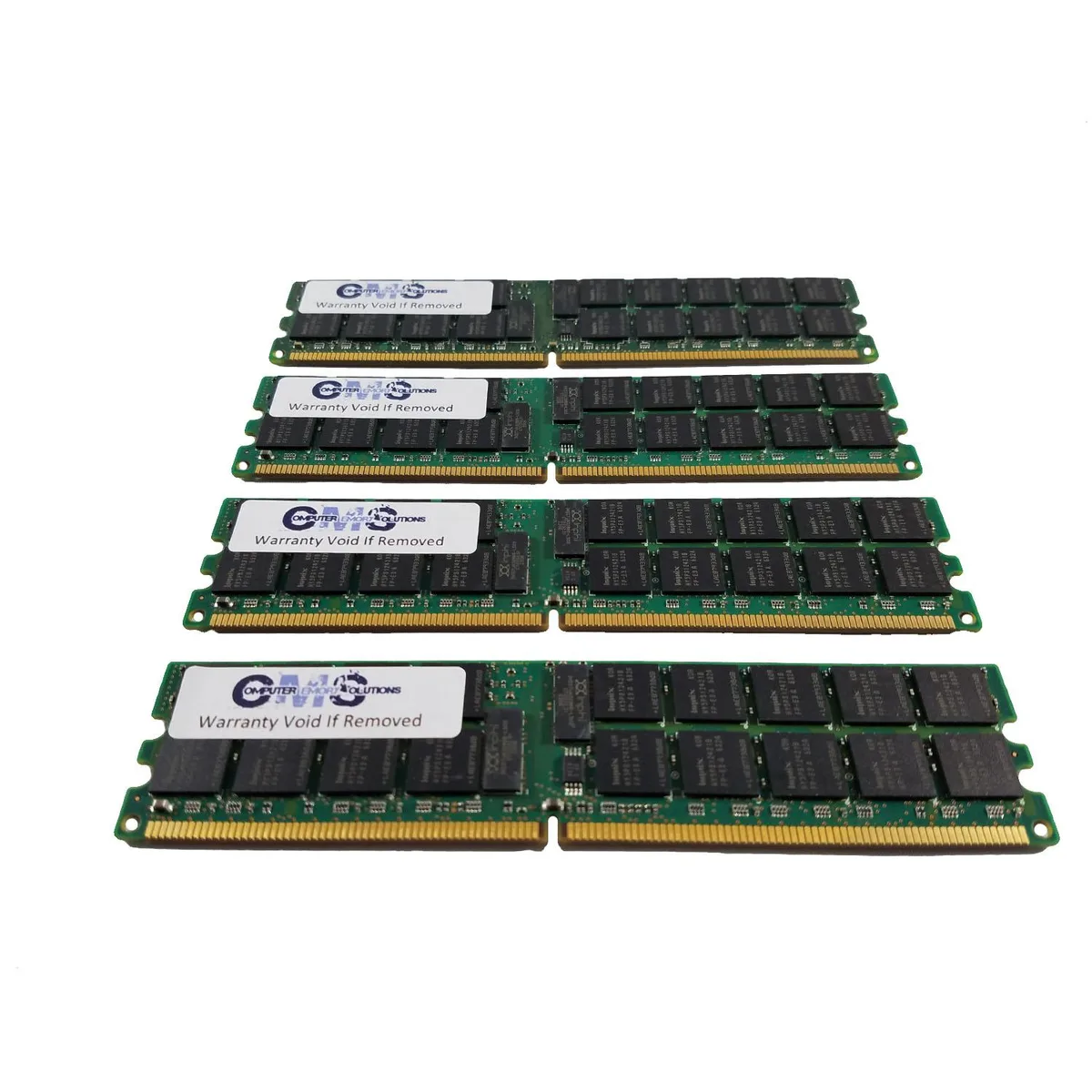

Four green DDR2 memory modules with gold contacts and black chips

Computer Memory Solutions

Computer Memory Solutions 16GB (4 x 4GB) DDR2 400 ECC Registered DIMM Dell PowerEdge 2800 CM512723200ECCREG2R4

SKU CH-NGEE-KGAEF

16 GB DDR2-400 ECC registered memory kit for Dell PowerEdge 2800 servers

  • Capacity16GB (4 x 4GB)
  • Type240-Pin DDR2 SDRAM
  • SpeedDDR2 400 (PC2 3200)
  • CAS LatencyCL3
  • Timing3-3-3
  • Voltage1.8V
  • 16 GB capacity across four 4 GB modules for server workloads
  • DDR2 400 speed with CL3 timing for stable throughput
  • ECC registered design detects and corrects data errors
  • Dual-rank 2Rx4 organisation maximises density per slot
  • Validated for Dell PowerEdge 2800 systems

16GB DDR2 ECC kit for PowerEdge 2800

This registered memory kit delivers 16 GB total capacity across four 4 GB modules. It is built specifically for the Dell PowerEdge 2800 server platform and uses DDR2 400 technology with ECC error correction.

Registered dual-rank design enables full capacity

Each module is a 2Rx4 registered DIMM, allowing the chipset to address all eight supported ranks. The registered buffer reduces electrical load on the memory controller, which is required for stable operation in this server.

240-pin DIMMs at 1.8 V with CL3 timing

The modules fit standard 240-pin DDR2 slots and operate at 1.8 volts with 3-3-3 latency. First DIMM can be populated alone, while additional memory must be added in matched pairs to maintain stability.

Istaknuto

  • 16 GB capacity across four 4 GB modules for server workloads
  • DDR2 400 speed with CL3 timing for stable throughput
  • ECC registered design detects and corrects data errors
  • Dual-rank 2Rx4 organisation maximises density per slot
  • Validated for Dell PowerEdge 2800 systems

Specifikacije

BrandComputer Memory Solutions
ModelCM512723200ECCREG2R4
Capacity16GB (4 x 4GB)
Type240-Pin DDR2 SDRAM
SpeedDDR2 400 (PC2 3200)
CAS LatencyCL3
Timing3-3-3
Voltage1.8V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderBased on Current Inventory (If Required Please Contact)
Compatible SystemDell Poweredge 2800
Package Content1 Memory RAM Stick

Pitanja o ovom artiklu

Will the 1.8V registered ECC DIMMs need any firmware updates or periodic reseating over their service life?

No firmware updates or scheduled reseating are required; the modules are validated for the Dell PowerEdge 2800 and carry a lifetime warranty from the manufacturer.

What stops me from adding more than the four 2Rx4 modules in this 16GB kit?

The PowerEdge 2800 chipset supports a maximum of eight ranks, and each 4GB DIMM uses two ranks, so the four modules already reach that limit.

How much heat and power should I expect from the full 16GB kit running continuously in a server chassis?

Each module operates at 1.8V with standard DDR2 400 timing; registered ECC DIMMs of this density typically draw only a few watts per stick and rely on normal server airflow for cooling.
