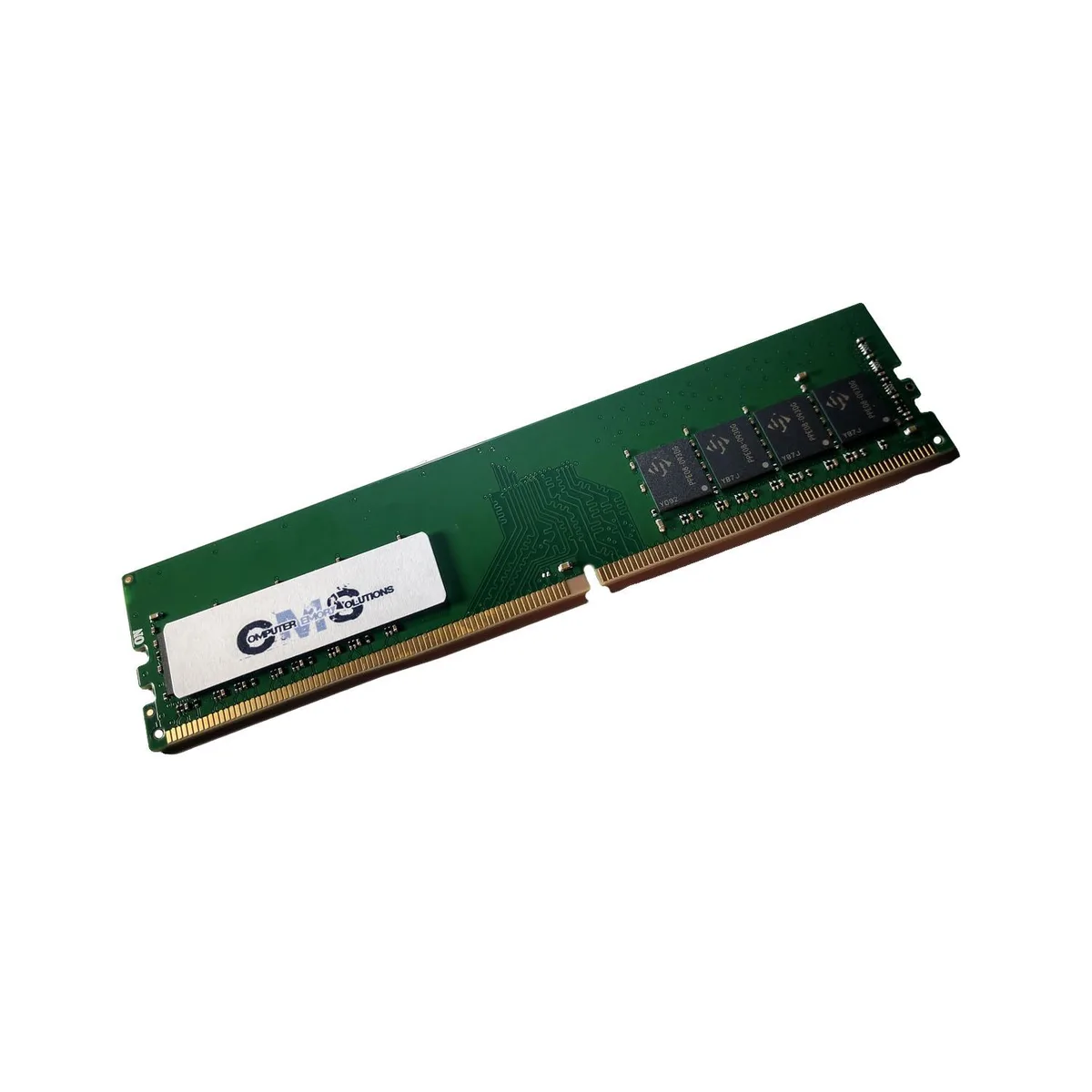

Green bare circuit board with black memory chips, gold edge connector, no heat spreader

Computer Memory Solutions

Computer Memory Solutions 16GB DDR4 2666 CL19 1.2V DIMM memory upgrade

SKU CH-WY88-AZEVC

A 16 GB DDR4 2666 CL19 DIMM validated for HP Pavilion 690 and TG01 desktops

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2666 (PC4 21300)
  • CAS LatencyCL19
  • Timing19-19-19
  • Voltage1.20V
  • 16 GB single module expands system memory to 32 GB maximum
  • DDR4 2666 speed matches supported platform specification
  • CL19 latency at 1.2 V for standard power draw
  • Unbuffered non-ECC 288-pin DIMM fits HP Pavilion 690 and TG01 desktops
  • Lifetime exchange warranty against manufacturing defects from CMS

HP Pavilion 690 & TG01 Upgrade

This 16 GB DDR4 DIMM is built for HP Pavilion 690-0022na, 690-0050nf and Pavilion Gaming TG01 desktops. It installs in a 288-pin slot and runs at 2666 MHz with CL19 timing. The single stick adds 16 GB to the two-slot motherboard.

Capacity Limit & Pairing

Systems capped at 32 GB with two sockets can use this module to reach half the maximum. Buyers needing the full 32 GB must add a second stick. Mixing brands is possible but all memory will run at the slowest installed speed.

DDR4 2666 CL19 1.2 V Spec

The module operates at 1.20 V, is unbuffered, non-ECC and uses a 2Rx8 rank. These electrical and timing parameters decide whether the motherboard will accept the stick without configuration changes.

Istaknuto

  • 16 GB single module expands system memory to 32 GB maximum
  • DDR4 2666 speed matches supported platform specification
  • CL19 latency at 1.2 V for standard power draw
  • Unbuffered non-ECC 288-pin DIMM fits HP Pavilion 690 and TG01 desktops
  • Lifetime exchange warranty against manufacturing defects from CMS

Specifikacije

BrandComputer Memory Solutions
ModelCM2048642666DIMM
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2666 (PC4 21300)
CAS LatencyCL19
Timing19-19-19
Voltage1.20V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemHP/Compaq Pavilion 690-0022na Gaming Desktop PC, 690-0050nf Gaming Desktop PC, Pavilion Gaming TG01-xxx
Package Content1 Memory RAM Stick

Pitanja o ovom artiklu

Does the single 16GB stick ship alone or with extra hardware?

The package contains one 288-pin DDR4 DIMM rated at 2666 MHz CL19 1.20V; no cables, screws or heat spreader are included.

Should I pick the 16GB module or add a second one for 32GB total?

The desktop has two slots and supports up to 32GB, so a second identical 16GB stick gives the maximum matched-pair capacity.

Will the CL19 2666 MHz rating actually run at that speed in my Pavilion 690-0022na?

The module is validated for that platform and will operate at 2666 MHz CL19 provided the CPU memory controller also supports 2666 MHz.
