Black 2U rackmount server chassis with red aluminum front bezel, two 5.25-inch bays, two 3.5-inch bays, USB ports, single 80mm fan

iStarUSA Inc.

iStarUSA Inc. D-200SEA-RD 2U Rackmount Server Chassis Red Bezel

SKU CH-A5BG-5ZJ14 MPN D-200SEA-RD

A 2U rackmount server chassis with two 5.25-inch and two 3.5-inch external drive bays, three expansion slots, front USB 2.0 ports, an 80 mm fan and a red aluminium bezel

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard Compatibility12 x 9.6 (ATX, microATX)
  • External 5.25" Drive Bays2

Model D-200SEA-RD

  • 2U rackmount form factor fits standard 19.00" cabinets
  • Aluminium and 1.2mm SECC steel construction keeps weight low
  • Two 5.25" and two 3.5" external bays hold up to four drives
  • Three expansion slots support PCI, PCI-X, AGP or PCI-Express cards
  • Front dual USB 2.0 ports plus power, HDD, temperature and fan indicators

2U rackmount chassis for ATX builds

The iStarUSA D-200SEA-RD is a 2U server chassis designed for ATX and microATX motherboards up to 12 x 9.6 inches. It suits compact rack deployments that need full-size I/O and room for multiple drives. The red aluminium front bezel gives the unit a distinctive appearance in a standard black rack.

Check motherboard depth and slot budget

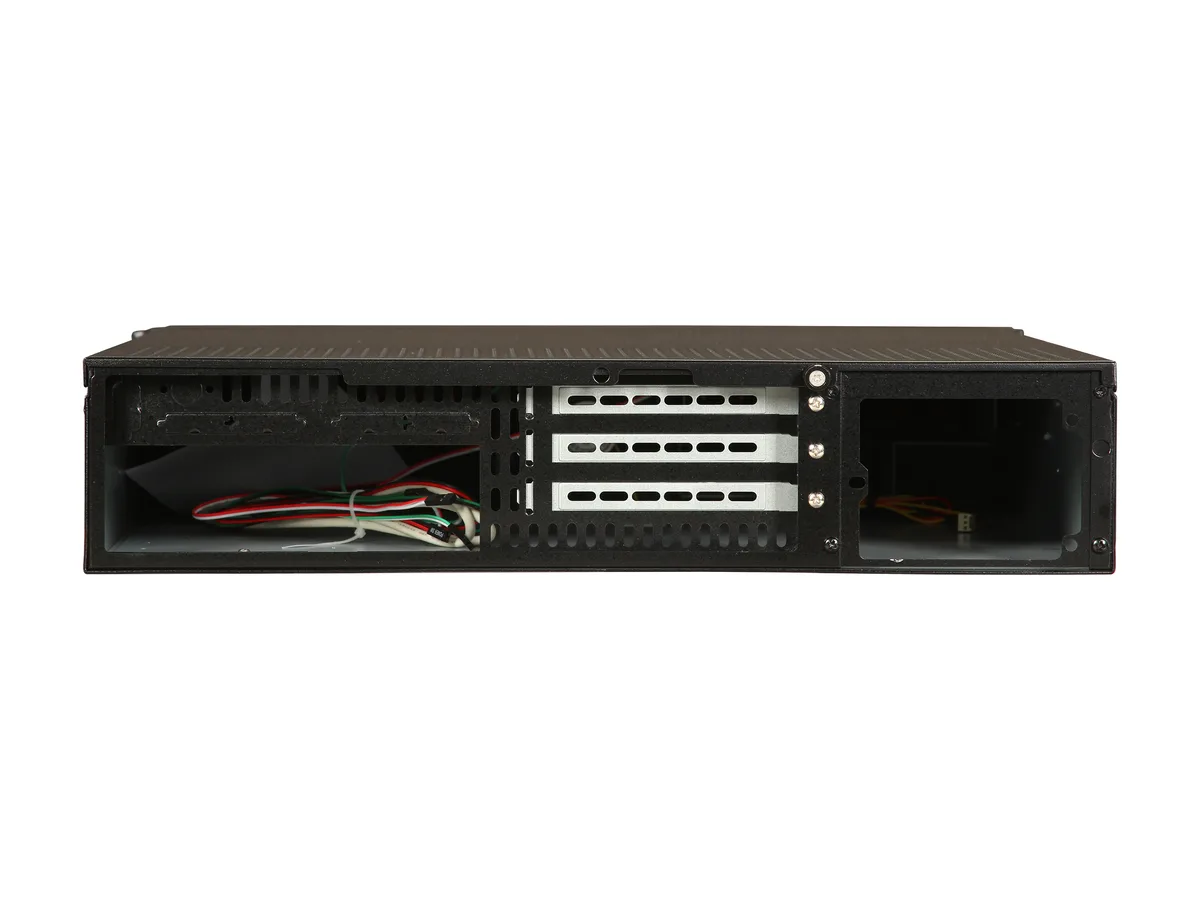

Verify that your board fits the 12 x 9.6 inch maximum and that three expansion slots are enough for your add-in cards. Only one 80 mm fan is included, so plan additional airflow if your components run hot. Two front USB 2.0 ports are provided for local access.

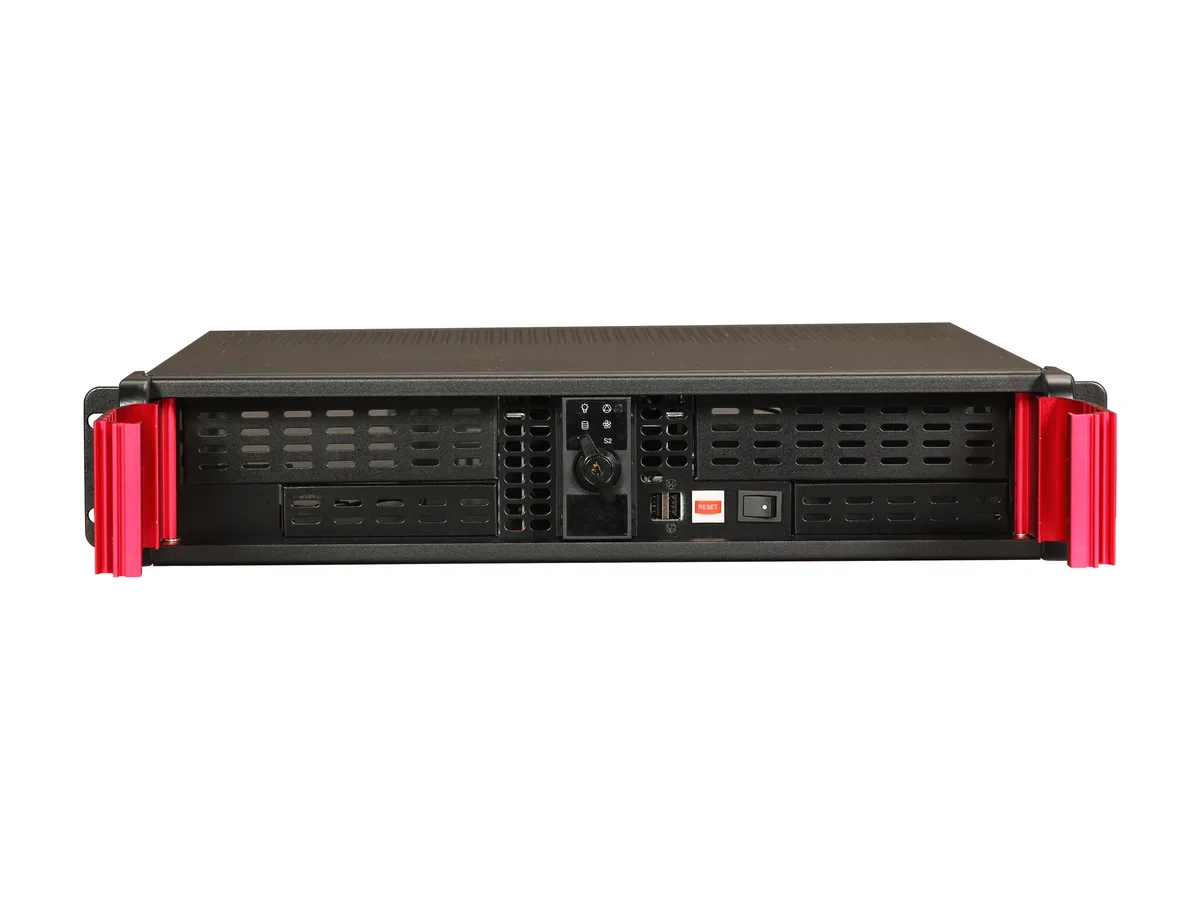

Steel frame with aluminium front bezel

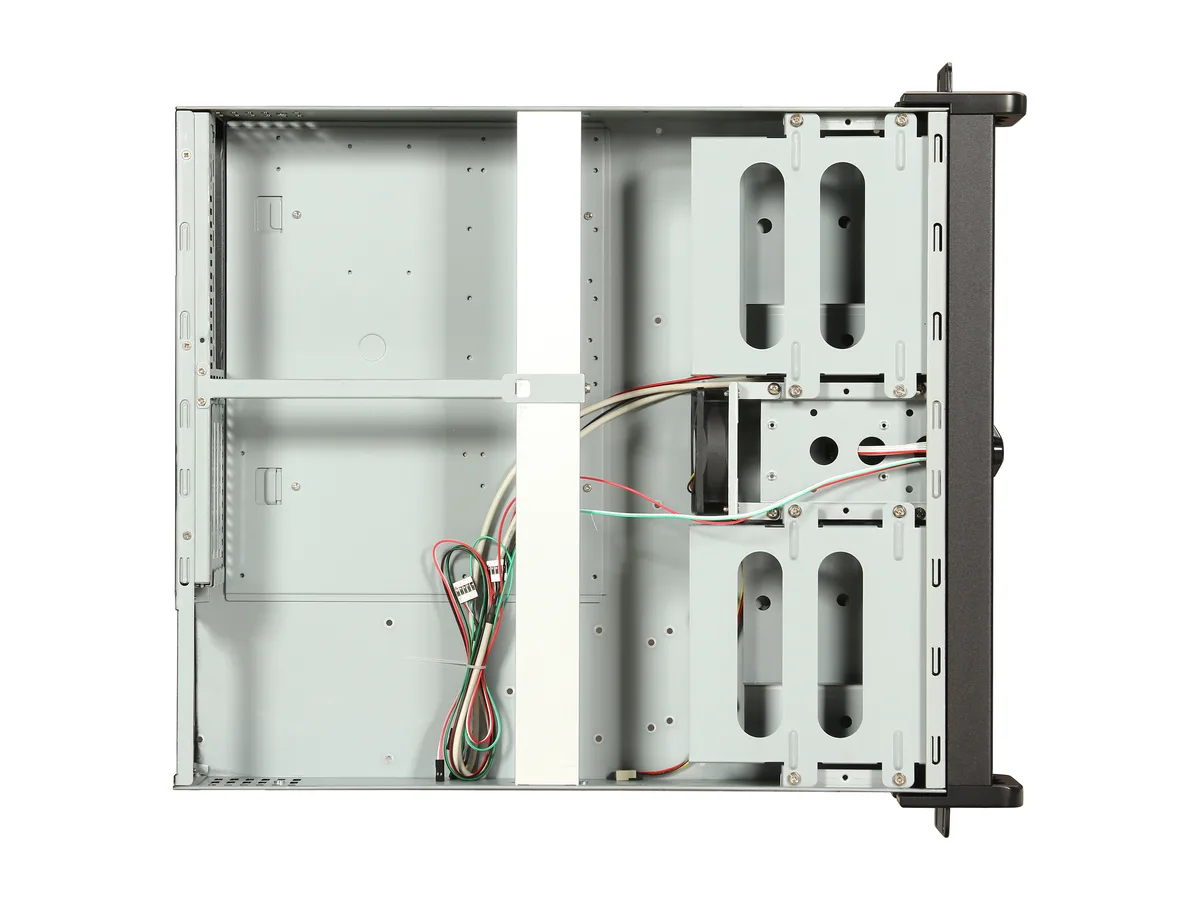

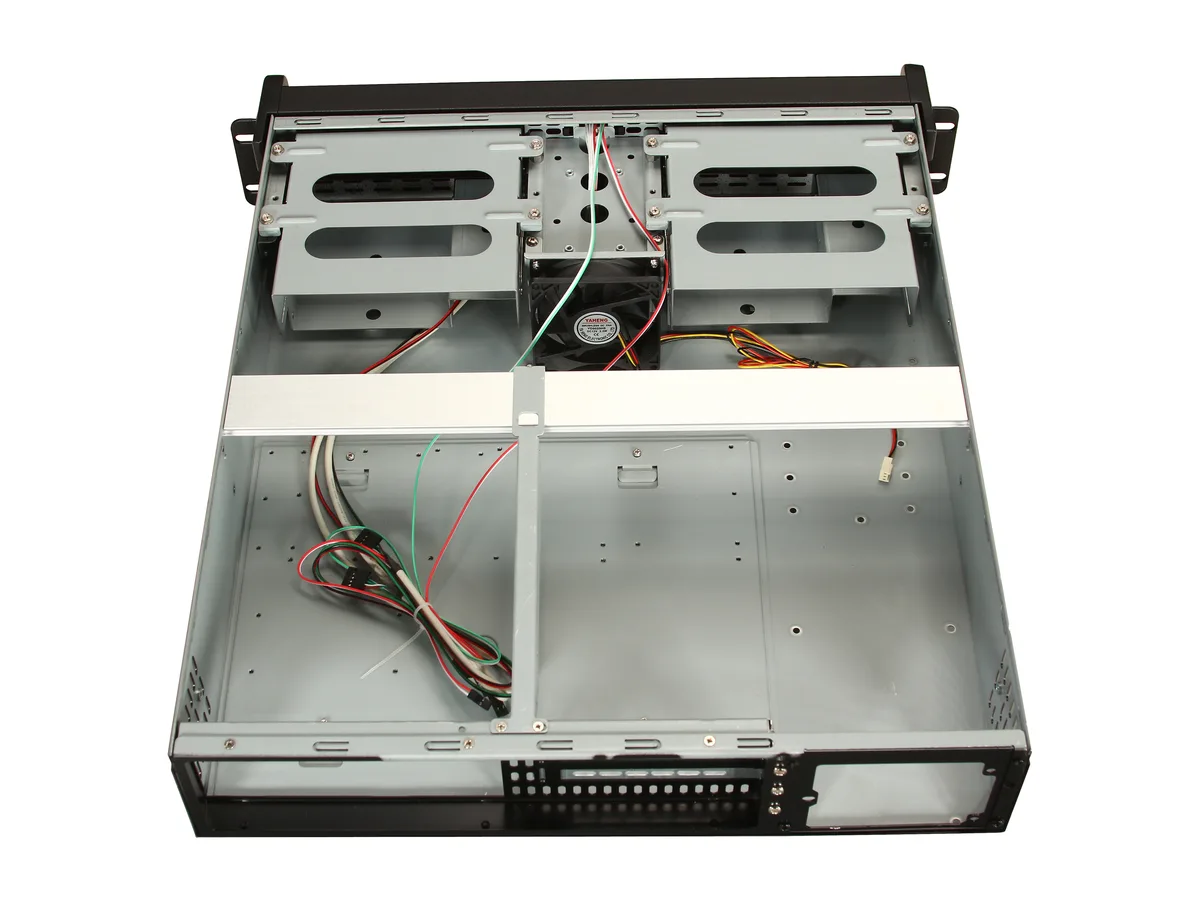

The main chassis uses 1.2 mm SECC zinc-coated steel, while the front bezel and handles are aluminium alloy. Two external 5.25 inch bays and two external 3.5 inch bays allow up to four drives in hot-swap cages. Front-panel LEDs show power, drive activity, temperature and fan status at a glance.

Istaknuto

  • 2U rackmount form factor fits standard 19.00" cabinets
  • Aluminium and 1.2mm SECC steel construction keeps weight low
  • Two 5.25" and two 3.5" external bays hold up to four drives
  • Three expansion slots support PCI, PCI-X, AGP or PCI-Express cards
  • Front dual USB 2.0 ports plus power, HDD, temperature and fan indicators

Specifikacije

BrandiStarUSA
ModelD-200SEA-RD
Chassis TypeRackmount
Form Factor2U
ColorBlack
Case MaterialAluminum / Steel
Motherboard Compatibility12 x 9.6 (ATX, microATX)
External 5.25" Drive Bays2
External 3.5" Drive Bays2
Expansion Slots3
Front Ports2 x USB 2.0
80mm Fans1
FeaturesRed Bezel
Material:
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Security: Front Bezel Key Lock
*Please contact sales person for low profile backplate option.
Dimensions19.00" x 3.50" x 20.80"
Težina pošiljke10.89 kg
Dimenzije pakiranja686 × 572 × 216 mm

Druge verzije ovog modela

još 4 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Does the D-200SEA-RD come with a power supply, and are mounting rails included?

The chassis ships without a power supply and without mounting rails; you must buy a standard ATX PSU and a compatible rail kit separately.

Should I choose this 2U model or a 1U chassis for an ATX motherboard?

A 1U chassis cannot fit a full-size ATX board; the D-200SEA-RD accepts ATX and microATX up to 12 x 9.6 inches, so the 2U height is required.

What does the 3.5-inch depth measurement mean for GPU clearance?

The 3.5-inch figure is the chassis height (2U); GPU length clearance is governed by the 20.80-inch depth and the three-slot limit, not by the height.
