Black aluminum and steel mini-ITX tower with three hot-swap 3.5-inch bays and red drive handles

iStarUSA Inc.

iStarUSA Inc. S-35-3M1RD server chassis 3 x 3.5" hot-swap mini-ITX tower

SKU CH-QCYT-S68WW MPN S-35-3M1RD

Holds three hot-swap 3.5" drives plus one 2.5" bay in a mini-ITX tower with a 120 mm fan and two USB 2.0 ports

  • Chassis TypeTower
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard CompatibilityMini ITX
  • Hot-Swap Drive Bays3 x 3.5"
  • Internal 2.5" Drive Bays1

Model S-35-3M1RD

  • Three hot-swap 3.5" bays give high-density storage
  • Mini-ITX motherboard support fits compact server builds
  • Red HDD handles provide quick visual drive identification

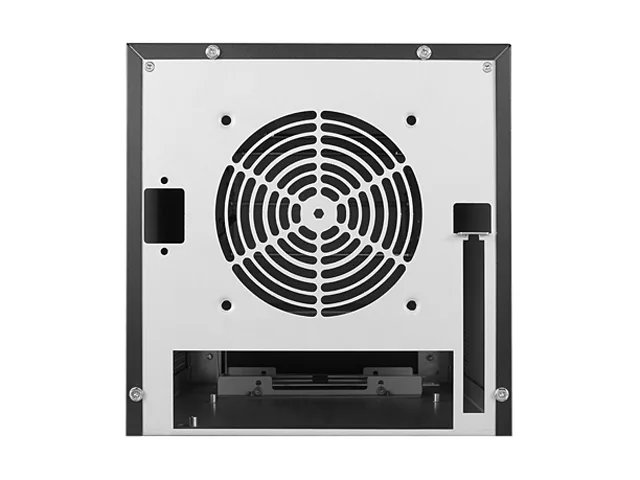

  • 120 mm fan included improves internal airflow
  • Front USB 2.0 ports allow easy external access

Compact tower for mini-ITX storage builds

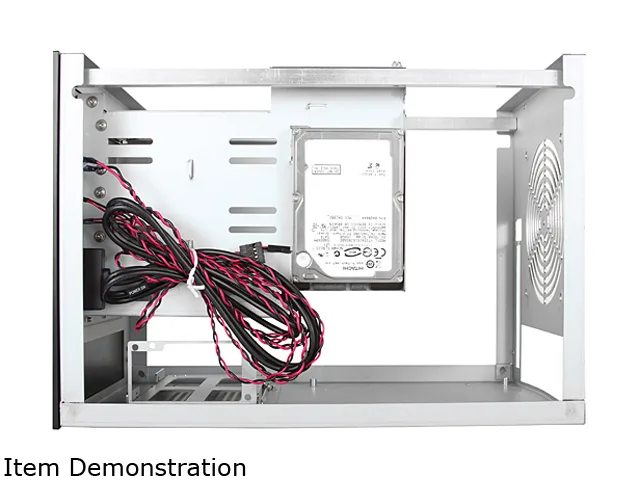

The iStarUSA S-35-3M1RD is a black aluminium-and-steel tower that accepts a mini-ITX motherboard and provides three hot-swap 3.5-inch drive bays plus one internal 2.5-inch bay. It targets users who need dense, accessible storage in a small footprint. A single expansion slot and two front USB 2.0 ports complete the basic I/O.

Before ordering, verify motherboard and power supply

Confirm the board is mini-ITX and that the chosen flex-form-factor power supply fits the chassis layout. Ensure the SATA or SAS backplane matches the 6.0 Gb/s drives you plan to use. The single expansion slot limits add-in cards to one device. No other drive form factors are supported in the hot-swap bays.

Thermals, noise and power in normal use

One 120 mm fan handles airflow through the front panel and drive cage. Noise level will depend on the fan model selected and the drive count installed. Power draw is determined by the motherboard, drives and any add-in card rather than the chassis itself. Adequate ventilation around the tower helps maintain stable temperatures.

Istaknuto

  • Three hot-swap 3.5" bays give high-density storage
  • Mini-ITX motherboard support fits compact server builds
  • Red HDD handles provide quick visual drive identification
  • 120 mm fan included improves internal airflow
  • Front USB 2.0 ports allow easy external access

Specifikacije

BrandiStarUSA
ModelS-35-3M1RD
Chassis TypeTower
ColorBlack
Case MaterialAluminum / Steel
Motherboard CompatibilityMini ITX
Hot-Swap Drive Bays3 x 3.5"
Internal 2.5" Drive Bays1
Expansion Slots1
Front Ports2 x USB 2.0
120mm Fans1
FeaturesRed HDD Handle
Sleek Front Panel with Power On Button
3x 3.5" Hotswap Bays
4mm Aluminum Front Panel
Support 6.0Gb/s SATA/SAS HDDs
First PVC Laminate Technical in NAS Chassis
Compatible with Flex Power Supply
Heavy Duty SECC Construction
Support Standard I/O Slot
Support mini-ITX Motherboard
Dimensions8.90" x 8.68" x 12.76"
Težina pošiljke8.17 kg
Dimenzije pakiranja325 × 226 × 221 mm

Druge verzije ovog modela

još 3 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Does the chassis come with drive trays and a power supply, or must they be purchased separately?

The unit includes three 3.5" hot-swap bays with trays and a single 120mm fan. A Flex ATX power supply is not included and must be bought separately.

Should I choose the 3.5" hot-swap bays or the single internal 2.5" bay for my main storage?

The three 3.5" hot-swap bays support 6.0Gb/s SATA or SAS drives and are designed for primary, high-capacity storage. The lone 2.5" bay is best reserved for an OS or cache drive.

What does the 6.0Gb/s SATA/SAS rating mean for actual drive speed in this tower?

The backplane supports up to 6.0Gb/s SATA or SAS throughput, so compatible hard drives will run at their full native speed without a bottleneck from the chassis.
