Small 1.69 inch square LCD module with pin header and driver chip visible

LORDWORLD

LORDWORLD 1.69inch LCD Display Module 240×280 SPI

SKU CH-TWYW-BJZ2T

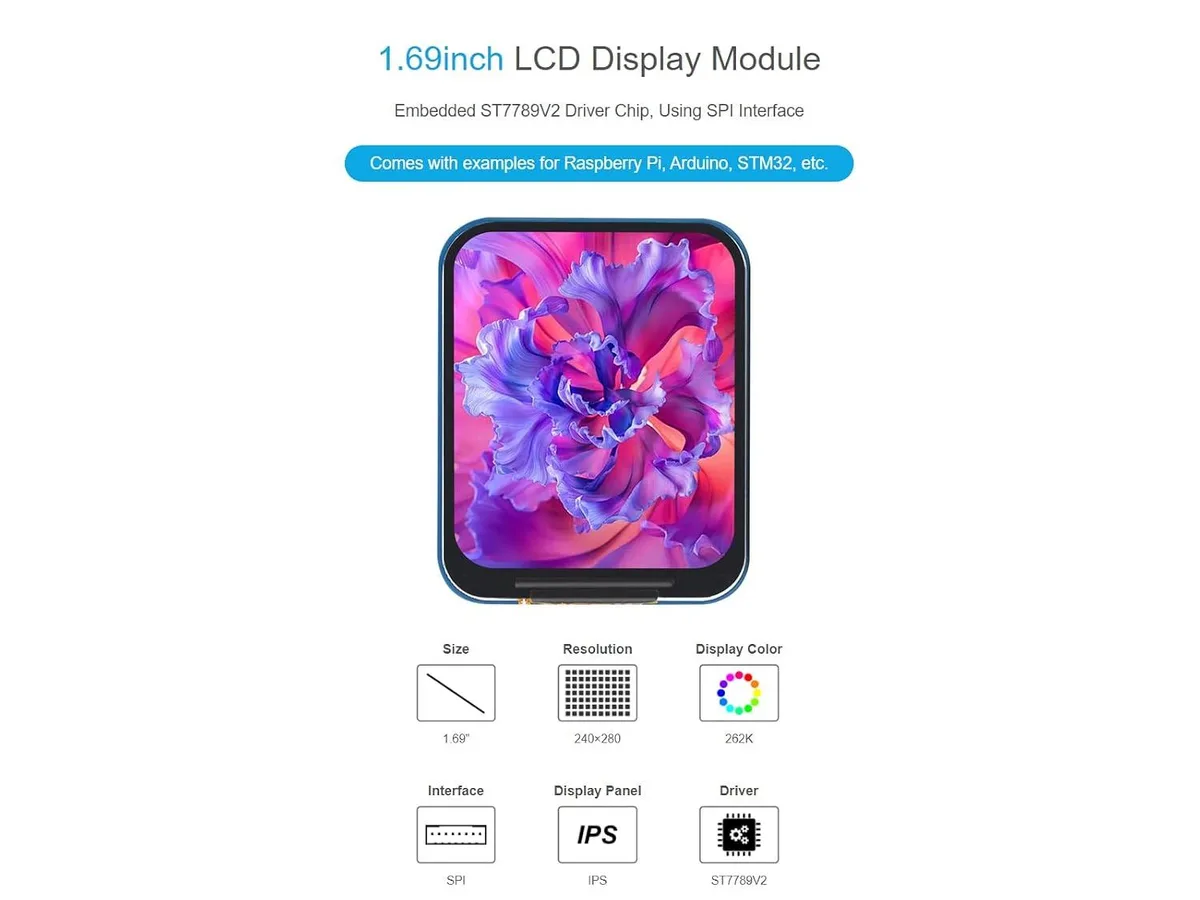

A 1.69 inch IPS LCD module with 240×280 resolution and 262K colours, driven by an ST7789V2 chip over SPI for Raspberry Pi, Arduino and STM32 projects

  • Sharp 240×280 IPS visuals on a compact 1.69 inch panel
  • 262K colours deliver vivid graphics for embedded interfaces
  • SPI interface keeps pin count low for Raspberry Pi Arduino STM32
  • ST7789V2 driver chip handles timing so firmware stays simple
  • Online examples speed up integration on Raspberry Pi Arduino STM32

Compact 1.69inch SPI display for embedded projects

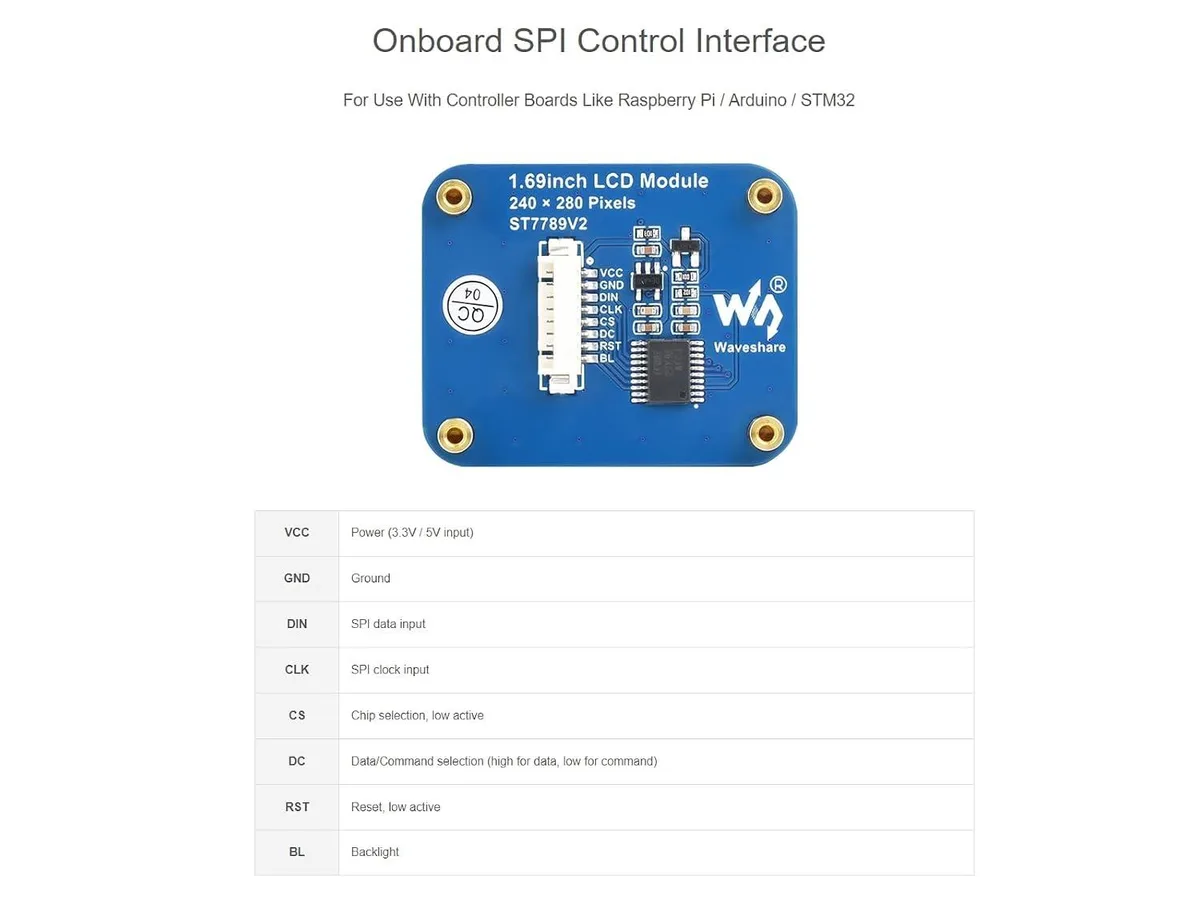

The LORDWORLD module combines a 1.69inch IPS panel with a 240×280 resolution and 262K colours, driven by an embedded ST7789V2 chip over a four-wire SPI bus. It targets hobbyists and engineers adding a small colour readout to Raspberry Pi, Arduino or STM32 boards without consuming many GPIO pins. Online example code for each platform is provided.

Makers needing a tiny status screen.

Developers building sensor dashboards, wearable prototypes or handheld instruments benefit from the sharp IPS viewing angles and minimal wiring. Projects that demand high refresh rates, full-motion video or a larger viewing area should consider a different panel because the SPI throughput and 1.69inch diagonal limit those uses.

Steady image quality during continuous operation

The IPS technology maintains consistent colour and contrast across wide viewing angles even when the module runs for long periods. Because the ST7789V2 driver handles pixel refreshing internally, the host controller only sends updates when content changes, keeping bus activity and heat low during sustained use.

Istaknuto

  • Sharp 240×280 IPS visuals on a compact 1.69 inch panel
  • 262K colours deliver vivid graphics for embedded interfaces
  • SPI interface keeps pin count low for Raspberry Pi Arduino STM32
  • ST7789V2 driver chip handles timing so firmware stays simple
  • Online examples speed up integration on Raspberry Pi Arduino STM32

Specifikacije

BrandLORDWORLD

Pitanja o ovom artiklu

Which controller boards can drive the 240×280 SPI display?

The module works with Raspberry Pi, Arduino and STM32 boards using the SPI interface.

Can I keep my existing 32-bit microcontroller and add this 1.69 inch IPS screen?

Yes, the ST7789V2 driver communicates over SPI, so a 32-bit MCU with an SPI port can control the 262K-colour panel.

How do I verify the 240×280 panel is operating correctly after wiring?

Run the supplied example code for your board; the screen should show the test pattern in 262K colours without artefacts.
