12.1 inch IP65 industrial panel PC with aluminium fanless chassis and projected capacitive touchscreen

partaker

Partaker A1 12.1" IP65 Industrial Panel PC i7-6500U 8GB DDR3 256GB SSD 1TB HDD

SKU CH-H4YX-836PB

12.1-inch IP65 industrial all-in-one with i7-6500U, 8GB DDR3, 256GB SSD plus 1TB HDD and 10-point capacitive touch

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • GPU/VGA TypeIntel HD Graphics 520
  • Memory Capacity8GB DDR3
  • SSD256GB

Memory Capacity 8GB DDR3

  • IP65 front protection withstands dust and water jets in harsh environments
  • Fanless aluminium alloy cooling runs silently for 24/7 reliability
  • 10-point projected capacitive touch handles 200 million touches
  • Dual storage with 256GB SSD and 1TB HDD for speed and capacity
  • Intel Core i7-6500U up to 3.10 GHz powers demanding industrial workloads

12.1-inch IP65 industrial panel PC

This 12.1-inch all-in-one panel PC combines an Intel Core i7-6500U processor with 8 GB of DDR3L memory, a 256 GB SSD and a 1 TB HDD. The front panel meets IP65 protection for dust and water resistance, making it suited for factory floors, kiosks or outdoor cabinets where a sealed touchscreen is required.

Sustained load on a fanless aluminium chassis

Passive cooling across the aluminium alloy body removes heat without moving parts, allowing silent 24/7 operation at ambient temperatures up to 50 °C with the SSD installed. The dual-drive layout keeps the operating system on solid-state storage while the mechanical drive handles bulk data, reducing thermal concentration during long write cycles.

Embedded mounting and industrial I/O

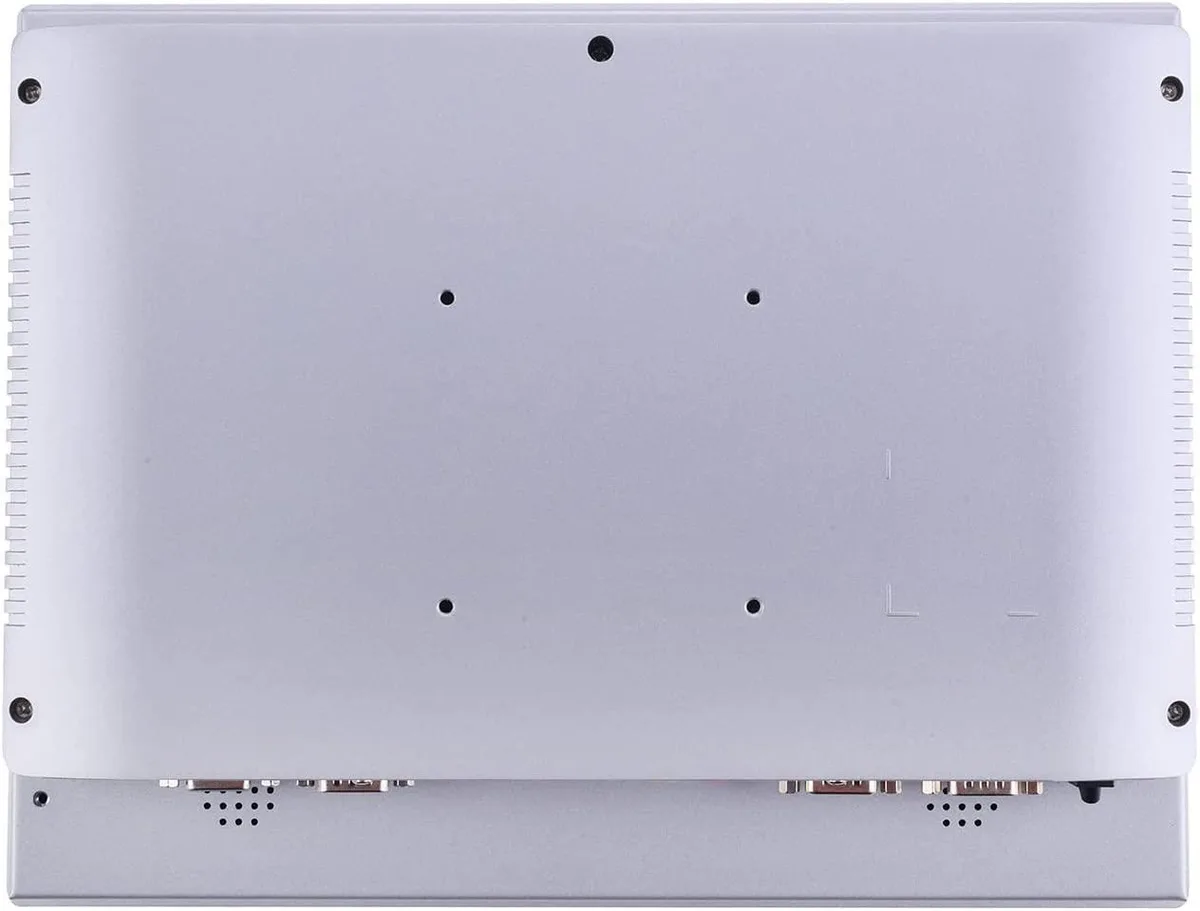

A 301 x 229 mm cut-out lets the unit sit flush in a panel, while VESA, desktop or cantilever brackets cover other mounting styles. Connectivity includes HDMI, VGA, two USB 3.0 ports, two USB 2.0 ports, dual LAN, two COM ports, audio in and out, plus a Mini PCIe slot with a SIM holder for wireless expansion.

Istaknuto

  • IP65 front protection withstands dust and water jets in harsh environments
  • Fanless aluminium alloy cooling runs silently for 24/7 reliability
  • 10-point projected capacitive touch handles 200 million touches
  • Dual storage with 256GB SSD and 1TB HDD for speed and capacity
  • Intel Core i7-6500U up to 3.10 GHz powers demanding industrial workloads

Specifikacije

ModelA1-PA-121TPC-CE6B(I76)-8G256G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR3
SSD256GB
HDD1TB
Screen Size12.1"
TouchscreenYes

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Does the fanless aluminium chassis stay cool enough for 24/7 use at 50 °C ambient?

The passive cooling system is rated for continuous operation up to 50 °C with the SSD installed, or 40 °C if the 1 TB HDD is active.

What external power source is required to run the unit?

It needs a 12 V DC supply; the box includes a 100-240 V AC adapter that delivers that voltage.

Will the HDMI and VGA outputs drive a second monitor at 1024 x 768?

Intel HD Graphics 520 supports both ports simultaneously, so a legacy VGA screen and a modern HDMI display can run together at the panel’s native resolution.
