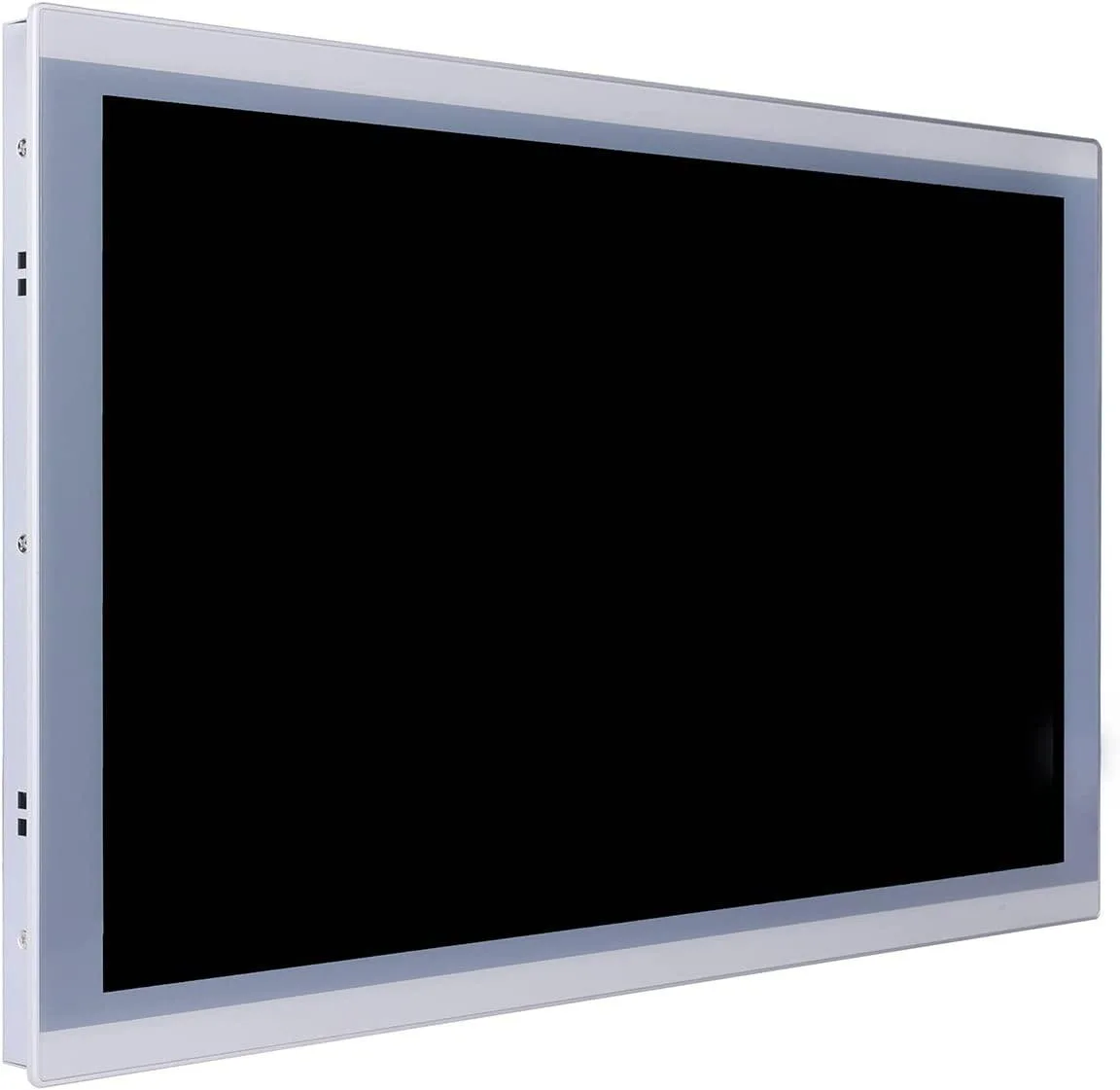

Silver 21.5 inch industrial all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

Partaker A17-PA-215TPC-CE5A(I53) 21.5" all-in-one PC

SKU CH-ZM7B-1SA7M

A 21.5" IP65-rated fanless panel PC with a resistive touchscreen, Intel Core i5, 4 GB DDR3, 64 GB SSD and Windows 10 Pro

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU Name1.70GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 4GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 64GB

  • 64GB
  • 256GB
  • 512GB

HDD None

  • None
  • 1TB

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • IP65 front panel resists dust and water jets
  • 5-wire resistive touch works in high-temperature environments
  • Fanless aluminium cooling runs silently 24/7
  • Intel Core i5 3rd Gen with 4 GB DDR3 and 64 GB SSD
  • Multiple I/O including HDMI, VGA, LAN, 2 COM and 4 USB 2.0

Industrial All-in-One PC for 24/7 Operation

The Partaker A17-PA-215TPC-CE5A(I53) is a 21.5-inch fanless panel computer built for continuous industrial use. Its IP65-rated front panel resists dust and water jets, while the aluminium chassis dissipates heat silently. The system ships with Windows 10 Pro installed and supports Linux Ubuntu for immediate deployment in factory automation, kiosk or monitoring roles.

5-Wire Resistive Touch Screen for Gloved Use

The display uses a high-temperature 5-wire resistive layer rated for 35 million touches and 80±5% transmittance. This technology registers input through gloves or styluses, unlike capacitive alternatives, making it the decisive specification for operators wearing protective gear. Typical resolution is 1920 x 1080 at 250 cd/m² brightness with a 1000:1 contrast ratio.

Fanless Cooling with 12 V DC Input

Passive aluminium alloy cooling eliminates moving parts, delivering silent operation and reduced maintenance in dusty environments. The unit accepts 100-240 V AC via an external adapter supplying 12 V DC, with an auto-recovery feature after power loss. Operating temperature ranges from 0 to 50 °C with the installed 64 GB mSATA SSD, extending to -20 °C for storage.

Istaknuto

  • IP65 front panel resists dust and water jets
  • 5-wire resistive touch works in high-temperature environments
  • Fanless aluminium cooling runs silently 24/7
  • Intel Core i5 3rd Gen with 4 GB DDR3 and 64 GB SSD
  • Multiple I/O including HDMI, VGA, LAN, 2 COM and 4 USB 2.0

Specifikacije

ModelA17-PA-215TPC-CE5A(I53)-4G64G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU Name1.70GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity4GB DDR3
SSD64GB
HDDNo
Screen Size21.5"
TouchscreenYes

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

How does the Intel Core i5 3rd Gen at 1.70GHz perform in an industrial panel PC?

The 1.70 GHz dual-core processor with Intel HD Graphics handles HMI, data logging and light edge-computing tasks in a fanless chassis; passive cooling keeps it silent while the 4 GB DDR3L and 64 GB mSATA SSD provide responsive boot and application load times for Windows 10 Pro or Ubuntu.

What does the IP65 front-panel rating cover on this 21.5" unit?

IP65 protects the resistive touch surface and bezel against dust ingress and low-pressure water jets from any direction, making the screen suitable for wash-down environments; the rating applies only to the front face when properly mounted in a panel cut-out.

What cut-out and depth are needed to flush-mount the 527.8 × 321 mm panel?

The panel requires a 522 × 315 mm rectangular opening and 54.5 mm clearance behind the front face; embedded buckle kits secure the 6 kg unit from the rear for flush, wall, desktop or cantilever installations.
