Gray 15-inch IP65 all-in-one with capacitive touchscreen

partaker

Partaker A23-I7 1165G7 16GB 256GB 15" IP65 all-in-one PC

SKU CH-V8YW-JM322

15-inch IP65 panel PC with Core i7-1165G7, 16GB DDR4, 256GB SSD, 10-point capacitive touch, fanless aluminium cooling and Windows 11 Pro for continuous industrial use

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • CPU NameIntel Core i7-1165G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i7 11th Gen

CPU Name Intel Core i7-1165G7

GPU Intel Iris Xe Graphics

Memory 16GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 64GB DDR4
  • 8GB DDR4

SSD 256GB

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • IP65 front protection withstands dust and water jets in harsh environments
  • Intel Core i7-1165G7 with 16GB DDR4 delivers high-speed multitasking for industrial automation
  • Fanless aluminum alloy cooling runs silent and dust-proof for continuous 24/7 operation
  • 15-inch 10-point capacitive touchscreen offers 200 million touch durability
  • 2x LAN, 2x COM, HDMI, VGA and 4x USB enable robust industrial connectivity

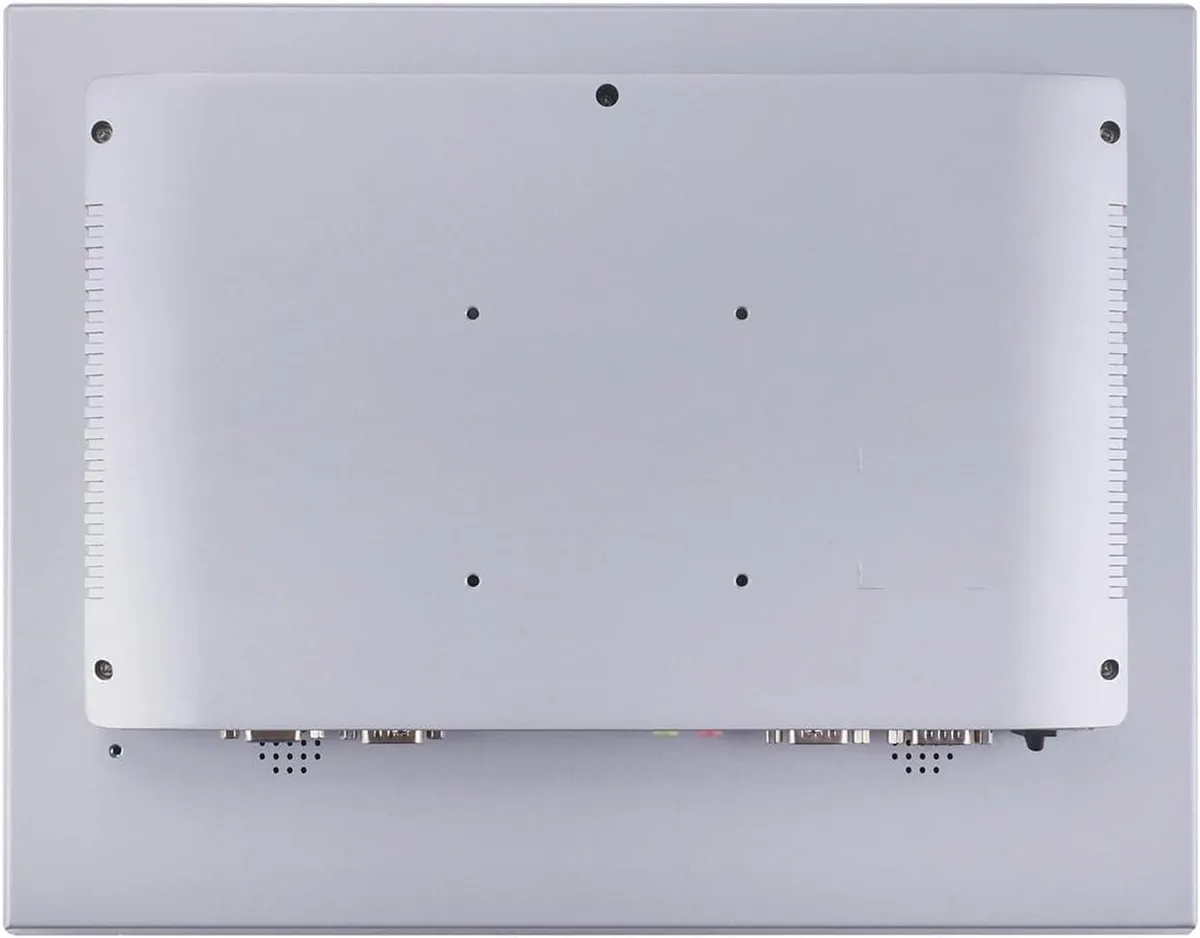

Industrial all-in-one with IP65 front panel

The Partaker A23-I7 1165G7 combines a 15-inch TFT LED display with 10-point projected capacitive touch and an Intel Core i7-1165G7 processor. Sixteen gigabytes of DDR4 memory and a 256GB SSD ship pre-installed with Windows 11 Pro. The fanless aluminium chassis is rated for continuous 24/7 operation in harsh environments.

Verify DC power and mounting cut-out before purchase

The unit requires a 12V DC input supplied by an included 100-240V AC adapter. Panel mounting demands a rectangular opening of 348 by 272 millimetres. Confirm that your enclosure provides this cut-out and that the 54mm overall depth clears internal obstructions. Operating temperature spans 0 to 50°C with the fitted SSD.

Integrates I/O and expansion for automation tasks

Two LAN ports, two COM ports, HDMI, VGA, four USB ports and audio jacks connect directly to PLCs, sensors and HMIs. An M.2 Key E slot accepts a WIFI6 module and a Key B slot with SIM holder supports 5G. A second M.2 socket plus a 2.5-inch SATA bay allow storage upgrades without external drives.

Istaknuto

  • IP65 front protection withstands dust and water jets in harsh environments
  • Intel Core i7-1165G7 with 16GB DDR4 delivers high-speed multitasking for industrial automation
  • Fanless aluminum alloy cooling runs silent and dust-proof for continuous 24/7 operation
  • 15-inch 10-point capacitive touchscreen offers 200 million touch durability
  • 2x LAN, 2x COM, HDMI, VGA and 4x USB enable robust industrial connectivity

Specifikacije

ModelA23-I7 1165G7-16G256G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
CPU NameIntel Core i7-1165G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity16GB DDR4
SSD256GB
HDDNo
Screen Size15"
TouchscreenYes

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Does the package include the 12V power cord and mounting hardware so I can install it immediately?

The packing list confirms the Partaker A23 panel, a 12V power cord, and embedded mounting kits are supplied for plug-and-play setup.

Should I choose the 16GB DDR4-3200 configuration or plan to expand to the 64GB maximum later?

The unit ships with 16GB DDR4-3200 across two SODIMM slots and supports up to 64GB, so you can start now and add matched modules later.

How does the Core i7-1165G7 with Iris Xe Graphics perform on the 1024x768 IP65 touchscreen in a fanless industrial chassis?

The 11th Gen i7 up to 4.70 GHz and Iris Xe drive the 15-inch 350 cd/m² panel smoothly, while aluminum alloy fanless cooling maintains 0–50°C operation without noise.
