Silver 13.3 inch all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

Partaker A3-PA-133TPC-CE5A(I53)-8G256G 13.3" all-in-one PC

SKU CH-PNEN-XQ1C2

13.3 inch industrial panel PC with IP65 front protection, Intel Core i5 3rd Gen, 8GB DDR3 and 256GB SSD, fanless aluminium cooling and resistive touchscreen

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • GPU/VGA TypeIntel HD Graphics
  • Memory Capacity8GB DDR3

CPU Type Intel Core i5 3rd Gen

GPU/VGA Type Intel HD Graphics

Memory Capacity 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

HDD None

Precrtane verzije postoje, ali nisu dostupne ovdje.

  • IP65 front protection resists dust and water jets in harsh environments
  • Fanless aluminium cooling runs silently for continuous 24/7 operation
  • 5-wire resistive touchscreen withstands 35 million touches at high temperatures
  • 1280×800 TFT LED panel provides 300 cd/m² brightness with wide 70° viewing angles
  • Intel Core i5 3rd Gen with 8 GB DDR3 and 256 GB SSD handles demanding industrial workloads

Industrial 13.3" Panel PC

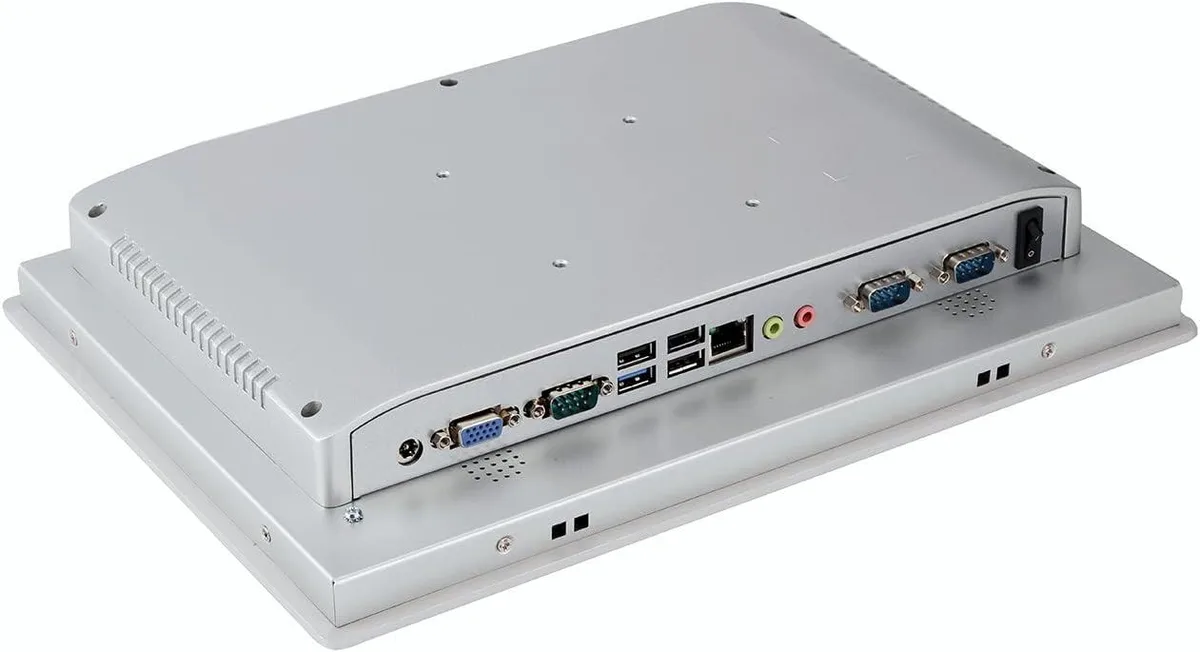

The Partaker A3-PA-133TPC-CE5A(I53)-8G256G is a fanless all-in-one system built around a 13.3 inch TFT LED display with IP65 front protection. It runs on a 3rd generation Intel Core i5 processor with integrated Intel HD Graphics and ships with Windows 10 Pro. The unit includes 8GB DDR3L memory and a 256GB mSATA SSD in a compact aluminium chassis rated for continuous operation.

Suited for embedded and wall-mounted deployments

This device fits integrators who need a sealed resistive touchscreen, dual COM ports and DC power input for automation, kiosk or industrial control tasks. The 0 to 50°C operating range with SSD and fanless cooling support 24/7 duty in dusty or wet environments. Buyers who require a capacitive multi-touch panel or a larger display diagonal should consider other platforms.

1280x800 resistive touchscreen with IP65 front

The 13.3 inch panel delivers 1280x800 resolution, 300 cd/m² brightness and an 800:1 contrast ratio. Its five-wire resistive layer is rated for 35 million touches and 80% transmittance at 550 nm. Viewing angles reach 70° left, 70° right, 55° top and 55° bottom. This specification defines whether the screen meets the visibility and durability needs of the target installation.

Istaknuto

  • IP65 front protection resists dust and water jets in harsh environments
  • Fanless aluminium cooling runs silently for continuous 24/7 operation
  • 5-wire resistive touchscreen withstands 35 million touches at high temperatures
  • 1280×800 TFT LED panel provides 300 cd/m² brightness with wide 70° viewing angles
  • Intel Core i5 3rd Gen with 8 GB DDR3 and 256 GB SSD handles demanding industrial workloads

Specifikacije

ModelA3-PA-133TPC-CE5A(I53)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size13.3"
TouchscreenYes

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

When will the 13.3" TFT LED backlight need replacement if the panel runs continuously?

The backlight is rated for a minimum of 20,000 hours; at 24/7 operation that equals roughly 2.3 years before brightness drops below usable levels.

What limits continuous 24/7 operation first — the 0-50 °C operating range or the fanless aluminium cooling?

The fanless aluminium chassis is designed for 24/7 use within the 0-50 °C range; exceeding that ambient temperature is the first hard limit.

How much heat and noise does the fanless design produce during all-day workloads?

With no moving fans the system is silent; the aluminium alloy body acts as a heatsink, keeping surface temperatures within the rated 0-50 °C envelope.
