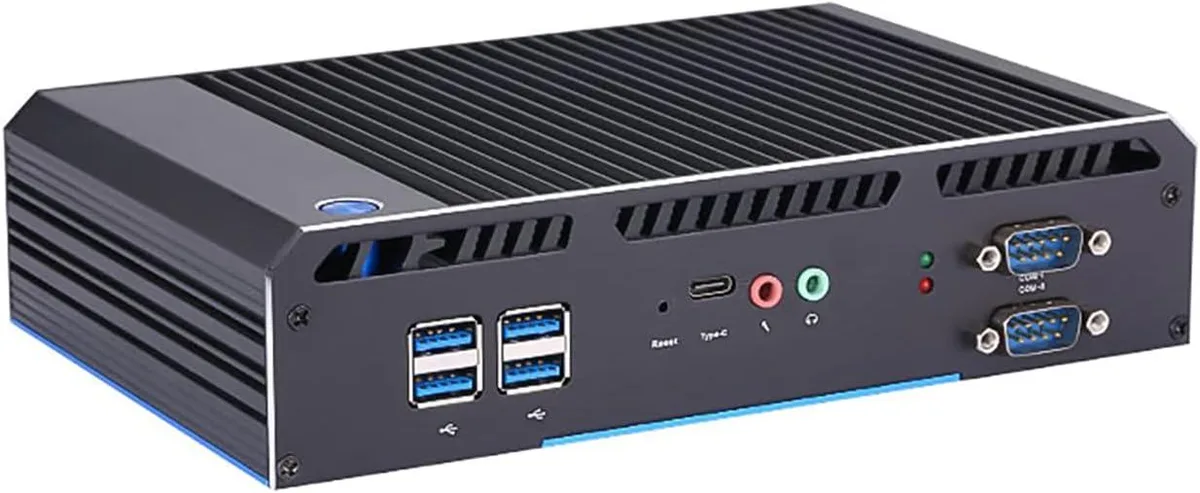

Compact black aluminium fanless mini PC, rectangular with rounded edges, multiple ports visible on front and rear faces

partaker

Partaker GF2 barebone mini PC i7 5500U 5600U 8G RAM 128G SSD

SKU CH-ZBGP-VSM0H

Fanless mini PC with an Intel Core i7 5th Gen processor, 8 GB RAM, 128 GB SSD, Windows 11 Pro and triple-display support

  • ColorBlack
  • CPU TypeIntel Core i7 5th Gen

CPU Type Intel Core i7-5500U

Group 8GB / 128GB SSD

  • Fanless passive cooling enables silent operation in noise-sensitive environments
  • Compact 197.4 x 126.3 x 47.5 mm chassis fits tight industrial spaces
  • Intel Core i7 5500U or 5600U processor delivers desktop-class performance
  • Triple display support via 2 x HDMI and VGA expands workspace

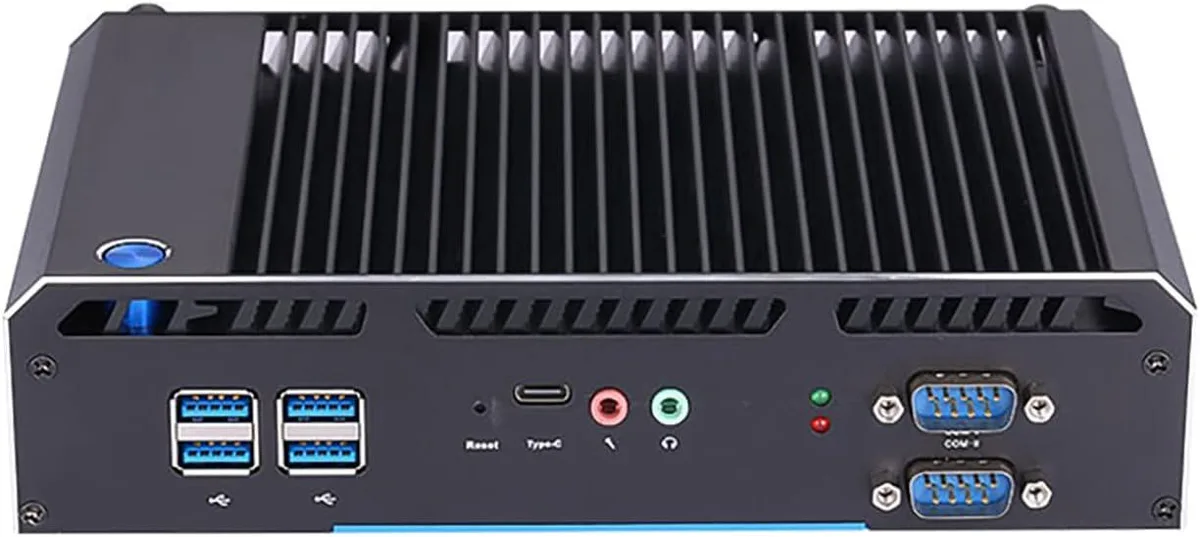

  • Extensive I/O including 2 x LAN, 2 x COM, 4 x USB 3.0 and Type-C connects diverse equipment

Industrial Fanless Mini PC

The Partaker GF2 is a fanless barebone system built around a 15 W Intel Core i7 5500U or 5600U processor. Its aluminium chassis measures 197.4 x 126.3 x 47.5 mm and weighs 1.2 kg, operating silently from -10 °C to 60 °C. Designed for industrial automation, digital signage or edge gateway roles, it ships with Windows 11 Pro 64-bit pre-installed and supports Windows 7, 10, 11 or Linux Ubuntu.

Memory and Storage Headroom

The unit arrives with 8 GB of DDR3L-1333/1600 memory in two SO-DIMM slots, expandable to 16 GB. Storage comprises a 128 GB mSATA SSD plus an empty 2.5 inch SATA bay for a second SSD or HDD. The mSATA drive handles the OS and lightweight workloads comfortably; heavier databases or local video caching will need the additional SATA drive. Triple-display output runs HDMI up to 2560 x 1600 @ 60 Hz and VGA up to 1920 x 1080 @ 60 Hz.

Bundled Mounting and Power Kit

A VESA mount, 12 V 5 A power supply with cord, screws, user manual and warranty card are included. The mount lets the GF2 attach behind a monitor or inside a cabinet, while the wide-range 100-240 V AC adapter supports optional 19-36 V DC input for vehicle or industrial power rails. Bundled software is limited to the pre-loaded OS; PXE boot, Wake-on-LAN and auto power-on are firmware features, not extra applications.

Istaknuto

  • Fanless passive cooling enables silent operation in noise-sensitive environments
  • Compact 197.4 x 126.3 x 47.5 mm chassis fits tight industrial spaces
  • Intel Core i7 5500U or 5600U processor delivers desktop-class performance
  • Triple display support via 2 x HDMI and VGA expands workspace
  • Extensive I/O including 2 x LAN, 2 x COM, 4 x USB 3.0 and Type-C connects diverse equipment

Specifikacije

ColorBlack
CPU TypeIntel Core i7 5th Gen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Will the i7 5500U or 5600U in this barebone work with my existing DDR3L-1333 or DDR3L-1600 SO-DIMM modules?

Yes, the board has two SO-DIMM slots that accept DDR3L-1333 or DDR3L-1600 memory up to 16 GB total, so your current sticks can be reused if they match those speeds.

How can I verify the passive cooling is keeping the 15 W TDP processor within safe limits after installation?

Monitor CPU temperatures in the OS; the fanless design is rated for continuous operation from -10 °C to 60 °C ambient, so sustained loads should stay inside that envelope.

What comes in the box and which storage drives must I supply myself?

The package includes the GF2 unit, VESA mount, 12 V 5 A power supply, power cord, manual, screws and warranty card; you must add an mSATA SSD and/or a 2.5-inch SATA SSD or HDD for storage.
