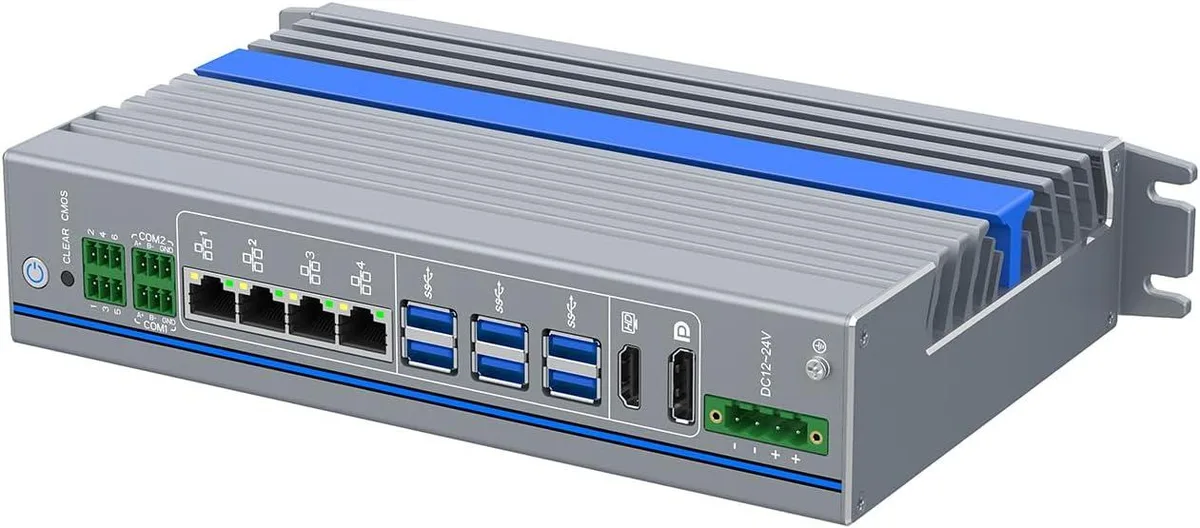

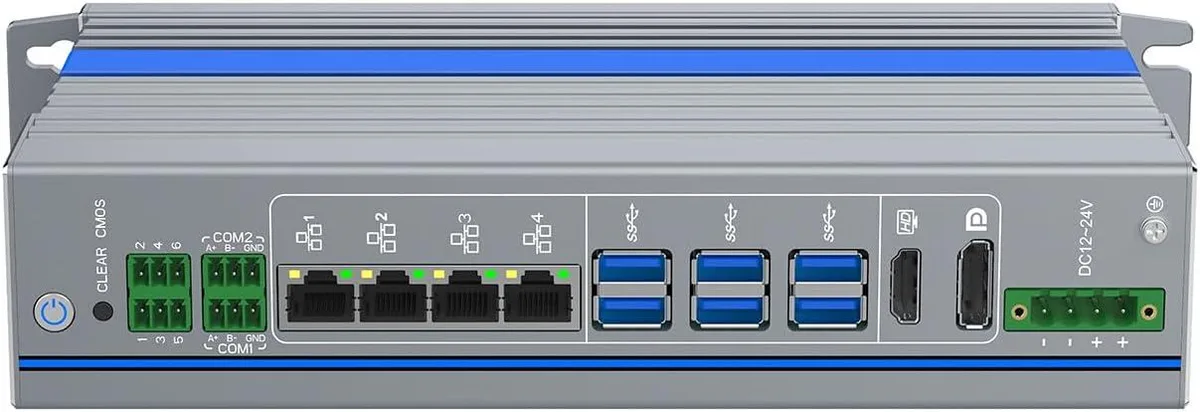

Compact gray aluminium fanless mini PC, book-style vertical form factor, 265 x 146 x 50 mm

partaker

partaker I24 i7-12700T 16GB 256GB barebone mini PC

SKU CH-9PKY-4X1FH

Fanless aluminium mini PC with 12-core i7-12700T, 16 GB DDR5, 256 GB storage, four Gigabit LAN ports, dual 4K video outputs, two isolated RS-485 ports and 12-24 V Phoenix power for industrial use

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I24 Q670 I7 12700T 16GB RAM / 256GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Intel Core i7-12700T delivers 12 cores and 20 threads up to 4.70 GHz
  • Dual DDR5 4800 SODIMM slots support up to 64 GB memory
  • Four Gigabit LAN ports plus two optically isolated RS-485 links
  • Dual 4K 60 Hz outputs via HDMI and DisplayPort

Industrial Barebone with i7-12700T

The Partaker I24 is a fanless industrial barebone mini PC built around an Intel Core i7-12700T processor with 12 cores and 20 threads. It ships with 16 GB of DDR5 4800 MT/s memory and a 256 GB M.2 SSD. The aluminium chassis operates silently from -20 °C to 50 °C and supports 24/7 duty in automation, medical or logistics environments.

Verify Power, Mounting and Expansion Needs

Confirm your site can supply 12 V to 24 V DC through the four-pin Phoenix terminal; the included adapter accepts 100 V to 240 V AC. Check that the 265 x 146 x 50 mm book-style dimensions suit your DIN-rail, wall-mount or desktop plan. Validate whether you need the mini PCIe slot for 4G or Wi-Fi, the Nano SIM tray, or the optional CAN module before ordering.

Suits Rugged Edge Deployments.

This unit fits integrators who need dual 4K 60 Hz outputs, quad Gigabit LAN, two optically isolated RS-485 ports and six USB 3.0 ports in a sealed, fanless enclosure. Buyers who want consumer features such as built-in Wi-Fi, Bluetooth, audio jacks or a pre-installed Windows licence should look at a different class of device.

Istaknuto

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Intel Core i7-12700T delivers 12 cores and 20 threads up to 4.70 GHz
  • Dual DDR5 4800 SODIMM slots support up to 64 GB memory
  • Four Gigabit LAN ports plus two optically isolated RS-485 links
  • Dual 4K 60 Hz outputs via HDMI and DisplayPort

Specifikacije

ColorGray
CPU TypeIntel Core i7 12th Gen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Does the barebone include the power supply and mounting hardware, or must I buy them separately?

The packing list shows the I24 unit, a power supply, a power cord and a book-style wall mount, so no extra purchase is needed for basic operation.

With two SODIMM slots supporting up to 64 GB, should I populate one or both slots for best performance?

Both slots accept DDR5 4800 MT/s modules; using two modules enables dual-channel bandwidth while staying within the 64 GB maximum.

How does the 35-69 W TDP affect sustained workloads in a fanless chassis rated to 50 °C?

The all-aluminium body passively dissipates heat across the full TDP range, allowing continuous 24/7 operation at up to 50 °C ambient without throttling.
