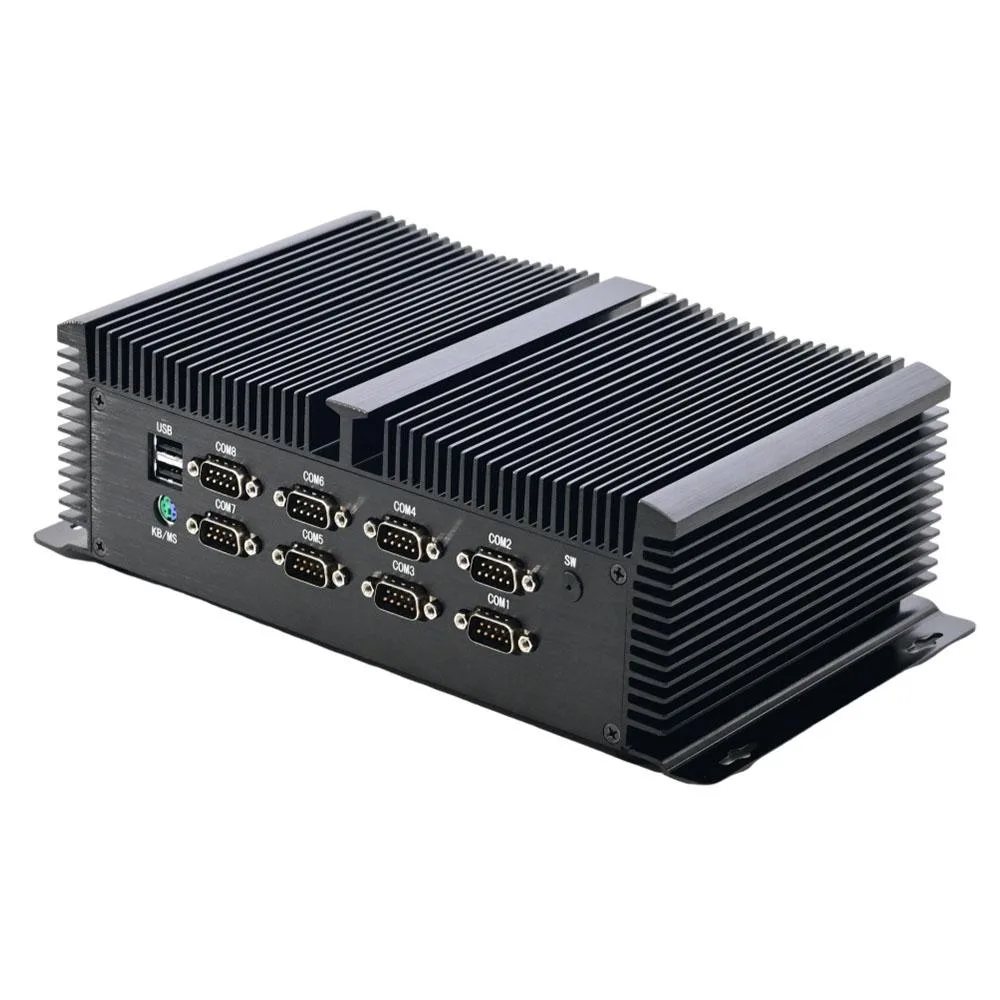

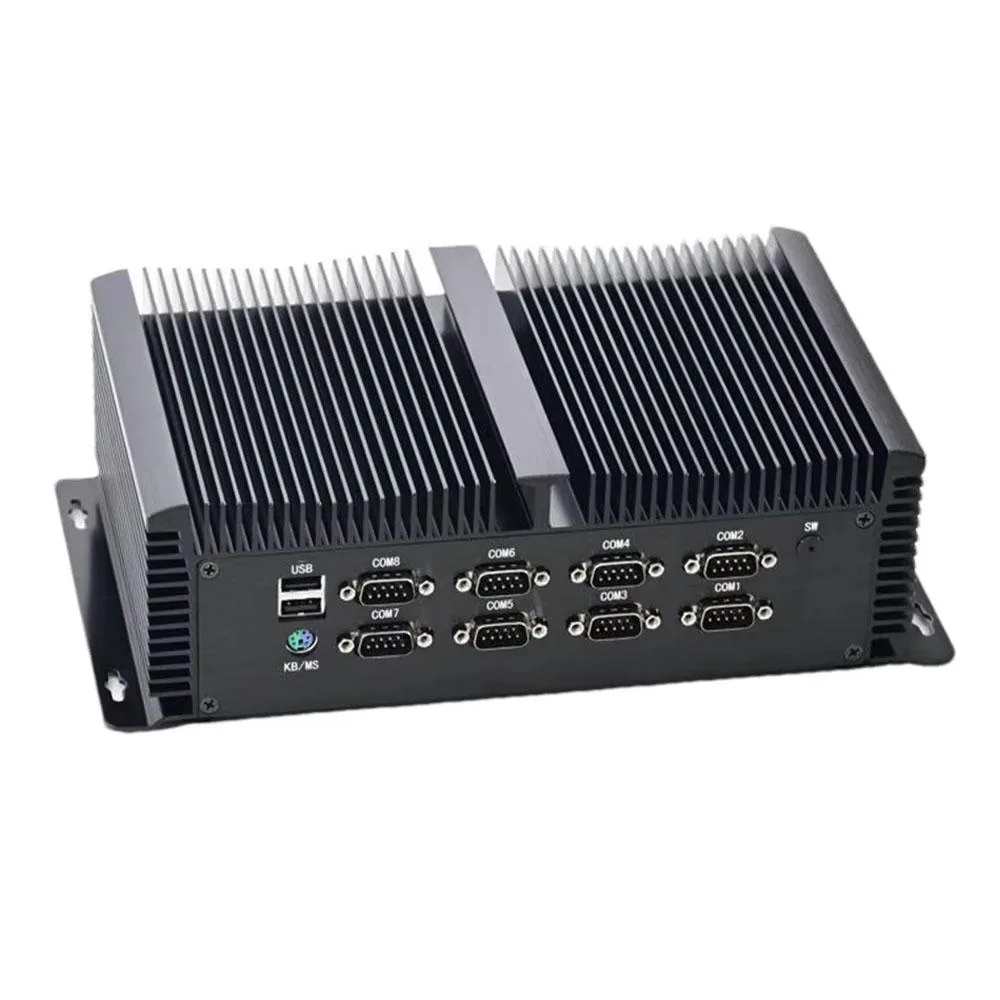

Black fanless aluminium mini PC with mounting ears, 255 x 155 x 80 mm

partaker

Partaker I6 i7-1255U 16GB 256GB barebone mini PC

SKU CH-F3T9-FT0HG

Fanless industrial mini PC with an Intel Core i7-1255U, 16 GB DDR5, 256 GB storage, triple 2.5 GbE LAN, eight serial ports and triple-display output

  • ColorBlack
  • CPU TypeIntel Core i7 12th Gen

CPU Type Intel Core i7-1255U

Group 16GB RAM / 256GB SSD

  • Fanless aluminium chassis runs 24/7 from -10°C to 60°C
  • Triple Intel 2.5G LAN plus eight COM ports for industrial networking
  • Triple display via two HDMI 1.4 and one DP 1.4
  • 16 GB DDR5 and 256 GB NVMe ready for immediate deployment
  • 45 W TDP with wall-mount ears fits tight control cabinets

Industrial barebone with i7-1255U

The Partaker I6 is a fanless mini PC built around an Intel Core i7-1255U processor with 16GB of DDR5 memory and a 256GB NVME SSD. It targets industrial automation, edge computing and digital-signage deployments that need serial connectivity and triple independent displays in a compact aluminium chassis.

Check power, mounts and expansion

The unit ships with a 19V 5A DC adapter that accepts 100-240V AC input, so verify your rack or wall outlet can supply that connector. Two SO-DIMM slots and two M.2 2280 bays are populated; the remaining SATA 3.0 port and mini-PCIe half and full slots are open for additional storage or wireless modules. Mounting ears are integrated, but long screws for wall installation are optional.

Fanless thermals and 45W TDP

A full aluminium shell dissipates heat passively, enabling continuous 24/7 operation across an operating range of -10°C to 60°C. The 45W TDP means no moving parts, silent running and low power draw under typical industrial workloads. Intel i226 2.5G LAN controllers and the i7-1255U maintain performance without active cooling.

Istaknuto

  • Fanless aluminium chassis runs 24/7 from -10°C to 60°C
  • Triple Intel 2.5G LAN plus eight COM ports for industrial networking
  • Triple display via two HDMI 1.4 and one DP 1.4
  • 16 GB DDR5 and 256 GB NVMe ready for immediate deployment
  • 45 W TDP with wall-mount ears fits tight control cabinets

Specifikacije

ColorBlack
CPU TypeIntel Core i7 12th Gen

Druge verzije ovog modela

još 5 u istoj seriji

Ista obitelj, različita memorija, hladnjak ili frekvencija — usporedite prije kupnje.

Pitanja o ovom artiklu

Does the barebone include the 16 GB DDR5 and 256 GB NVME or must they be bought separately?

The unit ships with 16 GB DDR5 memory and a 256 GB NVME SSD already installed, so no separate purchase is needed for those components.

Which memory and storage versions does the I6 support for future upgrades?

Two SO-DIMM DDR5 slots accept 8 GB, 16 GB, 32 GB or 64 GB modules; two M.2 2280 slots take NVME SSDs and one SATA 3.0 port supports SATA drives.

What does the 4.70 GHz turbo figure mean when the fanless chassis is running a sustained industrial workload?

The i7-1255U can reach 4.70 GHz on short bursts, but the passively cooled aluminum case will throttle clocks during prolonged heavy loads to stay within the 45 W TDP.
