Small rectangular PCB camera module with Type-C connector and wide-angle lens

Weinandianzi

Weinandianzi WN-L2306K360M-0234 U3 AR0234 USB3.0 120FPS Global Shutter Camera Module

SKU CH-KM7A-ATK47

A 1/2.6-inch CMOS module captures 1920×1080 video at 120 fps global shutter over USB3.0 Type-C with 100° fixed-focus view

  • TypeOther
  • Quantity1
  • SpecificationsAR0234 USB3.0 Camera Module
  • Compatibility1/2.6-Inch AR0234 CMOS
  • Features2MP HD 1920x1080 1080P AR0234 USB3.0 Camera Module 120FPS
  • 2MP HD 1920x1080 resolution captures detailed documents
  • 120FPS global shutter freezes fast motion without distortion
  • 100° field of view covers wide scenes in one frame
  • USB3.0 Type-C interface delivers high-speed data and power
  • MJPG, YUY2 and H.264 output formats suit varied workflows

Compact USB3.0 Camera Module

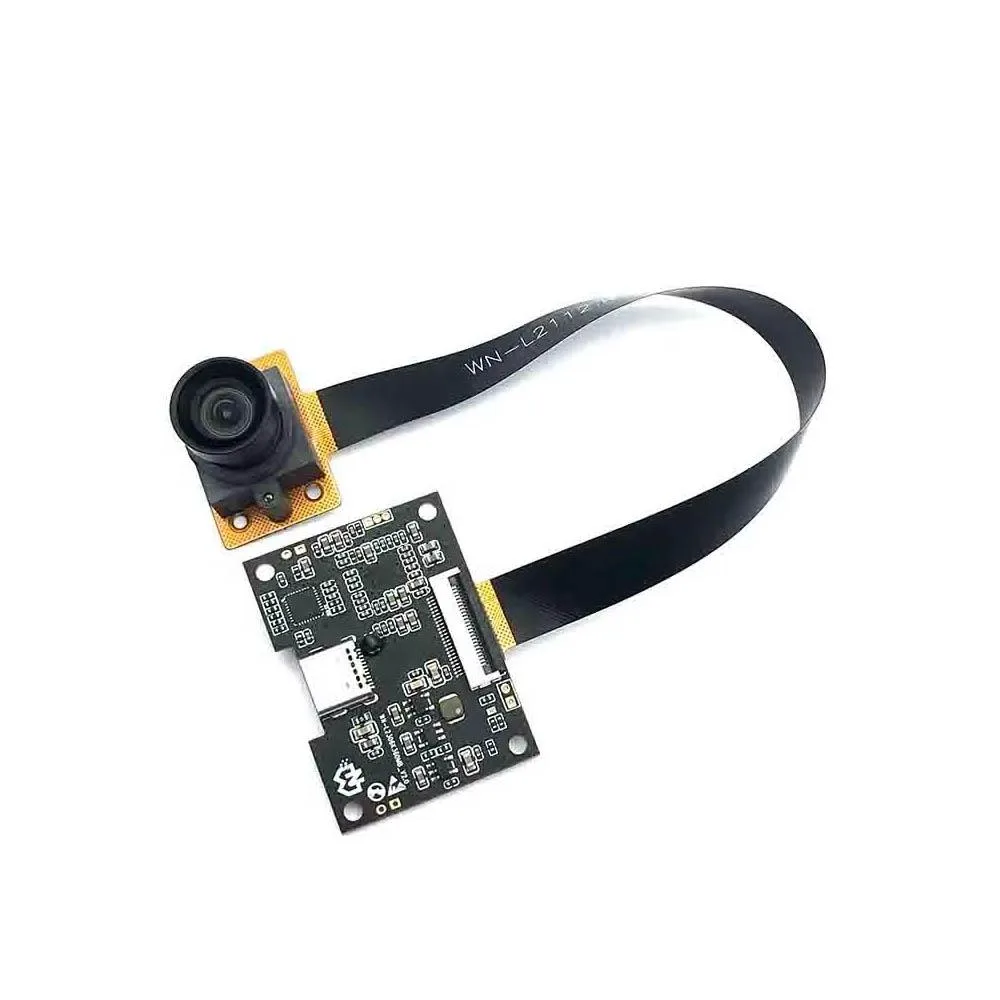

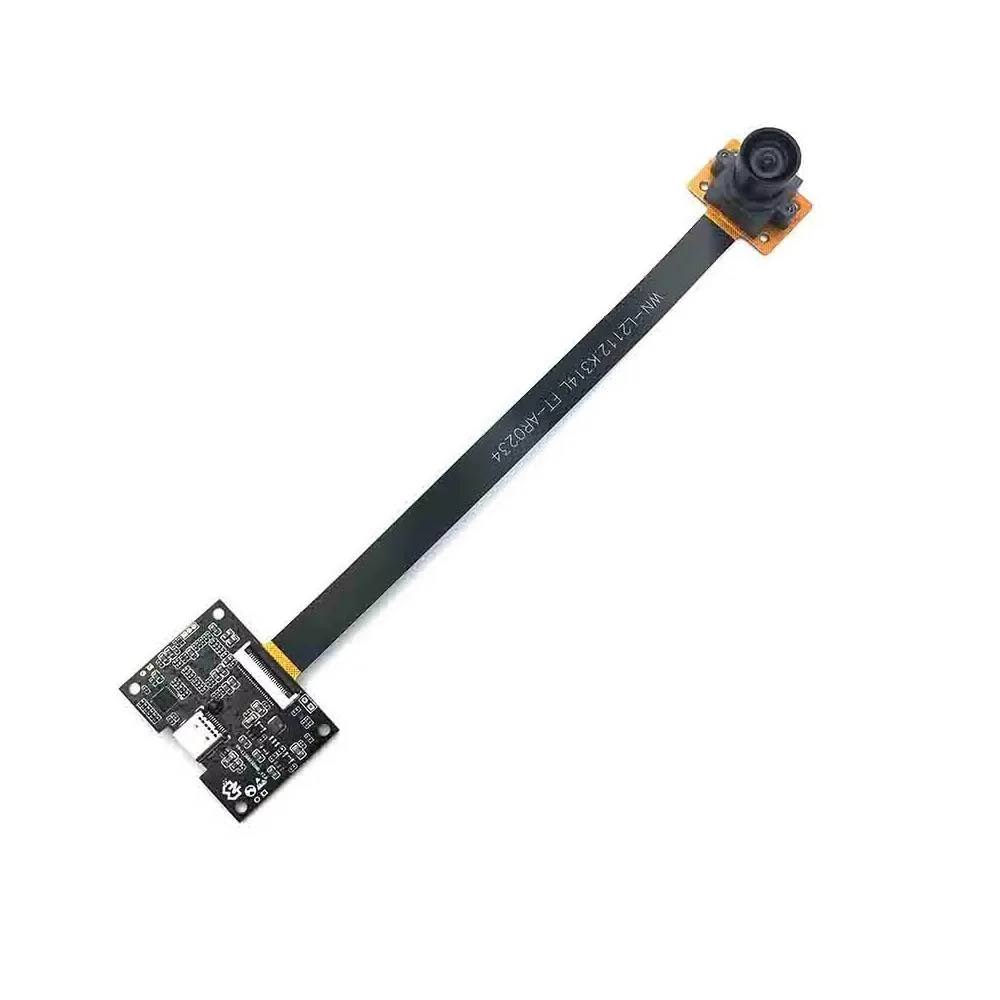

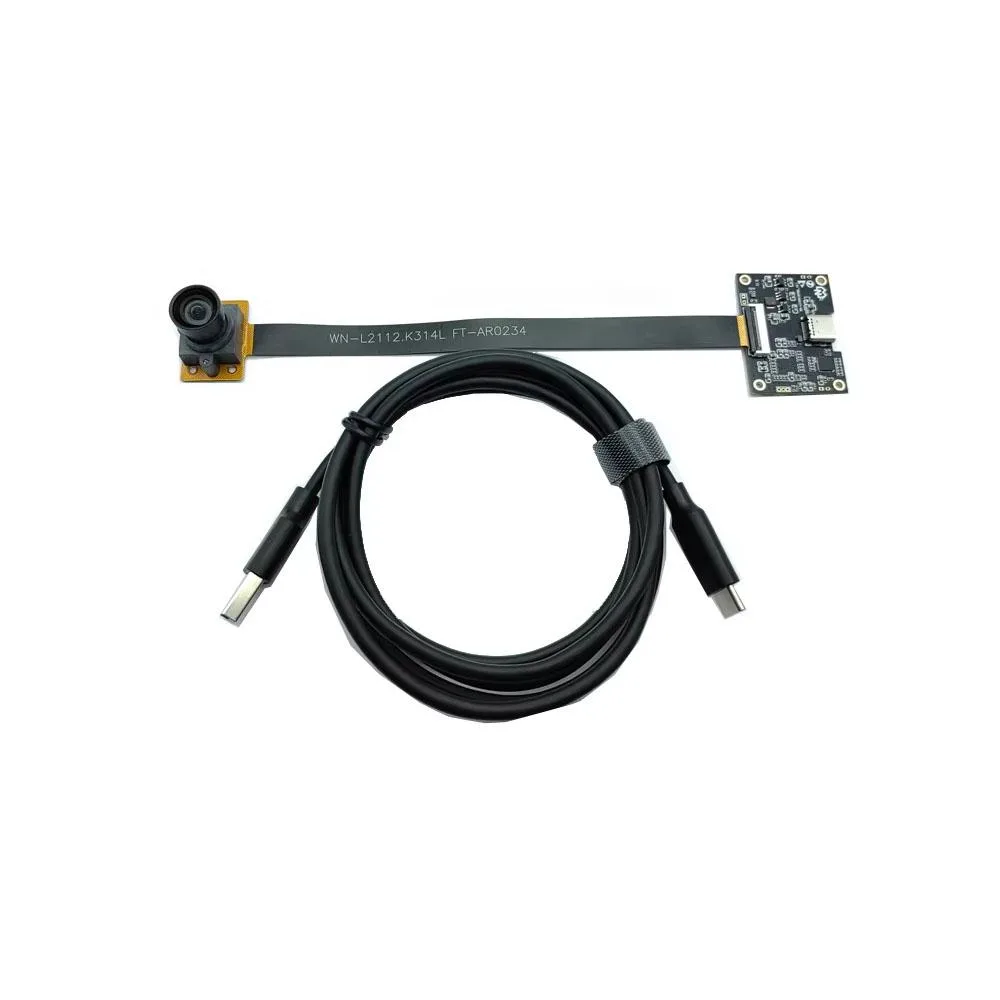

The Weinandianzi WN-L2306K360M-0234 is a 1.2-megapixel camera module built around a 1/2.6-inch AR0234 CMOS sensor. It connects via USB3.0 Type-C and delivers 1920x1080 resolution at up to 120 frames per second using a global shutter. The fixed-focus lens provides a 100-degree field of view, and the PCB measures 35 by 29 millimetres with a 170.5-millimetre FPC tail.

Suited for machine vision and document capture

Engineers building inspection systems, barcode readers or document scanners will benefit from the global shutter and high frame rates at 1080p. The module supports MJPG, YUY2 and H.264 output formats for flexible integration. Buyers who need auto-focus, higher resolution sensors or larger sensor formats should evaluate other options.

Global shutter at 120FPS decides fit

The defining specification is the AR0234 sensor’s ability to capture 1920x1080 video at 120 frames per second with global shutter exposure. This eliminates rolling artefacts on fast-moving subjects. If the application requires global shutter at this resolution and speed, the module matches the requirement; otherwise a different sensor class is appropriate.

Istaknuto

  • 2MP HD 1920x1080 resolution captures detailed documents
  • 120FPS global shutter freezes fast motion without distortion
  • 100° field of view covers wide scenes in one frame
  • USB3.0 Type-C interface delivers high-speed data and power
  • MJPG, YUY2 and H.264 output formats suit varied workflows

Specifikacije

BrandWeinandianzi
TypeOther
Quantity1
SpecificationsAR0234 USB3.0 Camera Module
Compatibility1/2.6-Inch AR0234 CMOS
Features2MP HD 1920x1080 1080P AR0234 USB3.0 Camera Module 120FPS

Pitanja o ovom artiklu

How much power does the USB3.0 Type-C interface draw when the camera runs at 120FPS all day?

The module is bus-powered over USB3.0 Type-C and draws its operating current directly from the host port; no external supply is required.

What host connector and driver support are needed to use the MJPG, YUY2 or H.264 streams?

A USB3.0 Type-C port and a standard UVC driver are sufficient; the camera enumerates as a video class device on Windows, Linux or macOS.

Will the fixed-focus 100° lens and 3.0 µm pixels on the 1/2.6-inch sensor work with my existing C-mount optics?

The lens is integrated and fixed-focus, so the module cannot accept interchangeable C-mount or CS-mount optics.
