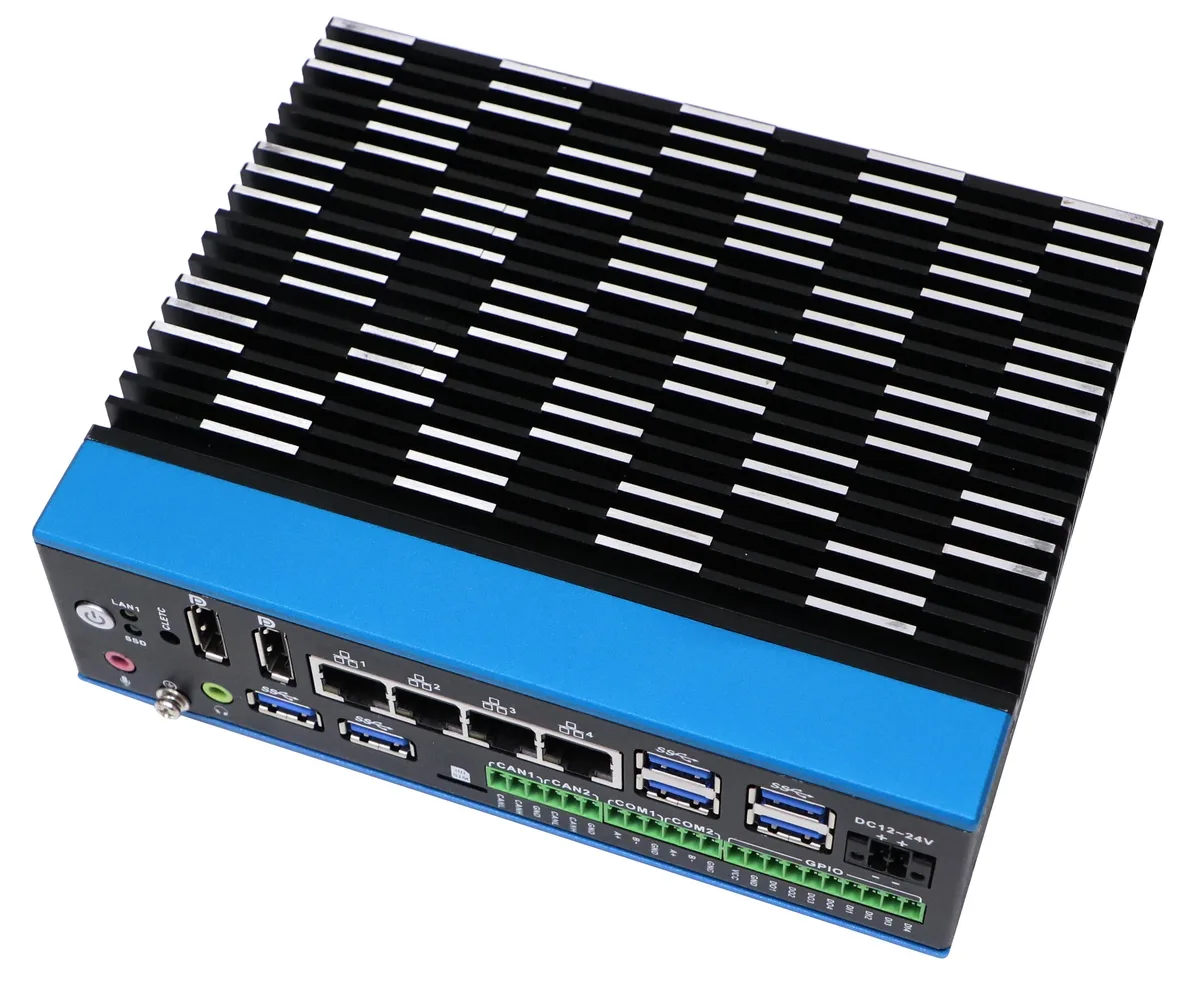

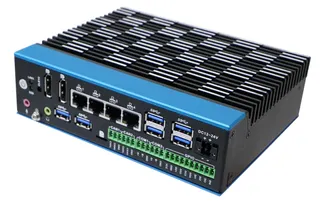

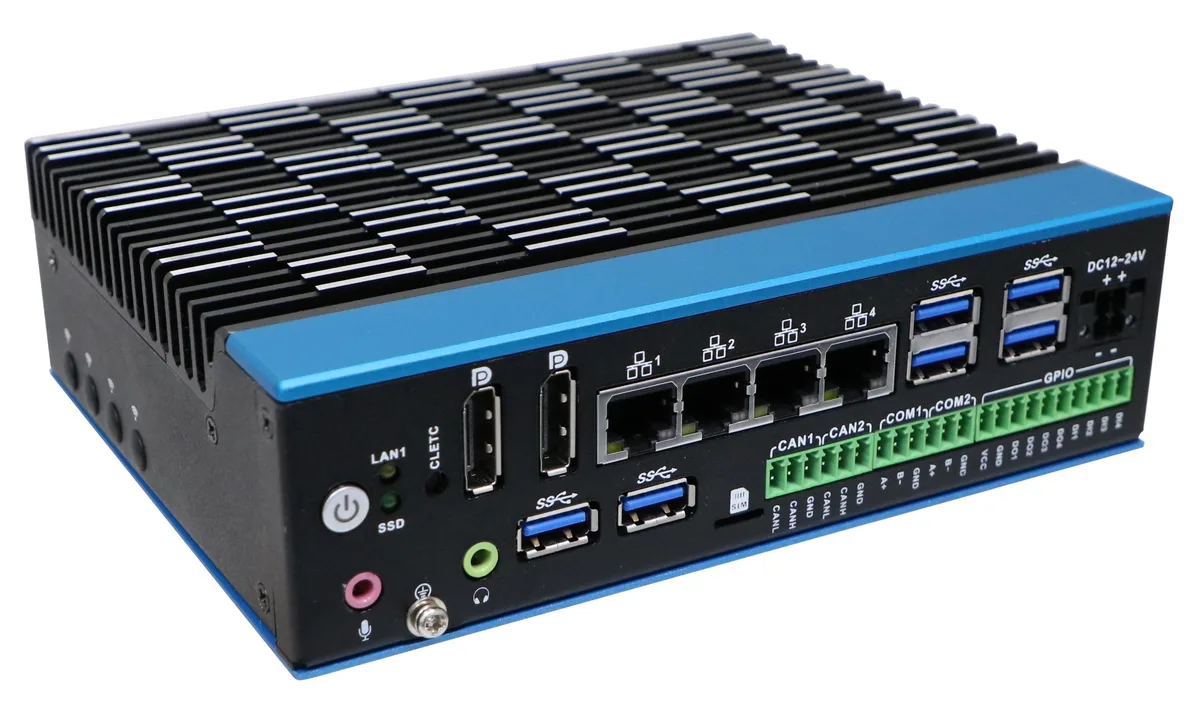

Compact black-grey aluminium mini PC with single-side ports

partaker

partaker I37 i7-1255U 16G 256G barebone mini PC

SKU CH-DZ87-Z00V1

Industrial mini PC with Core i7-1255U, 16 GB DDR5, 256 GB storage, four Gigabit LAN ports, dual DisplayPort, six USB 3.0, isolated RS485 and GPIO, 12–24 V DC input, and -20 °C to 60 °C operation

  • ColorBlack gray
  • CPU TypeIntel Core i7 12th Gen

I37 CPU I7 1255U 16GB RAM / 256GB SSD

  • Compact 172×136×50 mm aluminium chassis fits tight cabinets
  • Intel Core i7-1255U with 10 cores and 4.7 GHz boost
  • 16 GB DDR5 4800 MHz and 256 GB SSD ready to run
  • Four Gigabit LAN ports plus dual DisplayPort up to 7680×4320
  • Industrial I/O: 6 USB 3.0, isolated RS485, 8-bit GPIO, 12-24 V DC

Compact industrial barebone

The Partaker I37 is a fan-cooled mini PC built around an Intel Core i7-1255U processor with ten cores and twelve threads. It ships with 16 GB of DDR5 memory and a 256 GB SSD installed. The all-aluminium chassis measures 172 by 136 by 50 millimetres and weighs 1.45 kilograms. It targets integrators deploying edge gateways, AGV controllers or factory automation nodes that require rich legacy I/O in a slim book-style form factor.

Active cooling and wide-range power

An active heat-dissipation design keeps the CPU within its operating envelope from minus twenty to plus sixty degrees Celsius. The unit accepts a 12 to 24 volt DC supply through a four-pin Phoenix connector, drawing power across the wide input range without an external brick. Fan noise is present under load; a fanless variant exists as a separate option. Built-in watchdog, wake-on-LAN, PXE boot and auto power-on support uninterrupted 24/7 operation in industrial settings.

Expansion slots and isolated I/O

Two DDR5 4800 MHz SODIMM slots allow memory upgrades to 64 GB, while one M.2 2280 M-key slot, one mSATA slot, two full-length Mini PCIe sockets and one M.2 3052 B-key with a nano-SIM tray enable simultaneous SSD, Wi-Fi, 4G or 5G expansion. Four Gigabit Ethernet ports, six USB 3.0 ports, two optically isolated RS485 channels, eight-channel isolated GPIO rated to 924 volts and optional dual isolated CAN interfaces provide deterministic field connectivity without additional adapters.

Erősségek

  • Compact 172×136×50 mm aluminium chassis fits tight cabinets
  • Intel Core i7-1255U with 10 cores and 4.7 GHz boost
  • 16 GB DDR5 4800 MHz and 256 GB SSD ready to run
  • Four Gigabit LAN ports plus dual DisplayPort up to 7680×4320
  • Industrial I/O: 6 USB 3.0, isolated RS485, 8-bit GPIO, 12-24 V DC

Műszaki adatok

ColorBlack gray
CPU TypeIntel Core i7 12th Gen

A modell további verziói

5 további ebben a termékcsaládban

Ugyanaz a termékcsalád, eltérő memória, hűtés vagy órajel — hasonlítsa össze, mielőtt dönt.

Kérdések a termékről

How is the I37 mounted, and which step is often missed?

The unit includes a wall-mount bracket; the step often missed is securing the bracket to a surface that can handle 1.45 kg before sliding the chassis onto it.

What maintenance or replacement will the I37 need later?

The cooling fan in the active-cooling version will eventually require cleaning or replacement; the DDR5 SODIMMs and M.2 SSD are user-replaceable if capacity needs grow.

What limit appears first on the I37 under sustained load?

The operating ceiling of +60 °C is the first hard limit; if the chassis surface cannot dissipate heat fast enough, the CPU will throttle to stay within that range.
