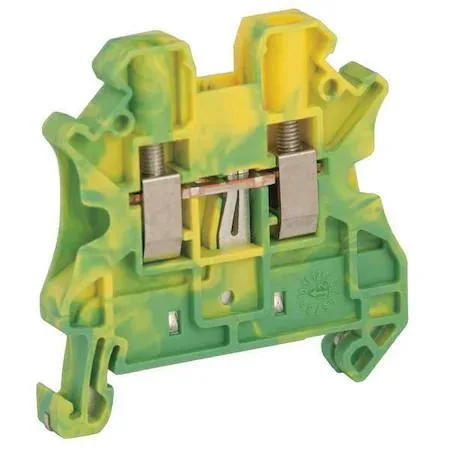

Yellow and green DIN rail terminal block with screw clamp, 0.24 in wide

Schneider Electric

Schneider Electric NSYTRV42PE Terminal Block Screw Clamp Grounding Black 10 26 1.88 .24

SKU CH-W5BZ-2J87Z

Two-tier DIN-rail terminal block with screw-clamp grounding for 26–10 AWG copper wire

  • Engine BrandSCHNEIDER ELECTRIC
  • Grounding safety ensured by screw clamp connection
  • Accepts 10 to 26 AWG solid or stranded copper conductors
  • DIN rail mount with compact 0.24 in width saves panel space
  • Certified to ATEX CSA CURus DNV GL IECEx LR UL VDE standards
  • Two-tier single-pole design fits 1.88 in depth and length

Grounding Terminal Block for DIN Rail

The Schneider Electric NSYTRV42PE is a single-pole grounding terminal block that mounts on DIN rail using screw clamp connection technology. It accepts solid or stranded copper conductors from 26 AWG up to 10 AWG. The green and yellow housing identifies its protective earth function in industrial control panels.

For Panel Builders Wiring Protective Earth

This block suits installers who need a compact grounding point on standard DIN rail for copper wires within the stated gauge range. It is not for applications requiring a through-feed or multi-pole power distribution block, nor for circuits that demand a higher pole count or a different mounting method.

Screw Clamp Connection for 26 to 10 AWG Copper

The screw clamp mechanism secures solid or stranded copper conductors from 26 AWG to 10 AWG without special tools. This connection type and wire range are the primary parameters that determine compatibility with your field wiring and panel design requirements.

Erősségek

  • Grounding safety ensured by screw clamp connection
  • Accepts 10 to 26 AWG solid or stranded copper conductors
  • DIN rail mount with compact 0.24 in width saves panel space
  • Certified to ATEX CSA CURus DNV GL IECEx LR UL VDE standards
  • Two-tier single-pole design fits 1.88 in depth and length

Műszaki adatok

Engine BrandSCHNEIDER ELECTRIC

Kérdések a termékről

Should I pick the 10 AWG or 26 AWG version of the NSYTRV42PE?

The block accepts both sizes in one unit, handling solid or stranded copper from 26 AWG up to 10 AWG.

What does the 1.88 in depth mean when the block is on a DIN rail?

It projects 1.88 inches from the rail, so allow that clearance behind the mounting surface.

How does the screw-clamp connection limit the wire sizes I can use?

The clamp is rated for 26–10 AWG copper, solid or stranded; wires outside that range are not supported.
