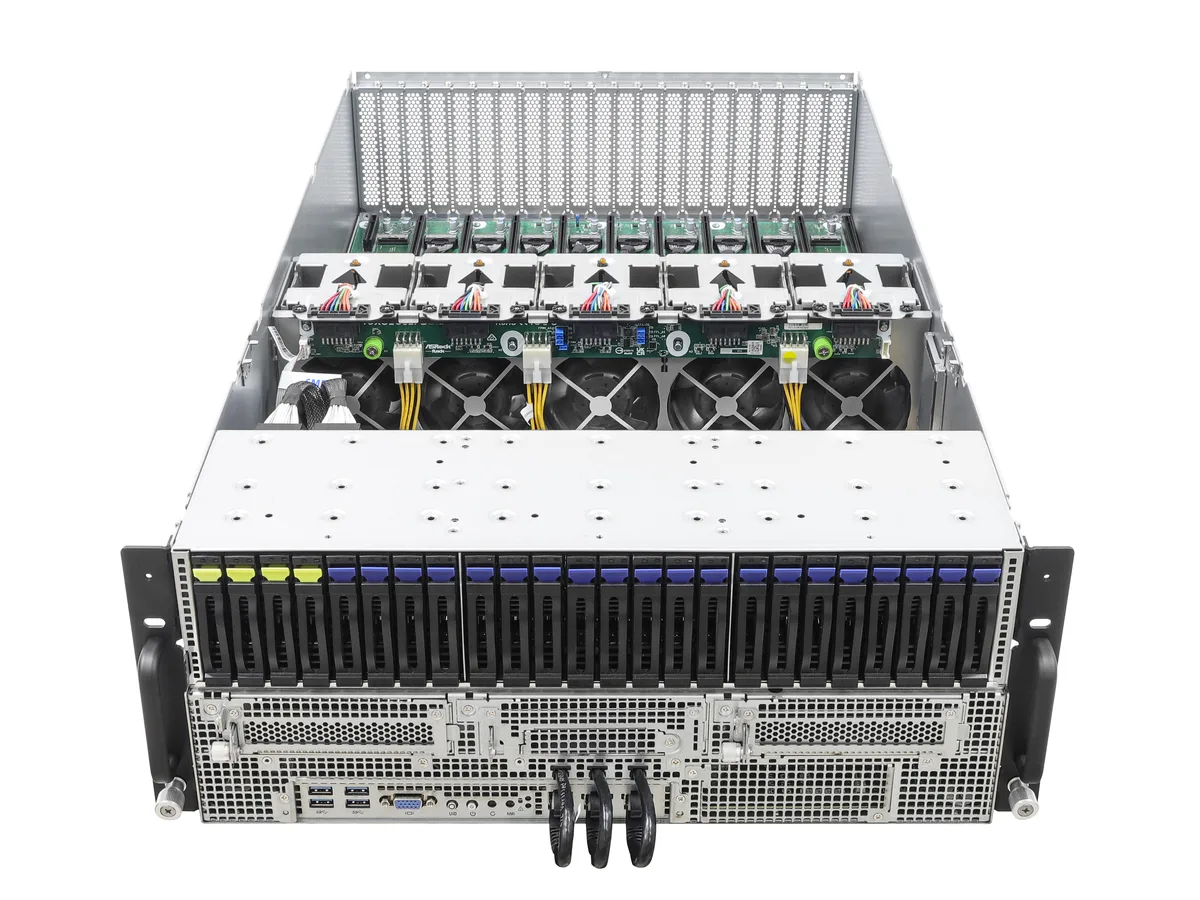

Silver 4U rackmount barebone chassis with front drive bays and rear expansion slots

ASRock Rack

ASRock Rack 4U8G-TURIN2 barebone server 4U dual SP5 24 DIMM 8 GPU

SKU CH-8RKA-NF9DM MPN 4U8G-TURIN2

4U barebone supporting dual AMD EPYC 9004/9005 CPUs, 24 DDR5 DIMM slots, 20 SATA and four NVMe bays, plus eight PCIe 5.0 x16 GPU slots

  • Form Factor4U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeAMD EPYC 9005 & 9004 Series
  • CPU SocketSocket SP5
  • Installed CPUNo CPU Installed
  • Max Processors2
  • Supports dual AMD EPYC 9005/9004 CPUs with 500W TDP each
  • 24 DDR5 6400 RDIMM slots deliver up to 12TB memory capacity
  • 8 full-height PCIe 5.0 x16 slots provide direct CPU GPU connectivity
  • 24 hot-swap 2.5" drive bays include 4 NVMe PCIe 5.0 x4 slots
  • 2700W 80-PLUS Titanium 3+1 redundant power ensures continuous operation

Dual-socket SP5 barebone for AMD EPYC 9005 and 9004

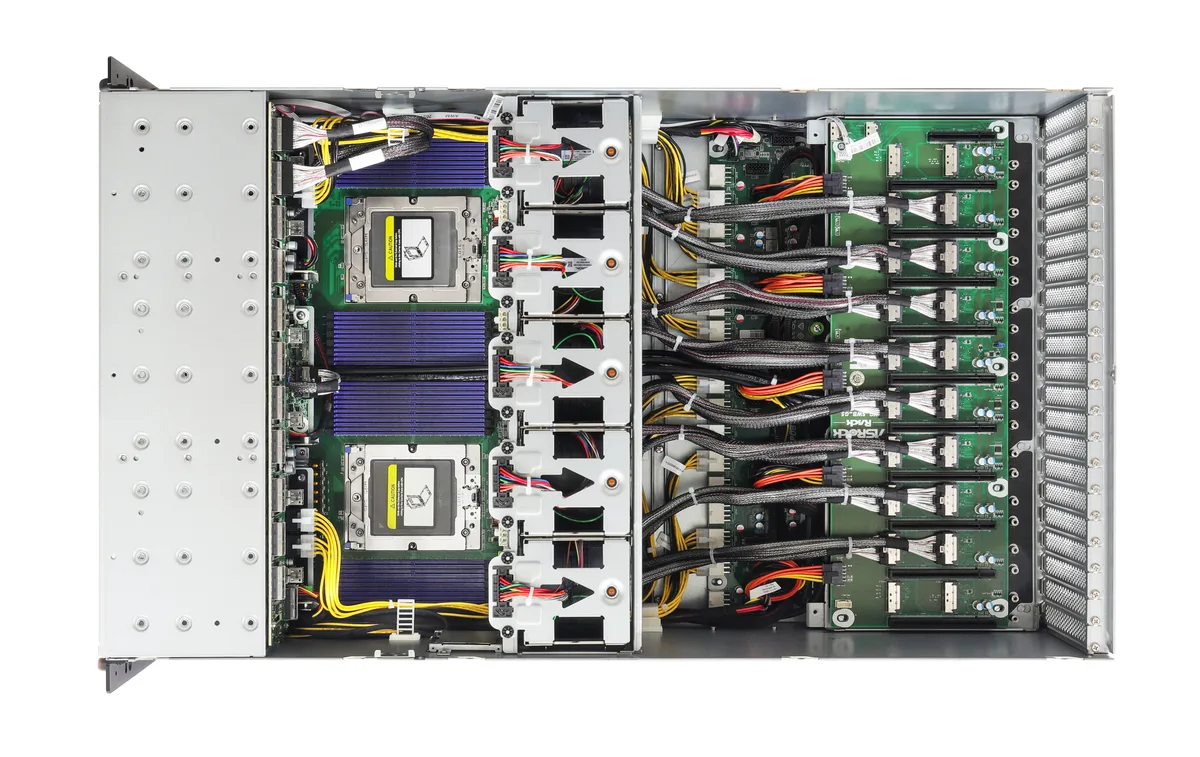

This 4U rackmount barebone accepts two AMD EPYC processors up to 500 W TDP each. Twenty-four DDR5 6400 registered DIMM slots support up to 12 TB of memory. The chassis targets general-purpose server workloads that need high core counts and large memory capacity.

80 PLUS Titanium power and dense hot-swap storage

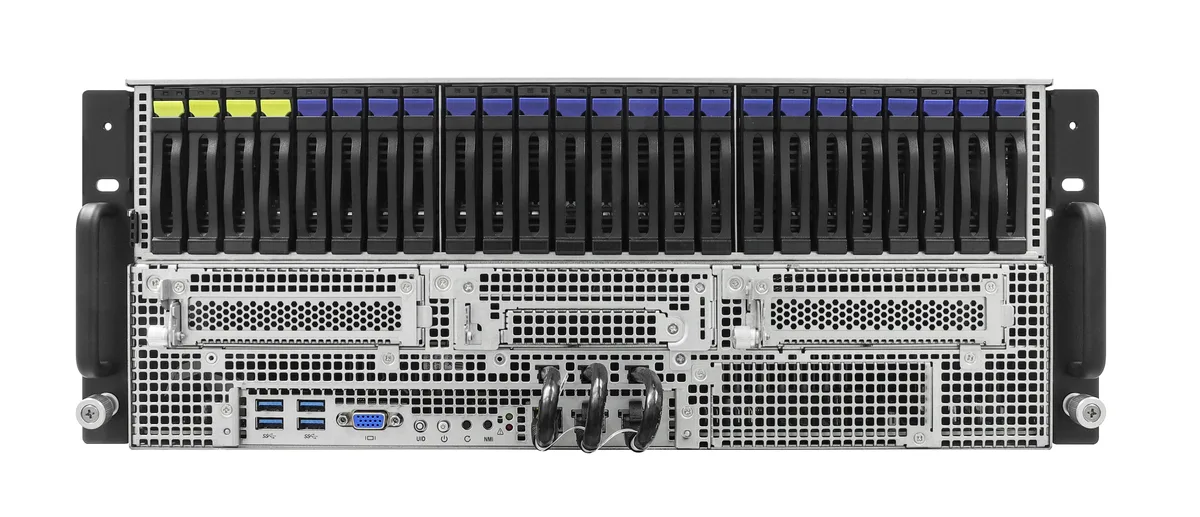

A 3+1 redundant 2700 W CRPS supply delivers 80 PLUS Titanium efficiency. Twenty hot-swap 2.5 inch SATA or SAS bays and four hot-swap 2.5 inch NVMe PCIe 5.0 x4 bays sit behind the front panel. Two M.2 slots accept 22110 or 2280 modules on PCIe 3.0 x4 or SATA. An OCP NIC 3.0 slot adds flexible networking.

Eight full-height dual-slot PCIe 5.0 x16 GPU slots

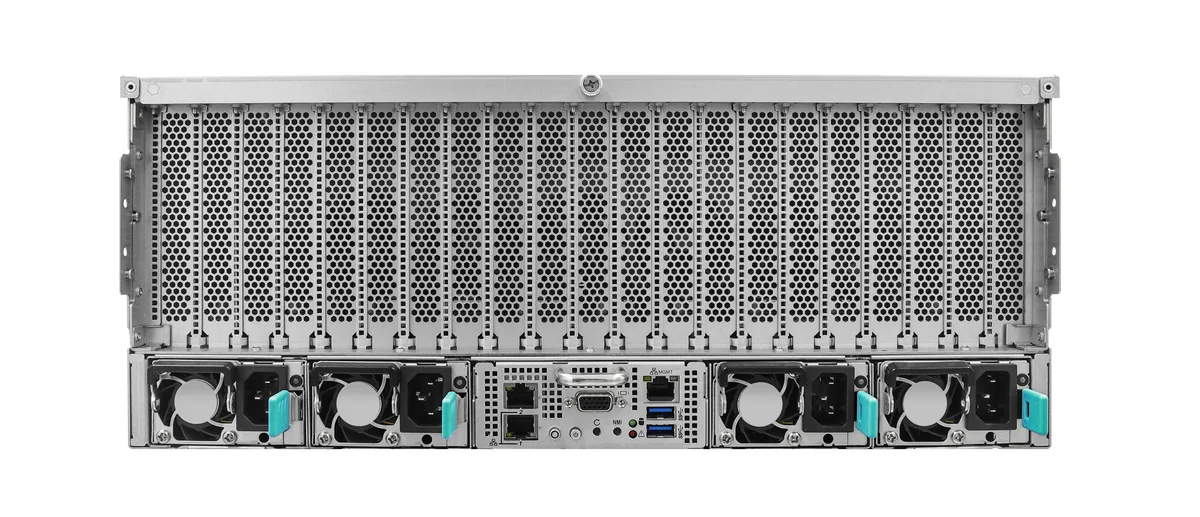

Eight rear FHFL slots connect directly to the CPUs at PCIe 5.0 x16 for accelerator or GPU deployments. One front FHHL PCIe 5.0 x8 slot provides additional expansion. The Aspeed AST2600 handles base management and video. Builders needing more than eight double-width accelerators or 10 GbE networking on board will need a different platform.

Helstu kostir

  • Supports dual AMD EPYC 9005/9004 CPUs with 500W TDP each
  • 24 DDR5 6400 RDIMM slots deliver up to 12TB memory capacity
  • 8 full-height PCIe 5.0 x16 slots provide direct CPU GPU connectivity
  • 24 hot-swap 2.5" drive bays include 4 NVMe PCIe 5.0 x4 slots
  • 2700W 80-PLUS Titanium 3+1 redundant power ensures continuous operation

Tæknilýsing

BrandASRock Rack
Model4U8G-TURIN2
Form Factor4U Rackmount
WorkloadGeneral Purpose Server
CPU TypeAMD EPYC 9005 & 9004 Series
CPU SocketSocket SP5
Installed CPUNo CPU Installed
Max Processors2
CPU FeaturesThermal Design Power Up to 500W
Memory Slots24 x 240Pin
Installed Memory SizeNo Memory Installed
Max Memory Supported12TB
Memory Type SupportedDDR5 6400
RegisteredYes
Installed HDDNo Storage Installed
M.21 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU0]
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU1]
GPU/VPUAspeed AST2600
PCI ExpressRear: 8 FHFL dual-slot PCIe5.0 x16 (CPU direct link)
Front: 1 FHHL PCIe5.0 x8
First LANIntel I350
Max. LAN Speed1 Gigabit
Hot-Swap Bays4 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
20 Hot-swap 2.5" SATA/SAS* drive bays
ButtonsPower button w/ LED, Reset button, NMI button, UID button
LEDsSystem fault LED, HDD activity LED
Front USB4 x USB 3.2 Gen 1 Type-A
VGA2
RJ452
Max. Power3+1 CRPS 1000W @ 100-127Vac input / 2700W @ 200-240Vac input
BIOS FeaturesAMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM
ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)
Fans5 Middle Hot-swap 80x80 mm fans
TemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
HumidityNon operation humidity: 20% ~ 90% ( Non condensing)
Dimensions6.9" x 30.9" x 17.2"
Sendingarþyngd50.58 kg
Stærð sendingar1125 × 650 × 399 mm

Spurningar um þessa vöru

Does the rear PCIe 5.0 x16 slot use a CPU direct link?

Yes, the eight rear FHFL dual-slot PCIe 5.0 x16 slots connect directly to the CPU.

How many 2.5-inch drive bays fit in the 4U chassis?

The chassis provides four hot-swap NVMe bays and twenty hot-swap SATA/SAS bays, all for 2.5-inch drives.

What must be populated first when installing memory in the 24 DIMM slots?

Fill one DIMM per channel across the twelve channels per socket before adding a second DIMM to any channel.
