Black 1U rackmount server chassis with five 40mm fans and four 3.5 inch drive bays

Athena Power

Athena Power RM-1U1043HEA 1U rackmount server chassis

SKU CH-EBE5-4EFB9 MPN RM-1U1043HEA

A 1U rackmount server chassis with five 40mm fans, four 3.5-inch bays, two 2.5-inch bays and front USB 2.0 ports

  • Chassis TypeRackmount
  • Form Factor1U
  • ColorBlack
  • Case Material1.0mm SGCC
  • Motherboard CompatibilityATX / Micro ATX / Mini ITX
  • Power Supply1U Single Flex ATX
  • Fits standard 1U racks at 1.75" height
  • Holds four 3.5" drives plus two 2.5" drives
  • Five 40mm fans deliver directed airflow
  • Front USB 2.0 ports give quick peripheral access
  • Built from 1.0mm SGCC steel for rigidity

Compact 1U rackmount chassis

The Athena Power RM-1U1043HEA is a 1U rackmount server chassis built from 1.0mm SGCC steel in black. It accepts ATX, Micro ATX and Mini ITX motherboards and includes a single Flex ATX power supply slot. Five 40mm fans provide airflow through the shallow enclosure.

Suits high-density storage builds.

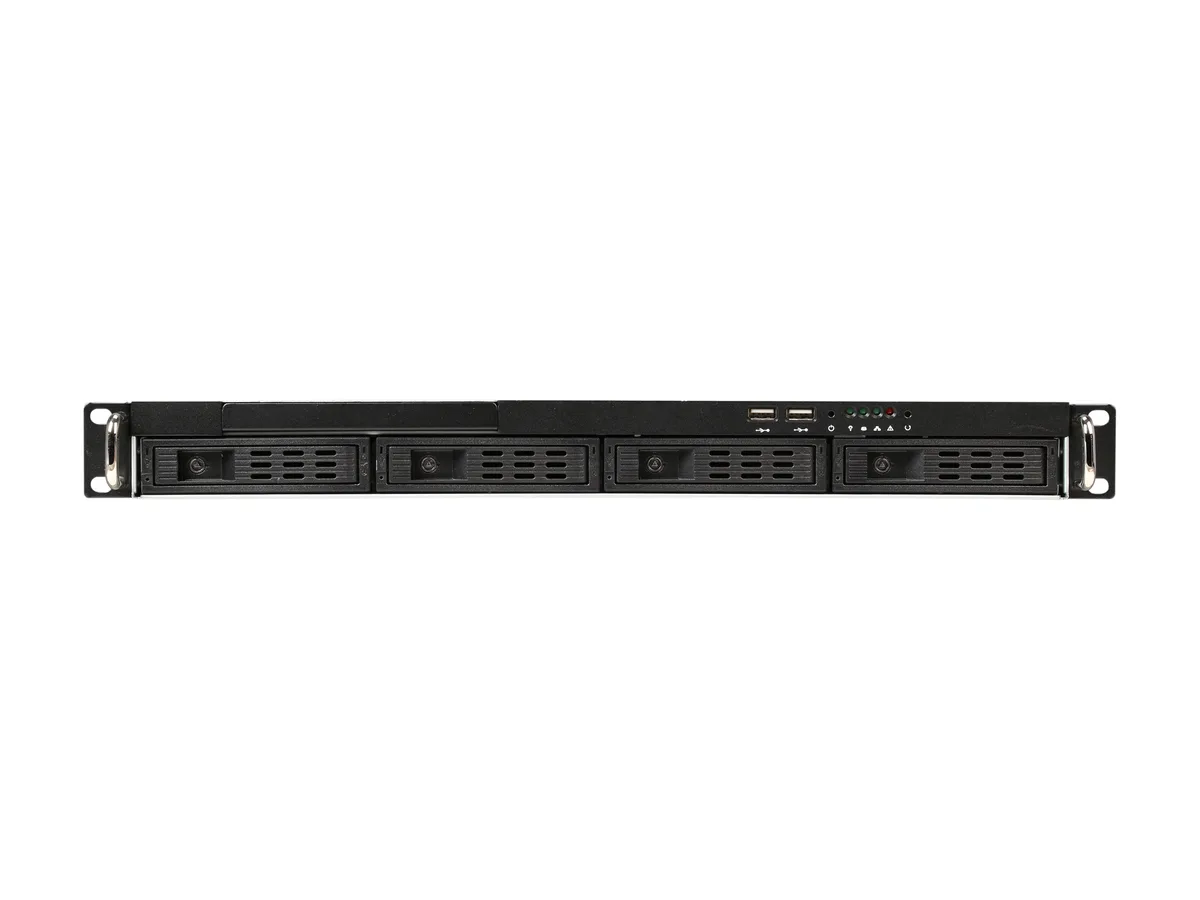

This unit fits builders who need four external 3.5" drive bays and two internal 2.5" bays in a single rack unit. Front USB 2.0 ports and status LEDs for power, drive activity, network and fault simplify daily operation. The 1U height prevents installation of standard expansion cards or tall CPU coolers.

Four external 3.5" bays decide the fit

The defining specification is the quartet of front-accessible 3.5" drive bays combined with a depth of 22.00". If your deployment requires that many hot-swap slots in a 1.75" tall chassis, this model matches; otherwise a deeper or taller chassis should be considered.

Helstu kostir

  • Fits standard 1U racks at 1.75" height
  • Holds four 3.5" drives plus two 2.5" drives
  • Five 40mm fans deliver directed airflow
  • Front USB 2.0 ports give quick peripheral access
  • Built from 1.0mm SGCC steel for rigidity

Tæknilýsing

BrandAthena Power
ModelRM-1U1043HEA
Chassis TypeRackmount
Form Factor1U
ColorBlack
Case Material1.0mm SGCC
Motherboard CompatibilityATX / Micro ATX / Mini ITX
Power Supply1U Single
Flex ATX
External 3.5" Drive Bays4
Internal 2.5" Drive Bays2
Front PortsUSB 2.0 x 2 (Front)
40mm Fans5
FeaturesIndicators: Power / HDD / LAN / FAIL
External: Slim ODD x 1
Dimensions1.75" x 17.25" x 22.00" (H x W x D)
Sendingarþyngd8.32 kg
Stærð sendingar721 × 582 × 198 mm

Spurningar um þessa vöru

Should I pick a chassis with four 3.5-inch bays or one with fewer for my storage needs?

This model provides four external 3.5-inch drive bays and two internal 2.5-inch bays, letting you mix high-capacity hard drives with faster solid-state drives in a single 1U enclosure.

What does the 1U form factor mean once the chassis is installed in a rack?

At 1.75 inches high it occupies exactly one rack unit, so it fits standard cabinets without wasting vertical space.

How does the USB 2.0 front interface limit real-world transfer speeds?

The two front ports run at USB 2.0 speeds, capping external drive throughput at the 2.0 specification regardless of the drive’s own rating.
