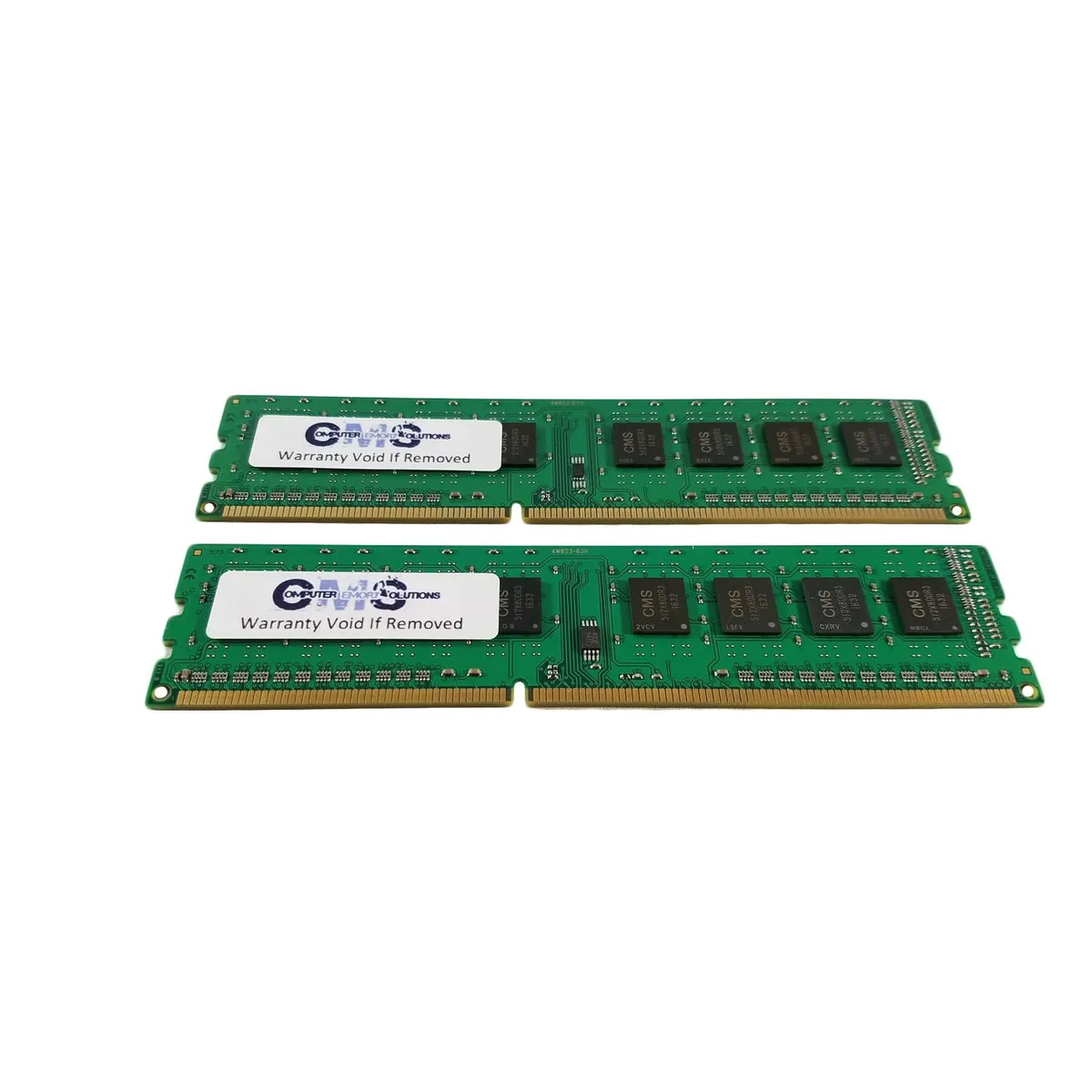

Two green DDR3 DIMM sticks without heat spreaders

Computer Memory Solutions

Computer Memory Solutions 16GB (2x8GB) DDR3 1600MHz memory upgrade for Lenovo ThinkCentre M83 Small/Tower/SFF

SKU CH-D2MX-DDQZR

A 16 GB dual-channel DDR3 kit at 1600 MHz, built specifically for the Lenovo ThinkCentre M83 Small, Tower and SFF desktops

  • Capacity16GB (2 x 8GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1600 (PC3 12800)
  • CAS LatencyCL11
  • Timing11-11-11
  • Voltage1.5V
  • 16 GB dual-channel kit boosts multitasking with two matched 8 GB modules
  • DDR3 1600 MHz speed (PC3 12800) accelerates data throughput for responsive performance
  • CL11 11-11-11 timings at 1.5 V deliver stable low-latency operation
  • 240-pin unbuffered non-ECC DIMMs install directly into ThinkCentre M83 small/tower/SFF slots
  • Computer Memory Solutions guarantees compatibility with listed 10AG/10AH/10AK/10AL/10AM/10AN systems

Compatibility with Lenovo ThinkCentre M83

This 16GB kit contains two 8GB DDR3 1600MHz modules built for Lenovo ThinkCentre M83 Small, Tower and SFF systems. It uses 240-pin unbuffered non-ECC DIMMs running at 1.5V with CL11 timing. The kit is designed for dual-channel installation in pairs.

Suited for matched-pair upgrades.

The modules must be installed in pairs to enable dual-channel mode on the M83 platform. The system accepts a maximum of 32GB across four sockets with 8GB per slot. Buyers who need ECC error correction, registered modules, or total capacities above 32GB cannot use this kit.

Dual-channel pair requirement decides fit

The M83 architecture requires modules to be ordered and installed in matched pairs for dual-channel operation. This 2x8GB kit satisfies that rule, while a single 16GB stick would not. Confirm the system has two free slots before purchasing.

Helstu kostir

  • 16 GB dual-channel kit boosts multitasking with two matched 8 GB modules
  • DDR3 1600 MHz speed (PC3 12800) accelerates data throughput for responsive performance
  • CL11 11-11-11 timings at 1.5 V deliver stable low-latency operation
  • 240-pin unbuffered non-ECC DIMMs install directly into ThinkCentre M83 small/tower/SFF slots
  • Computer Memory Solutions guarantees compatibility with listed 10AG/10AH/10AK/10AL/10AM/10AN systems

Tæknilýsing

BrandComputer Memory Solutions
ModelCM10246412800DIMM
Capacity16GB (2 x 8GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1600 (PC3 12800)
CAS LatencyCL11
Timing11-11-11
Voltage1.5V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemLenovo ThinkCentre M83 Small/Tower/SFF
Package Content2 Memory RAM Sticks

Spurningar um þessa vöru

Will these 240-pin DDR3 DIMMs fit the four slots in my Lenovo ThinkCentre M83 Small/Tower/SFF?

Yes, the kit is built for the M83 Small, Tower and SFF chassis and uses the standard 240-pin DDR3 form factor that the board's four slots accept.

What is the correct way to install the two 8 GB sticks for dual-channel operation?

Insert the pair into matching-coloured slots — usually slots 1 and 3 or 2 and 4 — so the memory controller enables 128-bit dual-channel mode.

How long is the memory covered if a module fails?

Computer Memory Solutions provides a limited lifetime warranty for exchange when the kit is purchased directly from them.
