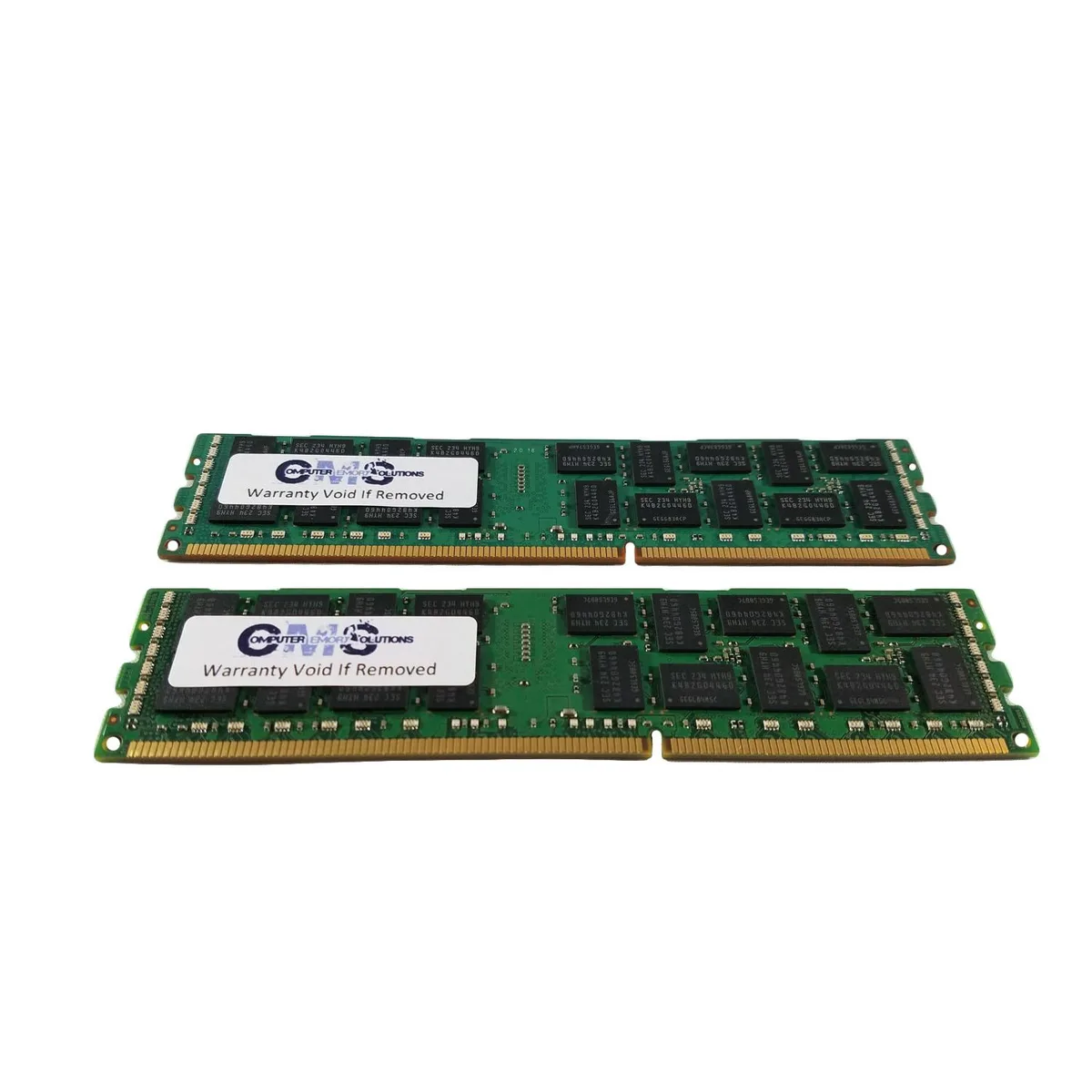

Two green DDR3L registered DIMMs with gold contacts

Computer Memory Solutions

Computer Memory Solutions 16GB (2x8GB) DDR3L 1600 ECC Registered memory upgrade

SKU CH-5M7V-KABES

16 GB registered ECC DDR3L 1600 kit for Lenovo ThinkServer RD340 servers

  • Capacity16GB (2 x 8GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3L 1600 (PC3L 12800)
  • CAS LatencyCL11
  • Timing11-11-11
  • Voltage1.35V
  • 16 GB kit expands server capacity to 192 GB maximum
  • ECC registered modules protect data integrity in critical workloads
  • DDR3L 1600 CL11 timing matches RD340 specifications
  • 35 V low-voltage operation reduces power draw
  • 240-pin DIMM form factor fits all 12 memory sockets

System-specific memory kit

This 16GB kit contains two 8GB registered DDR3L DIMMs built for the Lenovo ThinkServer RD340 series. It runs at 1600 MHz with CL11 timing at 1.35V and includes ECC error correction for server workloads.

Check your server before ordering

Verify that your RD340 uses part numbers 70A9xxx, 70AAxxx or 70ABxxx and has free 240-pin DIMM slots. The system accepts up to 192GB across six sockets per CPU, so confirm available slots and current population before adding this kit.

Upgrade from base configuration

The RD340 ships with 4GB removable memory; this kit quadruples that starting capacity in a single step. The jump is worth it when you need ECC registered reliability for virtualization or database tasks and have matching slots ready.

Helstu kostir

  • 16 GB kit expands server capacity to 192 GB maximum
  • ECC registered modules protect data integrity in critical workloads
  • DDR3L 1600 CL11 timing matches RD340 specifications
  • 35 V low-voltage operation reduces power draw
  • 240-pin DIMM form factor fits all 12 memory sockets

Tæknilýsing

BrandComputer Memory Solutions
ModelCM10247212800ECCR2R4L
Capacity16GB (2 x 8GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3L 1600 (PC3L 12800)
CAS LatencyCL11
Timing11-11-11
Voltage1.35V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderBased on Current Inventory (If Required Please Contact)
Compatible SystemLenovo Thinkserver Rd340 70A9Xxx; 70Aaxxx; 70Abxxx
Package Content2 Memory RAM Sticks

Spurningar um þessa vöru

Does the 16GB (2 x 8GB) kit include anything other than the two memory sticks?

The package content lists only the two 240-pin DDR3L registered ECC modules; no extra cables, brackets or tools are supplied.

Should I choose this 1600 MHz CL11 1.35 V kit or a different speed for my ThinkServer RD340?

The server’s qualified memory runs at DDR3L 1600 (PC3L 12800) with CL11 timing and 1.35 V, so this matched kit is the correct version.

What does the registered ECC 2Rx4 design mean once the modules are installed in the RD340?

Registered buffering and ECC let each CPU address up to 192 GB across its six sockets while detecting and correcting single-bit errors in real time.
