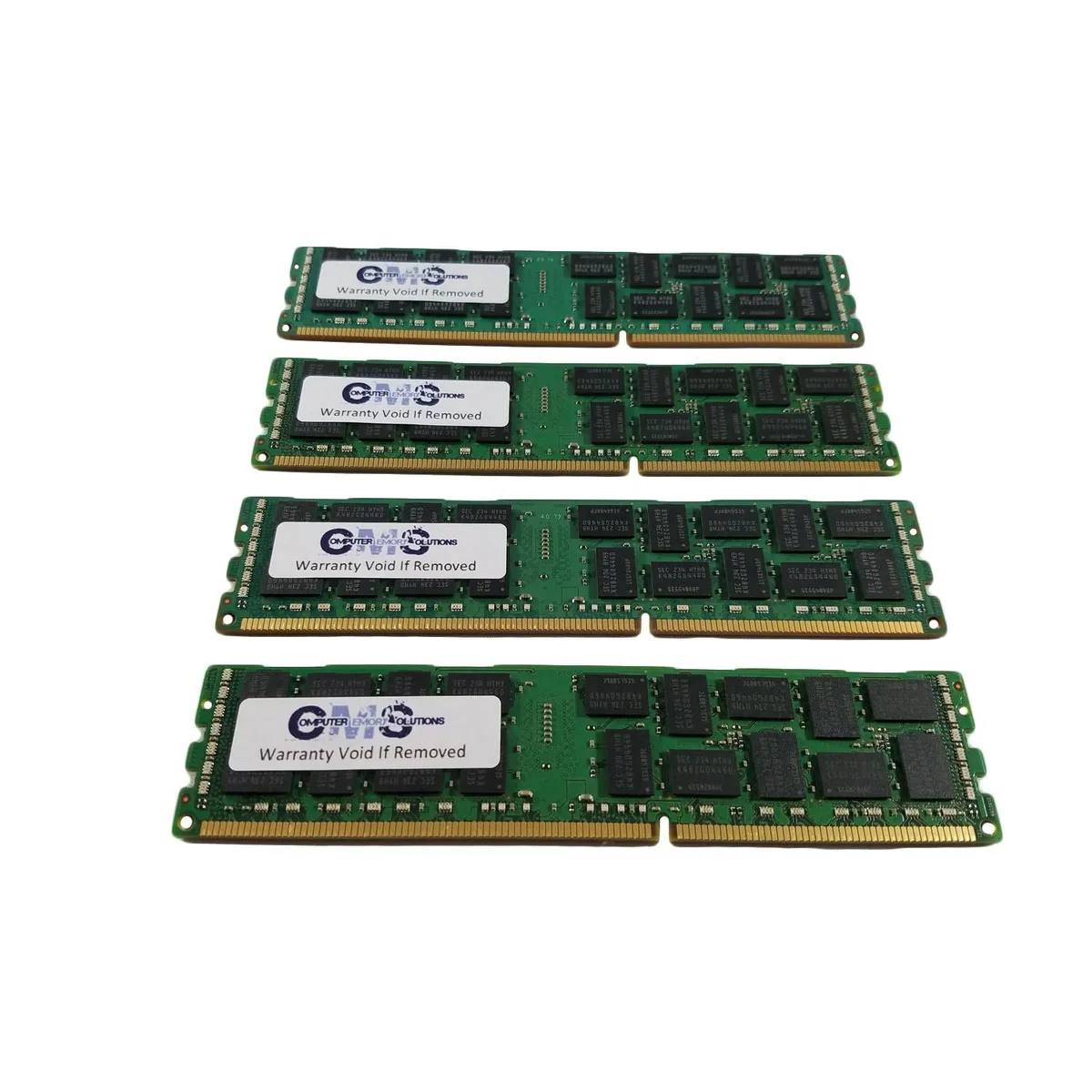

Four green DDR3 DIMMs with gold contacts, no heat spreader

Computer Memory Solutions

Computer Memory Solutions 16GB (4×4GB) DDR3 1333 ECC Registered DIMM Dell PowerEdge R620

SKU CH-R3M0-F7N7W

16 GB registered ECC DDR3 kit of four 4 GB modules for Dell PowerEdge R620 servers

  • Capacity16GB (4 x 4GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1333 (PC3 10600)
  • CAS LatencyCL9
  • Timing9-9-9
  • Voltage1.5V
  • 16 GB total capacity across four 4 GB modules
  • Registered ECC DDR3-1333 for data integrity in Dell PowerEdge R620
  • CL9 9-9-9 timing at 1.5 V for stable server operation
  • 2Rx4 organisation with major-brand chips across 240-pin DIMMs
  • Quad-channel kit validated for 24-socket R620 memory expansion

16GB Registered ECC Kit for PowerEdge R620

This 16GB kit contains four 4GB DDR3 1333 registered ECC DIMMs built for the Dell PowerEdge R620. Each module runs at 1.5V with CL9 timing and a 2Rx4 organisation. The 240-pin form factor matches the server's memory slots exactly.

Thermals, noise and power draw

Registered ECC modules operate at the standard 1.5V DDR3 voltage without a heat spreader, relying on the server's directed airflow for cooling. Power consumption stays within the platform's memory budget and the modules add no audible noise of their own.

Registered ECC requirement

The PowerEdge R620 accepts either registered ECC or unbuffered ECC memory but forbids mixing the two types within the same system. Buyers who need unbuffered ECC modules or who plan to combine registered and unbuffered sticks in one bank cannot use this kit.

Helstu kostir

  • 16 GB total capacity across four 4 GB modules
  • Registered ECC DDR3-1333 for data integrity in Dell PowerEdge R620
  • CL9 9-9-9 timing at 1.5 V for stable server operation
  • 2Rx4 organisation with major-brand chips across 240-pin DIMMs
  • Quad-channel kit validated for 24-socket R620 memory expansion

Tæknilýsing

BrandComputer Memory Solutions
ModelCM5127210600ECCR2R4H
Capacity16GB (4 x 4GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1333 (PC3 10600)
CAS LatencyCL9
Timing9-9-9
Voltage1.5V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemDell Poweredge R620
Package Content4 Memory RAM Sticks

Spurningar um þessa vöru

How do I install the four 4GB DDR3 1333 registered DIMMs in the Dell PowerEdge R620, and what step is often missed?

Populate each of the six banks with four identical modules; the common error is mixing the 313 x4 and 3138 x8 4GB registered ECC parts inside the same bank, which the system does not support.

What maintenance or replacement will the 16GB DDR3 1333 registered kit need later?

No scheduled maintenance is required; if a module fails, replace it with another 2Rx4 1.5V PC3-10600 registered ECC DIMM of the same rank and DRAM organisation to keep the bank uniform.

What limit appears first when the PowerEdge R620 runs sustained workloads with this 16GB DDR3 1333 registered memory?

The 1333 MHz DDR3 bus and CL9 latency set the bandwidth ceiling long before the 24-slot registered DIMM capacity limit of 384 GB or 512 GB is reached.
