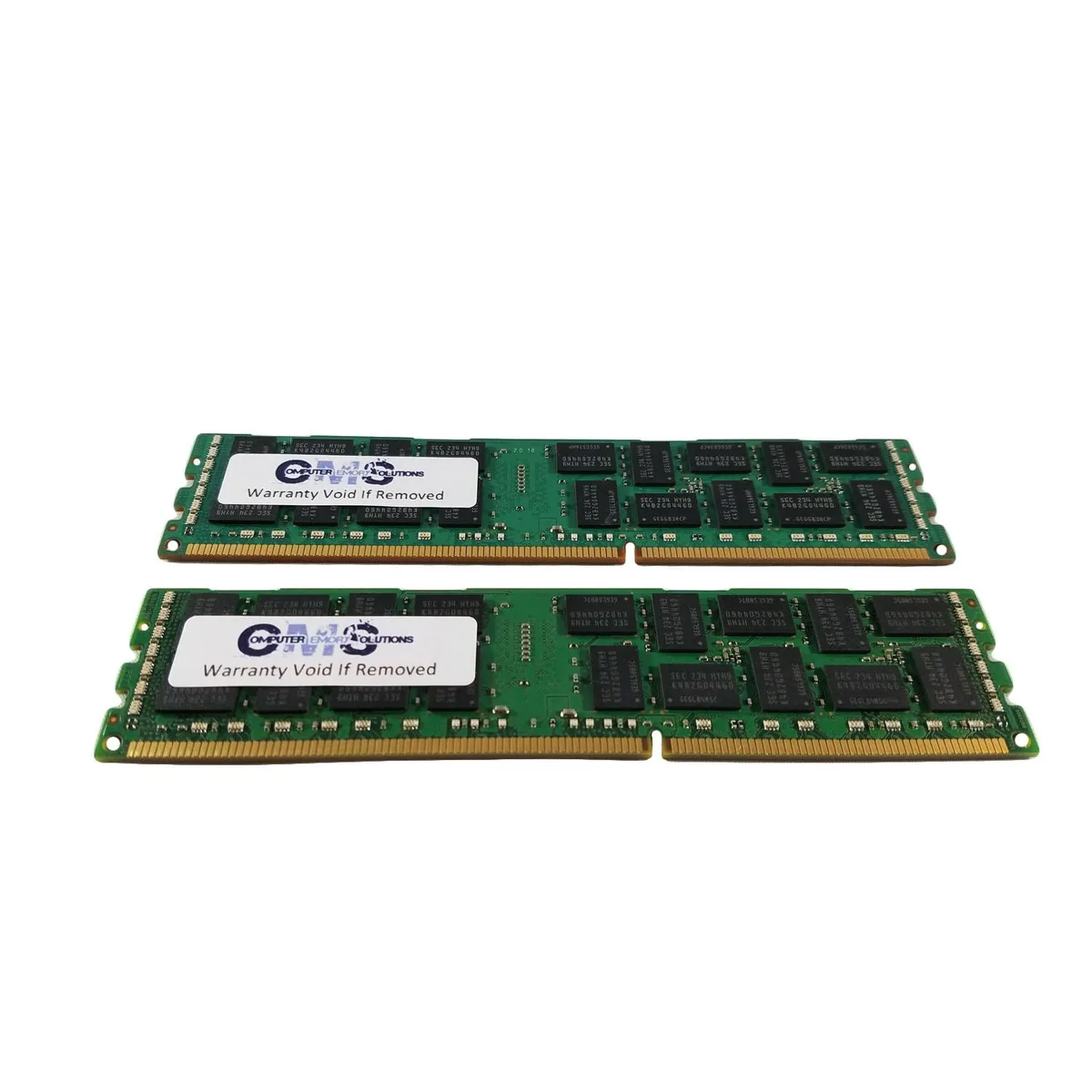

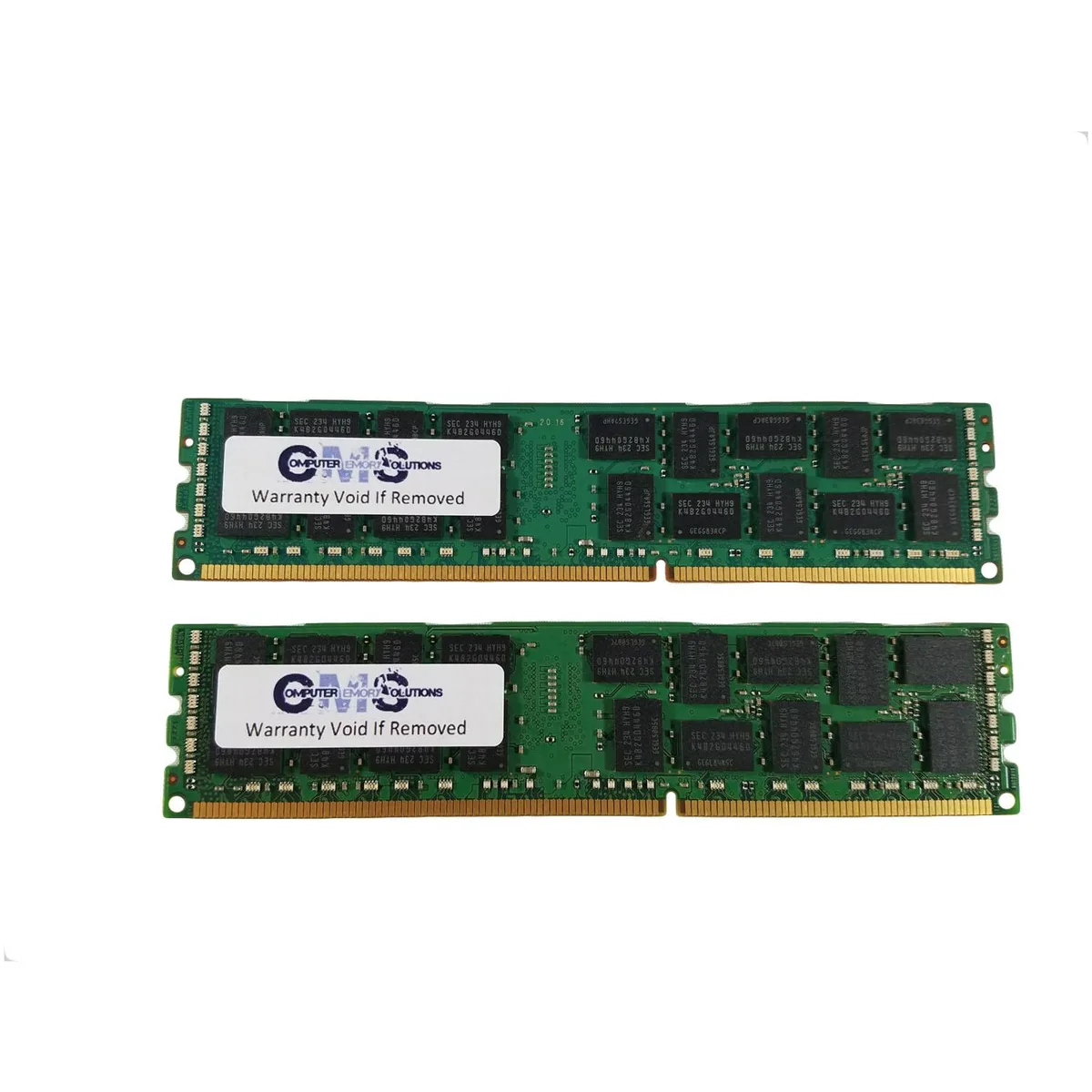

Two green DDR3 DIMMs with black chips, no heat spreader

Computer Memory Solutions

Computer Memory Solutions 32GB (2x16GB) DDR3 1333MHz ECC Registered Quad Rank DIMM

SKU CH-C9T9-W0QS0

32 GB dual-channel kit of registered ECC DDR3-1333 DIMMs validated for Dell PowerEdge T320 servers

  • Capacity32GB (2 x 16GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1333 (PC3 10600)
  • CAS LatencyCL9
  • Timing9-9-9
  • Voltage1.5V
  • ECC registered design protects data integrity on Dell PowerEdge T320
  • 32 GB kit (2 × 16 GB) expands server capacity to 192 GB maximum
  • DDR3 1333 MHz CL9 timing matches system specifications
  • Quad-rank 4Rx4 modules with major-brand chipsets ensure stable operation
  • 5 V low-voltage registered DIMMs reduce power draw in 240-pin slots

32GB DDR3 ECC Registered Kit

This 32GB kit contains two 16GB DDR3 1333MHz ECC Registered DIMMs built for the Dell PowerEdge T320. Each module runs at 1.5V with CL9 9-9-9 timing and uses a 4Rx4 quad-rank x4 organisation. The 240-pin form factor matches the server’s six memory sockets supporting up to 192GB total capacity.

Suited for T320 memory expansion

Designed for administrators adding capacity to a Dell PowerEdge T320 that requires Registered ECC modules. Not for systems that only accept Unbuffered ECC or Load Reduced DIMMs, because mixing registered with unbuffered or load-reduced types is not supported. Buyers needing higher-density 32GB modules or x8-based 4GB sticks should verify bank-level compatibility before ordering.

Straightforward server DIMM installation

Install by seating each 240-pin module into an empty socket until the ejectors lock. The main risk is mixing 4Rx4 quad-rank modules with x8-based parts inside the same memory bank, which the platform forbids. Always populate like modules per bank and confirm the BIOS recognises the full 32GB after POST.

Helstu kostir

  • ECC registered design protects data integrity on Dell PowerEdge T320
  • 32 GB kit (2 × 16 GB) expands server capacity to 192 GB maximum
  • DDR3 1333 MHz CL9 timing matches system specifications
  • Quad-rank 4Rx4 modules with major-brand chipsets ensure stable operation
  • 5 V low-voltage registered DIMMs reduce power draw in 240-pin slots

Tæknilýsing

BrandComputer Memory Solutions
ModelCM40967210600ECCRQR4L
Capacity32GB (2 x 16GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1333 (PC3 10600)
CAS LatencyCL9
Timing9-9-9
Voltage1.5V
ECCYes
Buffered/RegisteredRegistered
Rank4Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemDell Poweredge T320 Lv
Package Content2 Memory RAM Sticks

Spurningar um þessa vöru

Does the Dell PowerEdge T320 require registered ECC DDR3 modules like these 1333 MHz quad-rank DIMMs?

Yes, the T320 accepts registered ECC DDR3 at 1333 MHz and these 240-pin quad-rank modules match that specification.

Can I keep my existing 4 GB x4 registered ECC modules (part 313/4G) in the same memory bank as these 16 GB x4 modules?

No, the system requires like modules within each memory bank; x4 and x8 parts must not be mixed in the same bank.

How do I verify the kit is running at 1333 MHz with CL9 timings after installation?

Check the BIOS memory information or run a tool such as CPU-Z to confirm DDR3-1333 speed and 9-9-9 latency.
