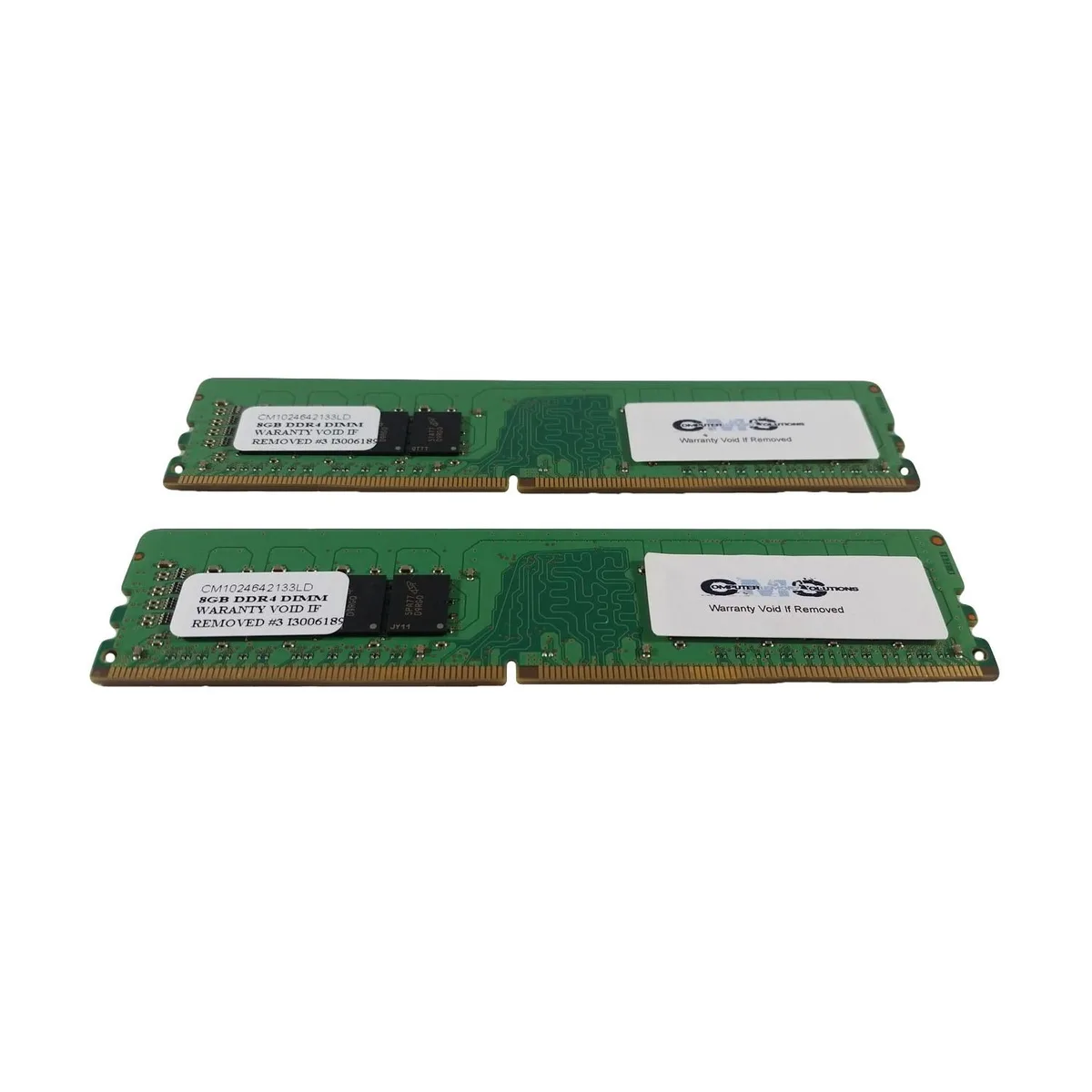

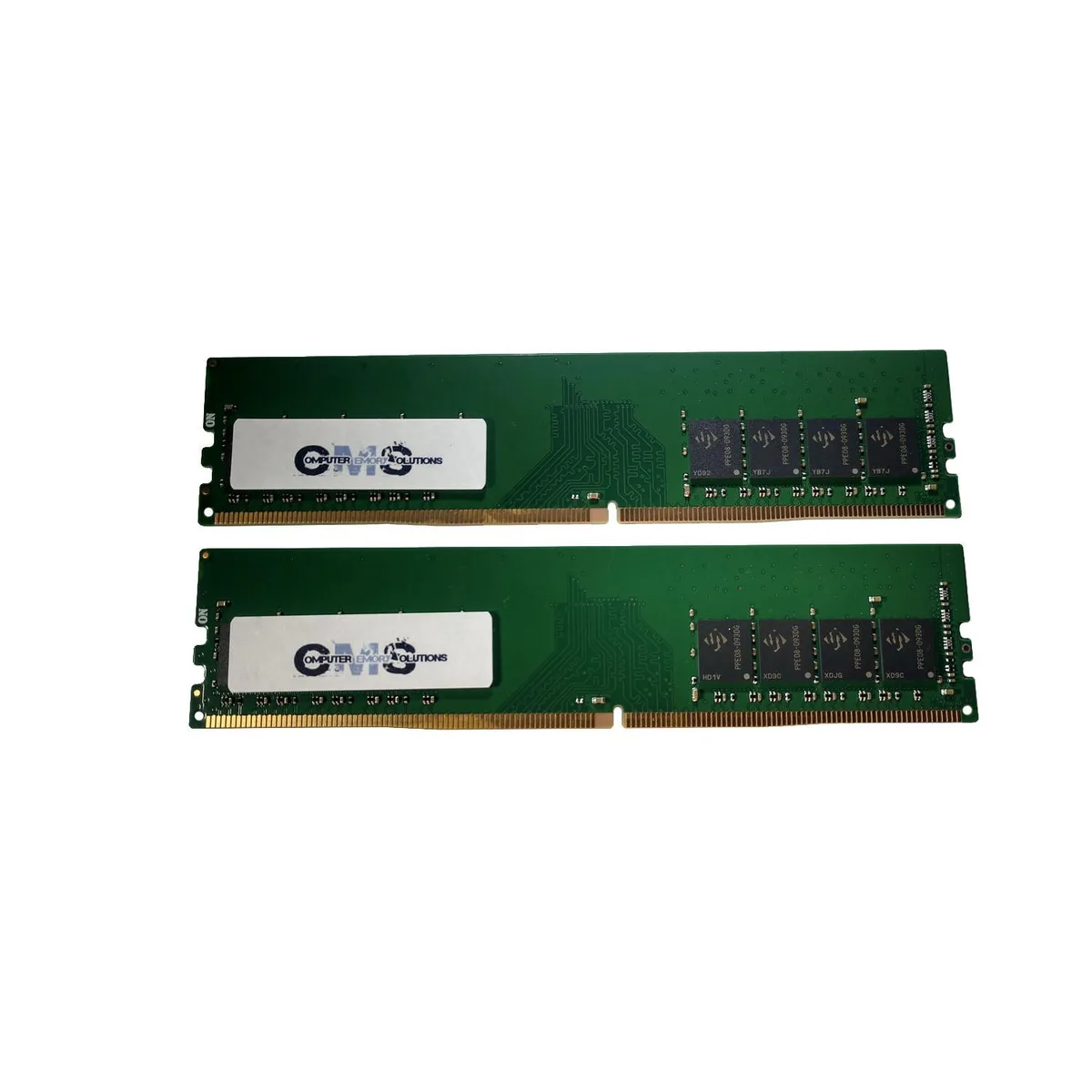

Two green DDR4 DIMM sticks with black chips no heat spreader

Computer Memory Solutions

Computer Memory Solutions CM1024642400DIMM 16GB (2x8GB) DDR4 2400MHz CL17 1.2V memory upgrade

SKU CH-SAMM-ND8SG

16 GB dual-channel DDR4 kit at 2400 MHz CL17 1.2 V, validated for Gigabyte B250M motherboards

  • Capacity16GB (2 x 8GB)
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.2V
  • 16 GB dual-channel kit boosts multitasking
  • CL17 timing at 2400 MHz delivers responsive performance
  • 2 V DDR4 modules reduce power draw
  • Validated for Gigabyte B250M motherboards
  • Unbuffered non-ECC 288-pin DIMMs install easily

16GB DDR4 kit for Gigabyte B250M boards

This 16GB kit contains two 8GB DDR4 2400MHz modules built for Gigabyte GA-B250M-D3H, GA-B250M-DS3H, GA-B250M-Gaming 3 and GA-B250M-Gaming 5 motherboards. It runs at 1.2V with CL17 timing and uses unbuffered non-ECC 288-pin DIMMs. The kit fills two of the board's four slots and is covered by a lifetime warranty from Computer Memory Solutions.

Two matched sticks enable dual-channel operation

The pair is tested together so the memory controller can run in dual-channel mode, doubling bandwidth compared with a single module. No heat spreaders are included, keeping the profile low for tight cooler clearance. Each stick uses a 2Rx8 organisation with major-brand chips and the kit carries Computer Memory Solutions part number CM1024642400DIMM.

64GB maximum capacity is the limiting factor

The supported motherboards accept up to 64GB across four slots, so this 16GB kit leaves headroom for two more modules later. Builders who need 64GB immediately should populate all four slots with a 4x16GB or 4x8GB configuration instead. The 2400MHz speed is fixed by the platform and cannot be exceeded with this chipset.

Helstu kostir

  • 16 GB dual-channel kit boosts multitasking
  • CL17 timing at 2400 MHz delivers responsive performance
  • 2 V DDR4 modules reduce power draw
  • Validated for Gigabyte B250M motherboards
  • Unbuffered non-ECC 288-pin DIMMs install easily

Tæknilýsing

BrandComputer Memory Solutions
ModelCM1024642400DIMM
Capacity16GB (2 x 8GB)
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.2V
ECCNo
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemGigabyte GA-B250M-D3H, GA-B250M-DS3H, GA-B250M-Gaming 3, GA-B250M-Gaming 5 Motherboards
Package Content2 Memory RAM Sticks

Spurningar um þessa vöru

Will the 288-pin DDR4 modules need any firmware updates or heat spreader additions later?

The kit ships as unbuffered non-ECC DDR4 without heat spreaders; no firmware applies to memory and the 1.2 V JEDEC voltage requires no extra cooling under normal loads.

What limit appears first when all four slots on a B250 board are filled to the 64 GB maximum?

The platform tops out at 64 GB across four sockets, so the capacity ceiling is reached before any timing or voltage constraint becomes an issue.

How much heat and power does the 2400 MHz CL17 kit produce when running continuously?

Each 8 GB stick runs at the standard 1.2 V DDR4 voltage, so total draw stays low and passive airflow in a typical chassis keeps temperatures well within spec.
