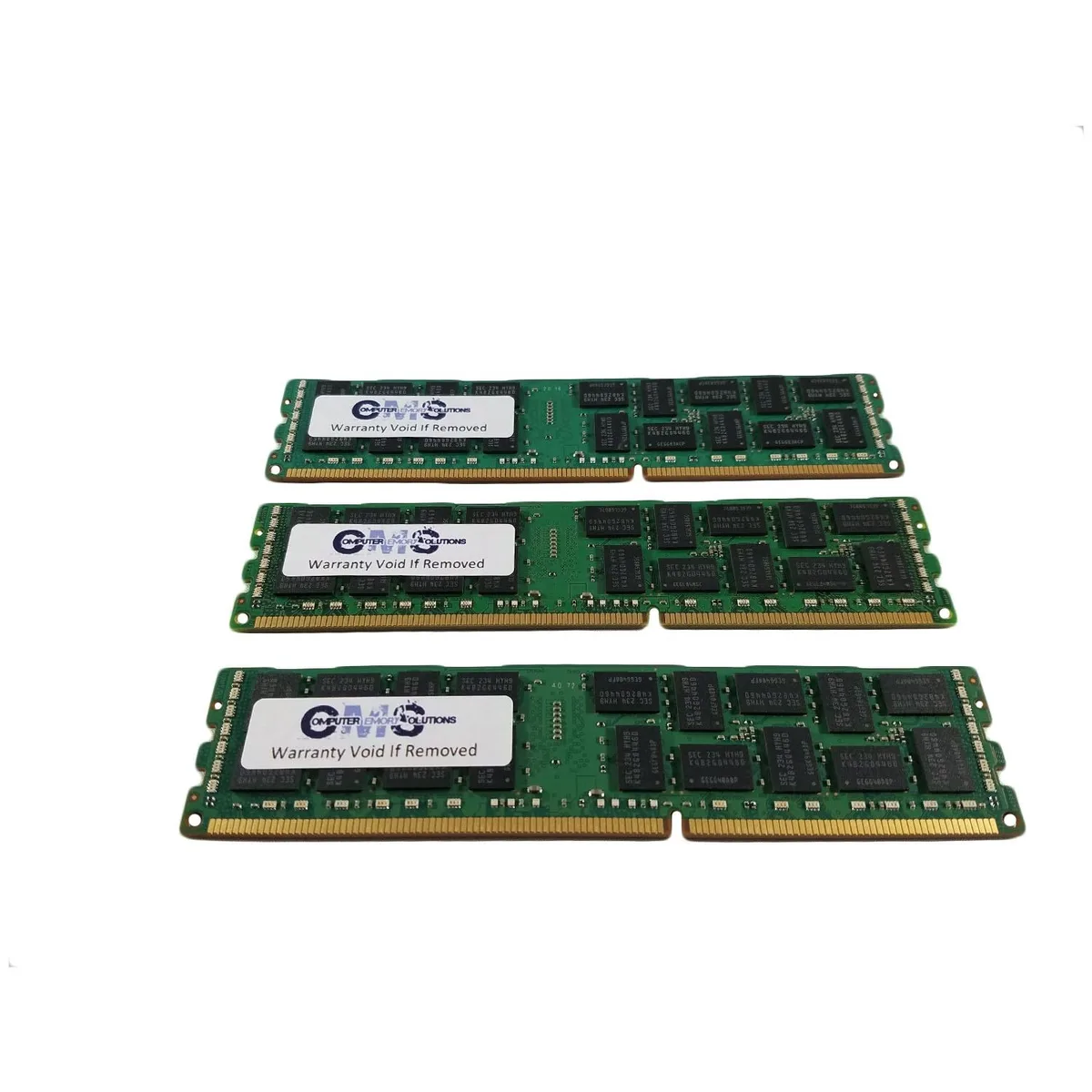

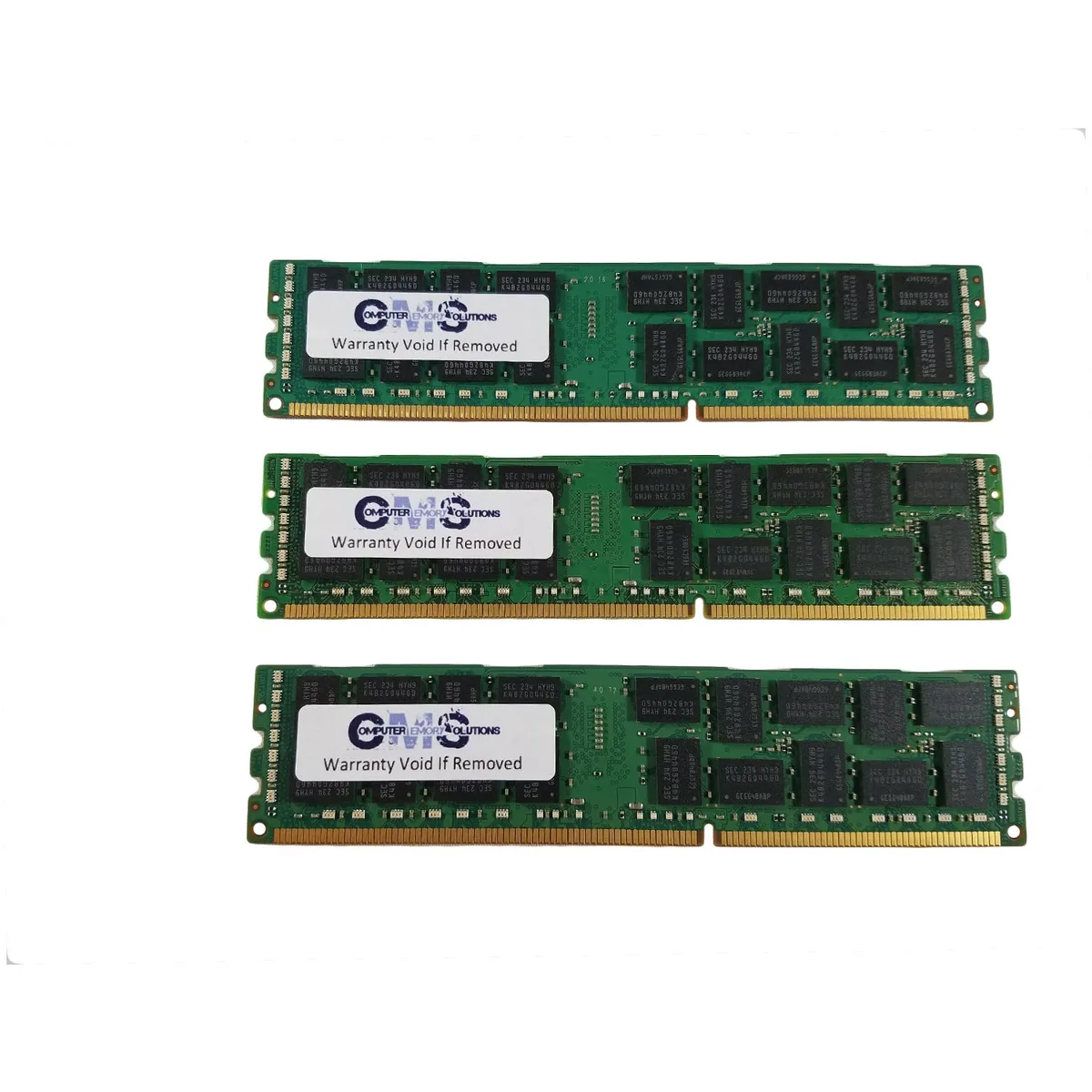

Three green DDR3 DIMMs with black chips, no heat spreaders

Computer Memory Solutions

Computer Memory Solutions CM10247210600ECCR2R4H 24GB (3x8GB) DDR3 1333 ECC Registered DIMM memory upgrade

SKU CH-EGRX-KQAYM

24 GB DDR3 1333 ECC registered triple-channel kit for HP Z600 workstations

  • Capacity24GB (3 x 8GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1333 (PC3 10600)
  • CAS LatencyCL9
  • Timing9-9-9
  • Voltage1.5V
  • 24 GB triple-channel kit boosts Z600 workstation capacity
  • ECC registered design protects data integrity in server workloads
  • DDR3-1333 speed matches system bus for stable operation
  • 5 V standard voltage ensures broad platform compatibility
  • Three matched 8 GB modules enable optimal interleaving

HP Z600 triple-channel kit

This 24 GB kit contains three 8 GB registered ECC DIMMs built for the HP Workstation Z600. It targets administrators upgrading dual-CPU servers that require registered memory and triple-channel interleaving across all six slots.

240-pin registered installation

Modules are standard 240-pin DDR3 DIMMs that seat in the Z600’s three-channel banks; registered buffers add a slight insertion force but otherwise install like regular DIMMs. The board must carry the C2 revision of the Intel 5520 chipset, otherwise registered DIMMs will not be recognised. Mixing registered and unbuffered ECC in the same bank prevents boot, and x4 versus x8 DRAM variants must not share a channel.

Sustained server workloads

Rated at 1333 MHz with CL9 timings and 1.5 V, the kit delivers steady bandwidth across all three channels during long compute runs. Registered buffering reduces electrical load on the memory controller, helping stability when all six sockets are populated up to the 48 GB dual-CPU maximum. Unbuffered ECC cannot match this density on the same platform.

Helstu kostir

  • 24 GB triple-channel kit boosts Z600 workstation capacity
  • ECC registered design protects data integrity in server workloads
  • DDR3-1333 speed matches system bus for stable operation
  • 5 V standard voltage ensures broad platform compatibility
  • Three matched 8 GB modules enable optimal interleaving

Tæknilýsing

BrandComputer Memory Solutions
ModelCM10247210600ECCR2R4H
Capacity24GB (3 x 8GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1333 (PC3 10600)
CAS LatencyCL9
Timing9-9-9
Voltage1.5V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemHp/Compaq Workstation Z600
Package Content3 Memory RAM Sticks

Spurningar um þessa vöru

How can I confirm the kit is running in triple-channel mode at 1333 MHz after installation?

Enter the system BIOS and verify that all 24 GB are detected and the memory speed reads 1333 MHz with triple-channel interleaving enabled.

What items are included in the box and is anything else needed for installation?

The package contains three 8 GB DDR3 240-pin registered ECC DIMMs; no extra parts are required if the workstation has available DIMM slots.

Which version of the 8 GB registered ECC module should I choose for the Z600 — the x4 or x8 DRAM variant?

This kit uses 2Rx4 (x4) organisation; for triple-channel operation install three matching x4 modules in the same bank.
