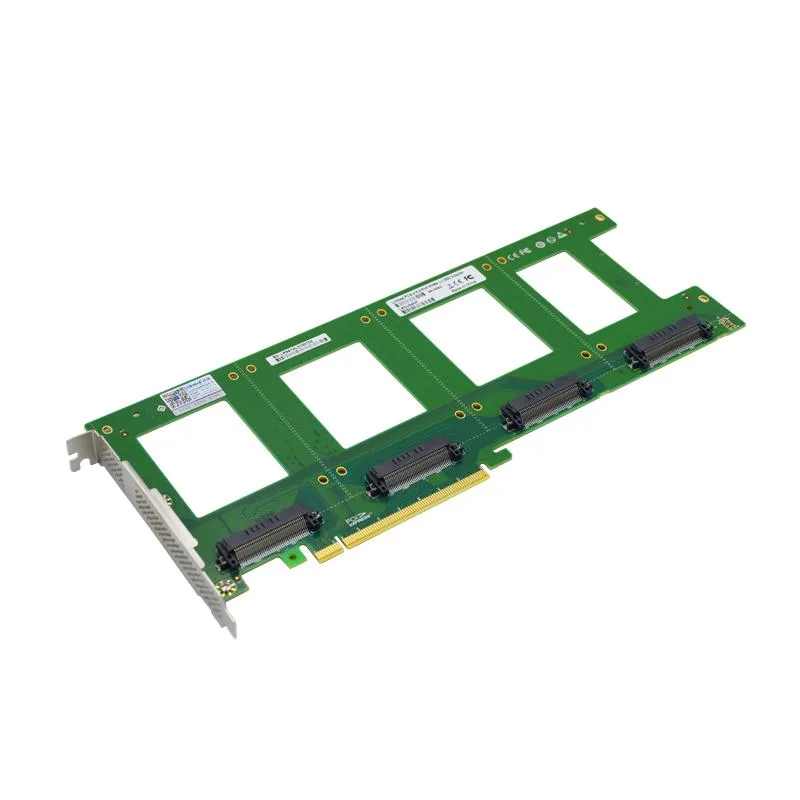

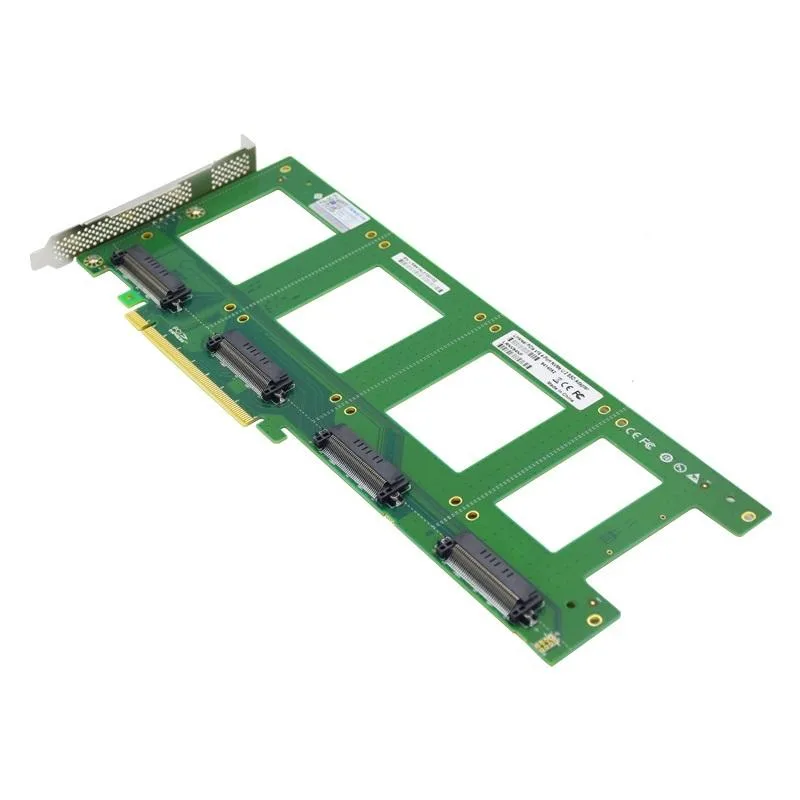

Green circuit board with four U.2 ports and PCIe x16 edge connector

eshinreal

eshinreal PCIe to 4× U.2 NVMe SSD Adapter (SFF-8639)

SKU CH-JCKV-NJDV3

Adds four U.2 NVMe bays over a PCIe 3.0/4.0 x16 slot, requiring motherboard bifurcation to run all drives at full speed

  • Supports four U.2 NVMe SSDs simultaneously
  • PCIe 3.0 and 4.0 x16 host interface
  • Requires motherboard PCIe bifurcation for full operation
  • 5 inch NVMe U.2 SSD bootable with BIOS support
  • No driver installation needed for Windows, Linux, Server 2012 R2

PCIe to 4× U.2 NVMe SSD Adapter

This add-on card connects up to four U.2 NVMe solid-state drives through a single PCIe x16 slot. It is built for workstation and server builders who need high-density, enterprise-grade storage without occupying multiple expansion slots. The card requires a motherboard that supports PCIe bifurcation to address all four drives simultaneously.

Installation requires bifurcation support

No driver installation is needed for Windows 10, Windows 8, Windows Server 2012 R2 or Linux operating systems. The card fits a standard PCIe x16 slot and uses SFF-8639 connectors for the 2.5 inch drives. The motherboard without PCIe signal split can only recognize one SSD, so bifurcation must be enabled in the BIOS before all four drives become visible.

Verify motherboard bifurcation capability

Check that your motherboard firmware offers PCIe bifurcation options such as x4/x4/x4/x4 for the target slot. Confirm the system BIOS supports booting from a U.2 NVMe device if you plan to use one as the primary OS drive. Ensure the chassis has enough physical space and cooling for four 2.5 inch drives mounted on the adapter.

Helstu kostir

  • Supports four U.2 NVMe SSDs simultaneously
  • PCIe 3.0 and 4.0 x16 host interface
  • Requires motherboard PCIe bifurcation for full operation
  • 5 inch NVMe U.2 SSD bootable with BIOS support
  • No driver installation needed for Windows, Linux, Server 2012 R2

Tæknilýsing

Engin birt tæknilýsing fyrir þessa vöru enn.

Spurningar um þessa vöru

How do I confirm all four U.2 NVMe SSDs are recognised after installing the PCIe x16 adapter?

Enter the motherboard BIOS and verify that four distinct NVMe drives appear; if only one shows, the board lacks PCIe bifurcation support.

What comes with the eshinreal quad U.2 adapter and what must I source separately?

The card provides four SFF-8639 U.2 ports; you must supply four 2.5" U.2 NVMe SSDs and a motherboard with PCIe 3.0/4.0 x16 bifurcation.

Which version of the adapter should I choose for a motherboard that supports PCIe 4.0 x16 bifurcation?

This single model handles both PCIe 3.0 and 4.0 x16 links; select it if your board can split the x16 slot into four x4 lanes.
