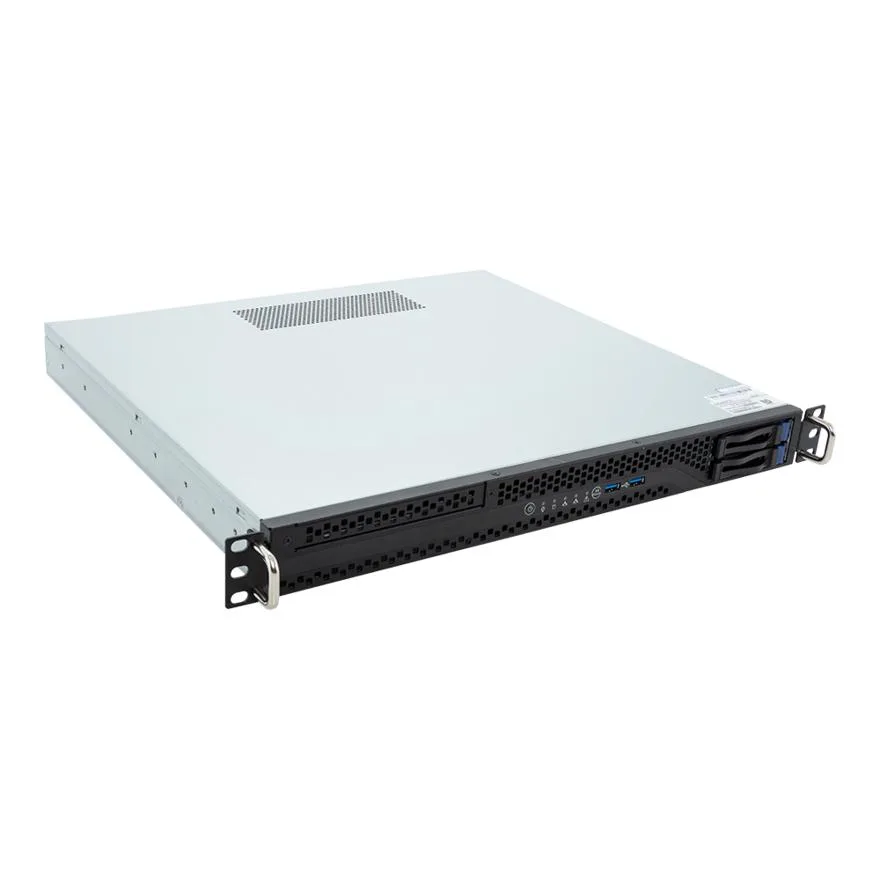

Silver 1U rackmount server chassis with four 2.5-inch SATA drive bays front and rear

GIGABYTE

GIGABYTE R113-C10-AA01 barebone server 1U 4-bay SATA 350W

SKU CH-9CND-KRYGT MPN R113-C10-AA01

A 1U rackmount barebones server supporting AMD EPYC and Ryzen processors with four 2.5-inch SATA bays, DDR5 memory slots, PCIe Gen5 expansion, dual 1GbE LAN, and a 350W 80 PLUS Bronze power supply

  • Form Factor1U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupports AMD EPYC 4005 Series, AMD EPYC 4004 Series, AMD Ryz
  • CPU SocketAM5
  • Installed CPUNo CPU Installed
  • Max Processors1
  • Supports AMD EPYC 4005, 4004 and Ryzen 9000, 7000 series CPUs
  • Dual-channel DDR5 ECC and non-ECC UDIMM across four DIMM slots
  • Two 1 Gb/s LAN ports driven by Intel I210-AT controllers
  • Four 2.5-inch SATA bays: two hot-swap and two internal
  • Single 350 W 80 PLUS Bronze power supply included

1U barebone for AMD EPYC and Ryzen CPUs

The GIGABYTE R113-C10-AA01 is a 1U rackmount server barebone designed for general-purpose workloads. It accepts a single AMD EPYC 4005, 4004, Ryzen 9000 or Ryzen 7000 series processor in an AM5 socket with a TDP up to 105W. The system ships without a CPU or memory installed, allowing integrators to choose components that match their performance and budget targets.

Upgrades from older AM4

Moving to this barebone makes sense when you need DDR5 memory support, PCIe Gen5 connectivity and the option to run server-grade EPYC processors alongside consumer Ryzen chips. The jump is worth it for builders who require ECC UDIMM support across four 288-pin slots running dual-channel at up to 5600 MT/s with one DIMM per channel, or 3600 MT/s when fully populated, depending on the chosen CPU series.

Four SATA bays and one PCIe Gen5 x16 slot set

Storage is limited to two hot-swap and two internal 2.5-inch SATA drives with RAID 0, 1, 10 support, plus a single M.2 slot wired for PCIe Gen5 x4 from the CPU. Networking is fixed at two 1GbE ports via Intel I210-AT controllers. A single full-height, half-length PCIe Gen5 x16 slot provides the only add-in card option, powered by a 350W 80 PLUS Bronze supply that caps total system draw.

Helstu kostir

  • Supports AMD EPYC 4005, 4004 and Ryzen 9000, 7000 series CPUs
  • Dual-channel DDR5 ECC and non-ECC UDIMM across four DIMM slots
  • Two 1 Gb/s LAN ports driven by Intel I210-AT controllers
  • Four 2.5-inch SATA bays: two hot-swap and two internal
  • Single 350 W 80 PLUS Bronze power supply included

Tæknilýsing

BrandGIGABYTE
ModelR113-C10-AA01
Form Factor1U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupports AMD EPYC 4005 Series, AMD EPYC 4004 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series Processors
CPU SocketAM5
Installed CPUNo CPU Installed
Max Processors1
CPU FeaturesTDP up to 105W
North BridgeAMD B650E
Memory Slots4 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type SupportedAMD EPYC 4005 / Ryzen 9000:
UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC 4004 / Ryzen 7000:
UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Channel SupportedDual Channel
Installed HDDNo Storage Installed
SATA RAIDRAID 0/1/10
M.21 x M.2 (2242/2280), PCIe Gen5 x4, from CPU
GPU/VPUAspeed AST2600
PCI Express1 x FHHL x16 (Gen5 x16), from CPU
First LANIntel I210-AT
Max. LAN Speed1 Gigabit
2.5" BaysFront hot-swap:
2 x 2.5" SATA
Internal:
2 x 2.5" SATA
Buttons1 x Power button
1 x Reset button
LEDs1 x Power LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Front USB2 x USB 3.2 Gen1 ports (Type-A)
COM1
VGA1
Rear USB2 x USB 3.2 Gen1 ports (Type-A)
RJ452
Other Ports1 x MLAN port
1 x ID button with LED
Max. PowerSingle 350W 80 PLUS Bronze power supply
System CompatibilityEPYC 4005/4004 Series:
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022
Windows Server 2025
Ryzen 9000/7000 Series:
Windows 10 21H2
Windows 11
Fans3 x 40x40x56mm (29,700/24,700rpm)
TemperatureOperating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8% to 80% (non-condensing)
Non-operating humidity: 20% to 95% (non-condensing)
Dimensions1.71" x 16.93" x 15.48"
Weight13.76 lbs.
Sendingarþyngd7.44 kg
Stærð sendingar597 × 521 × 152 mm

Spurningar um þessa vöru

What rack depth and bay sizes does the 1U chassis accept?

The 1U rackmount body has two 2.5" SATA hot-swap bays at the front and two 2.5" SATA internal bays behind them.

How do I install the CPU and memory, and what step is often missed?

Fit an AM5 processor up to 105W TDP, then populate the four 288-pin DDR5 UDIMM slots in dual-channel pairs; the step often missed is enabling ECC in the BIOS when using ECC modules.

Which drive types will need replacement first, and what are the limits?

The four 2.5" SATA bays and the single M.2 2242/2280 slot with PCIe Gen5 x4 will take replacement drives; SATA RAID 0/1/10 is supported on the four bays.
