Black 1U rackmount server chassis with aluminium front bezel, two USB 2.0 ports, power and reset buttons, status LEDs

iStarUSA Inc.

iStarUSA Inc. D-118V2-ITX-30FX8 1U server chassis 300W 80Plus

SKU CH-G5C3-BGB4P MPN D-118V2-ITX-30FX8

1U rackmount server chassis for mini-ITX boards with 300W 80Plus PSU, one 3.5" bay and front USB 2.0

  • Chassis TypeRackmount
  • Form Factor1U
  • ColorBlack
  • Case MaterialMetal / Aluminum
  • Motherboard Compatibility6.7 x 6.7 (mini-ITX)
  • Power Supply300W 80Plus

Model D-118V2-ITX-30FX8

  • D118ITX-30
  • D-118V2-ITX
  • D-118V2-ITX-30FX8
  • D-118V2-ITX-DT

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • 1U rackmount form factor fits standard 19.00" cabinets
  • 300W 80Plus power supply delivers efficient server operation
  • Mini-ITX 6.7 x 6.7 motherboard support enables compact builds
  • Front 2 x USB2.0 ports provide easy peripheral access
  • Aluminum front bezel and metal chassis ensure durable construction

1U rackmount chassis for mini-ITX builds

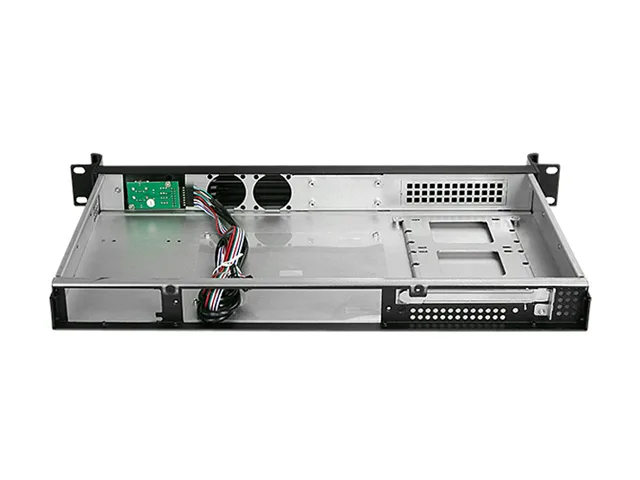

This 1U server chassis fits a 6.7 x 6.7 inch mini-ITX motherboard and includes a 300W 80Plus power supply. It is designed for compact rackmount deployments where space is limited. The unit ships new in a black metal and aluminum enclosure.

Aluminum front bezel with single expansion slot

The front bezel is aluminum and provides two USB 2.0 ports alongside power, reset, and indicator LEDs for power, drive activity, and network. Only one expansion slot is available, and using it prevents installation of a 3.5 inch drive. A standard I/O shield will not fit this chassis.

Check motherboard size

Verify your board matches the 6.7 inch mini-ITX form factor and that the single expansion slot meets your add-in card needs. Decide whether you will use one 3.5 inch drive or two 2.5 inch drives, as the 3.5 inch bay is blocked when the slot is occupied. The chassis measures 19.00 x 11.00 x 1.75 inches.

Helstu kostir

  • 1U rackmount form factor fits standard 19.00" cabinets
  • 300W 80Plus power supply delivers efficient server operation
  • Mini-ITX 6.7 x 6.7 motherboard support enables compact builds
  • Front 2 x USB2.0 ports provide easy peripheral access
  • Aluminum front bezel and metal chassis ensure durable construction

Tæknilýsing

BrandiStarUSA
ModelD-118V2-ITX-30FX8
Chassis TypeRackmount
Form Factor1U
ColorBlack
Case MaterialMetal / Aluminum
Motherboard Compatibility6.7 x 6.7 (mini-ITX)
Power Supply300W 80Plus
Internal 3.5" Drive Bays1
Expansion Slots1
Front Ports2 x USB2.0
FeaturesStandard Drive Bays: 1 x 3.5" internal or 2 x 2.5"
Indicators: Power, HDD, LAN
Switches: Power, Reset
Material of Front Bezel: Aluminum
Color of Front Bezel: Black
Color of Main Chassis: Black
*Notes: 3.5" hdd cannot be placed when expansion slot is used. Standard I/O shield will NOT fit the unit.
Dimensions19.00" x 11.00" x 1.75"
Sendingarþyngd4.54 kg
Stærð sendingar521 × 394 × 114 mm

Aðrar útgáfur af þessari vöru

3 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

Does the 80Plus 300W supply cap the power available to a full mini-ITX build?

The included 300W 80Plus unit powers the board, drives and the single expansion slot; total draw must stay within that 300W limit.

What rack depth and clearance does the 19.00 x 11.00 x 1.75 inch chassis require?

It fits a standard 19-inch rack and needs at least 11.00 inches of usable depth plus cable room behind the rear panel.

How is the motherboard secured when the standard I/O shield will not fit the unit?

Use the custom I/O shield supplied with the chassis; the board mounts on the provided standoffs for the 6.7 x 6.7 inch mini-ITX form factor.
