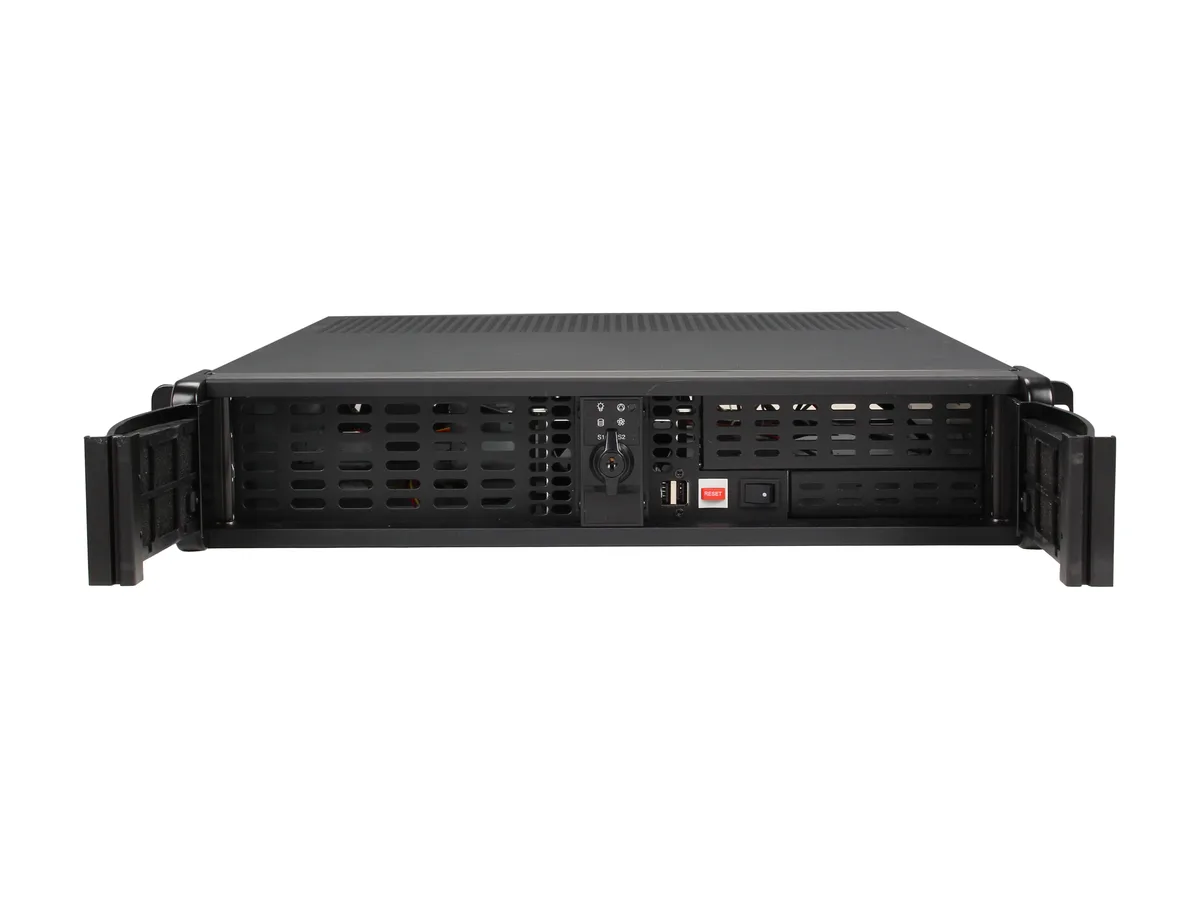

Black 2U rackmount server chassis with aluminium front bezel, single 5.25 and 3.5 inch drive bays, two USB 2.0 ports

iStarUSA Inc.

iStarUSA Inc. D-200-FS 2U Rackmount Server Chassis

SKU CH-7TH3-GM03A MPN D-200-FS

A 2U rackmount server chassis holding three 3.5" drives and one 5.25" bay with front USB 2.0 ports

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard Compatibility12" x 9.6" (ATX, microATX)
  • External 5.25" Drive Bays1

Model D-200-FS

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • Fits standard ATX boards up to 12 x 9.6 inches
  • Three 3.5-inch drives support RAID 1/0/1+0/5
  • One 5.25-inch bay for optical or hot-swap devices
  • Two front USB 2.0 ports for quick peripheral access
  • 80mm ball-bearing fan and PSU ducting keep temperatures low

Compact 2U rackmount for ATX builds

The iStarUSA D-200-FS is a 2U rackmount server chassis built from aluminium and steel in black. It accepts ATX and microATX motherboards up to 12 by 9.6 inches and fits a standard ATX power supply. Two front USB 2.0 ports and an 80 mm fan provide basic I/O and airflow.

Suits dense storage with limited expansion

This chassis works for builders who need three 3.5-inch drives in RAID 1, 0, 1+0 or 5 plus a single 5.25-inch bay for optical or hot-swap media. It is not for systems that require more than three low-profile expansion slots or additional internal drive bays beyond the two provided.

Verify motherboard depth and rail clearance

Confirm your board measures no more than 12 by 9.6 inches and that your rack can accommodate the 19.00 by 3.50 by 20.80 inch envelope. The fan and temperature indicators need the optional TC-ISF08 sensor board to function.

Helstu kostir

  • Fits standard ATX boards up to 12 x 9.6 inches
  • Three 3.5-inch drives support RAID 1/0/1+0/5
  • One 5.25-inch bay for optical or hot-swap devices
  • Two front USB 2.0 ports for quick peripheral access
  • 80mm ball-bearing fan and PSU ducting keep temperatures low

Tæknilýsing

BrandiStarUSA
ModelD-200-FS
Chassis TypeRackmount
Form Factor2U
ColorBlack
Case MaterialAluminum / Steel
Motherboard Compatibility12" x 9.6" (ATX, microATX)
External 5.25" Drive Bays1
External 3.5" Drive Bays1
Internal 3.5" Drive Bays2
Expansion Slots3
Front Ports2 x USB 2.0
80mm Fans1
FeaturesIndicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches: Power, Reset
Material:
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Air Filter: Removable & Washable
Front Mount ATX Power Supply
*Notes: Compatible with standard ATX PSU no more than 160mm in depth.
Dimensions19.00" x 3.50" x 20.80"
Sendingarþyngd11.18 kg
Stærð sendingar681 × 556 × 216 mm

Aðrar útgáfur af þessari vöru

2 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

Which standard power supply fits the chassis?

The chassis accepts a standard ATX power supply for high-power systems.

Will a full-height PCIe card fit in the three expansion slots?

Only low-profile cards fit; an optional 6-slot low-profile backplane adds more slots.

How do I confirm the temperature and fan alarms are active?

The front panel shows temperature and fan LEDs, but they require the optional TC-ISF08 sensor board to function.
