iStarUSA Inc.
iStarUSA Inc. D-350HN-T 3U rackmount server chassis 5x3.5" hotswap
A 3U rackmount chassis holding five trayless hot-swap 3.5″ bays, three internal 3.5″ bays and a slim optical bay, with front USB 3.0 ports and two 80 mm fans
- Chassis TypeRackmount
- Form Factor3U
- ColorBlack
- Case MaterialAluminum / Steel
- Motherboard Compatibility12 x 9.6 (ATX, microATX)
- Hot-Swap Drive Bays5 x 3.5"
- 5 x 3.5" hot-swap bays for fast drive changes
- trayless design simplifies installation and maintenance
- dual 80 mm fans provide active cooling
- front USB 3.0 ports give quick peripheral access
- slim 5.25" optical bay adds media flexibility
Compact 3U rackmount server chassis
The iStarUSA D-350HN-T is a 3U rackmount server chassis built for environments that need dense storage in a short-depth cabinet. Its aluminum front bezel and SGCC steel frame keep weight down while supporting standard ATX or microATX boards up to 12 x 9.6 inches.

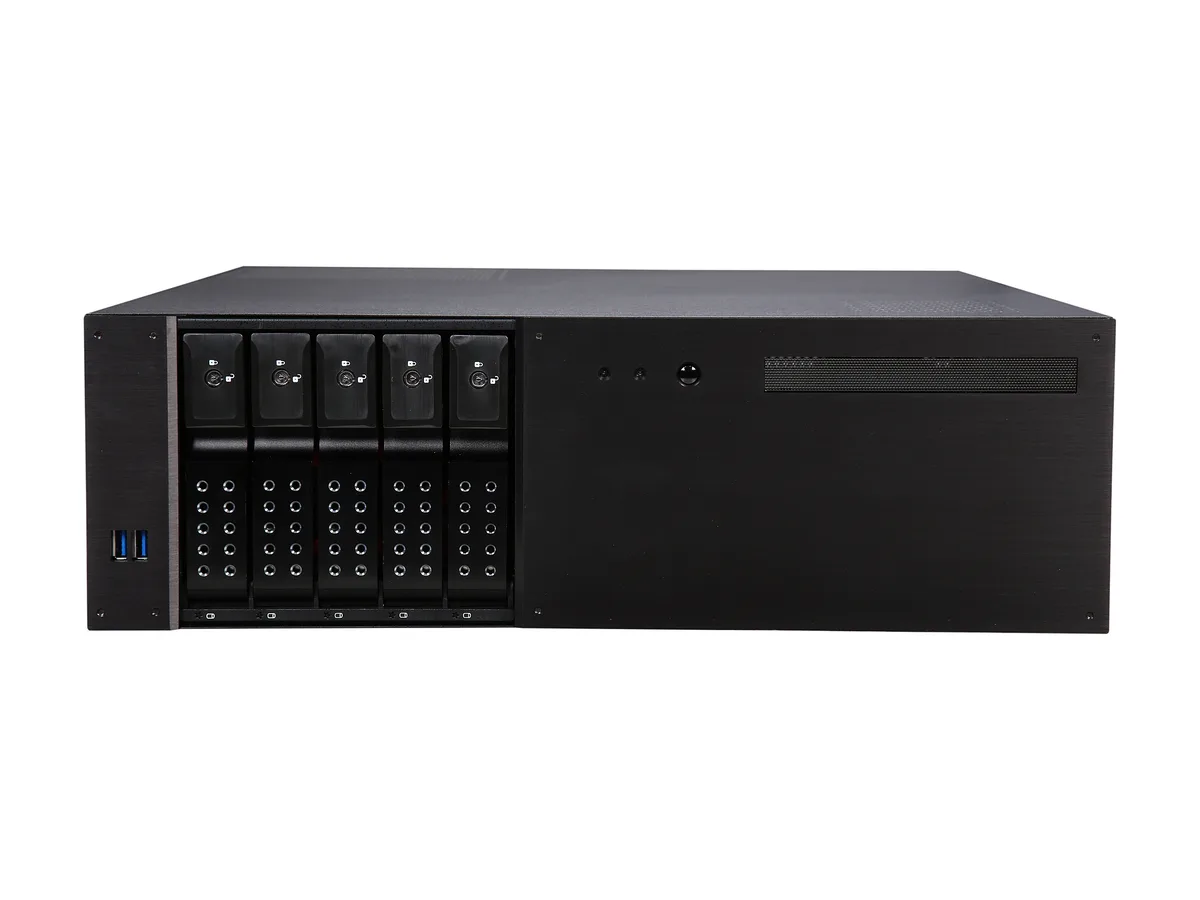

Five trayless hot-swap 3.5-inch drive bays

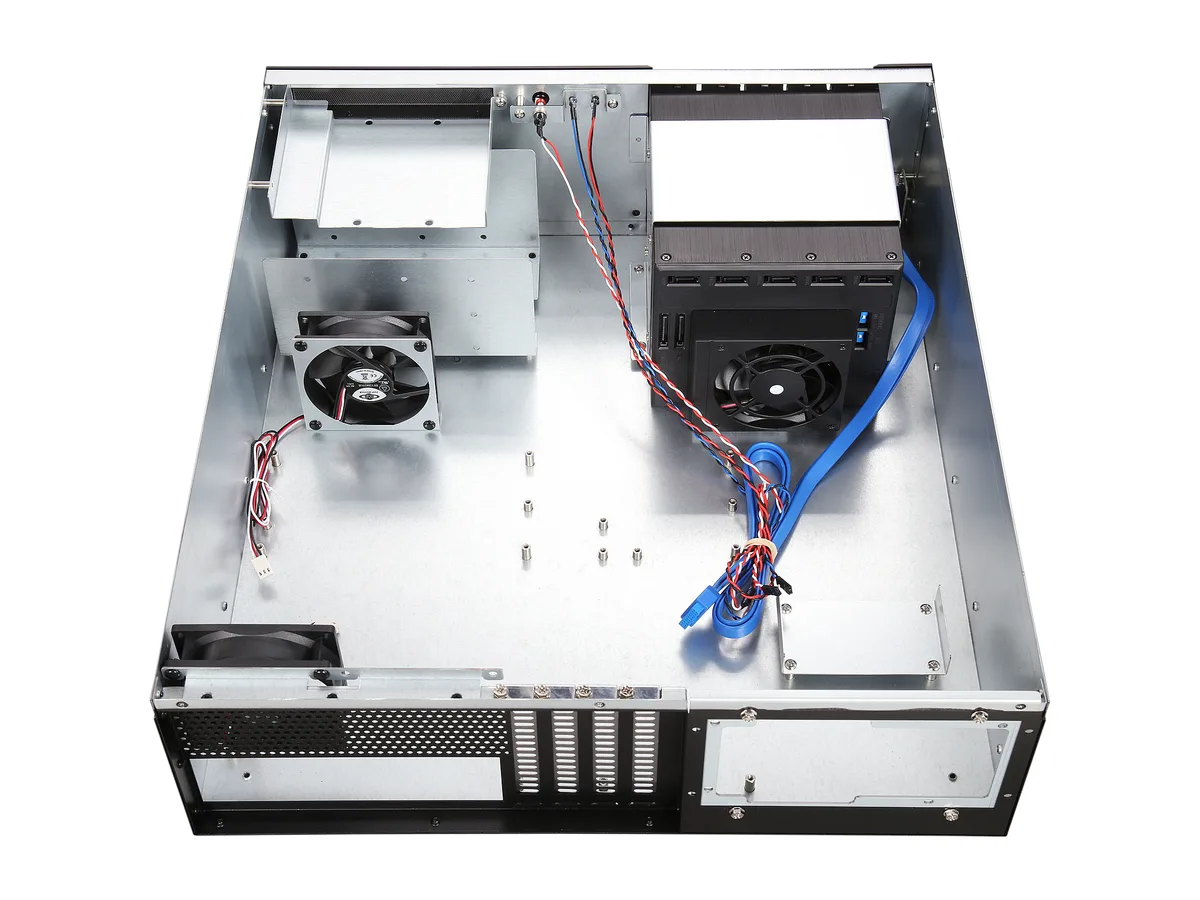

The defining feature is the front-access hot-swap backplane that accepts five 3.5-inch drives without trays, letting operators swap storage while the system runs. Three additional internal 3.5-inch bays and four expansion slots provide room for fixed drives and add-in cards.
Two 80 mm fans and front USB 3.0
Dual 80 mm fans move air through the 5.22-inch tall enclosure, adequate for moderate workloads but limited for high-heat CPUs or full-length GPUs. The slim 5.25-inch optical bay and two front USB 3.0 ports handle media and peripheral needs, while PS2 or PS3 power supplies fit the standard mounting points.
Helstu kostir
- 5 x 3.5" hot-swap bays for fast drive changes
- trayless design simplifies installation and maintenance
- dual 80 mm fans provide active cooling
- front USB 3.0 ports give quick peripheral access
- slim 5.25" optical bay adds media flexibility
Tæknilýsing
| Brand | iStarUSA |
|---|---|
| Model | D-350HN-T |
| Chassis Type | Rackmount |
| Form Factor | 3U |
| Color | Black |
| Case Material | Aluminum / Steel |
| Motherboard Compatibility | 12 x 9.6 (ATX, microATX) |
| Hot-Swap Drive Bays | 5 x 3.5" |
| Internal 3.5" Drive Bays | 3 |
| Expansion Slots | 4 |
| External Slim Drive Bays | 1 x Slim 5.25" Optical |
| Front Ports | 2 x USB 3.0 |
| 80mm Fans | 2 |
| Features | Black HDD Handle Rackmount or Desktop Convertible Compatible with PS2 or PS3 Power Supply Trayless and Hotswappable 5x 3.5" Drive Bays Slim Optical Drive Bay Available Sleek Front Panel Front 2x USB 3.0 ports Material: Material of Front Bezel: Aluminum Material of Handle: Aluminum Material of Main Chassis: SGCC 0.8mm Note: The first three ATX motherboard slots cannot be used. |
| Dimensions | 18.98" x 5.22" x 18.66" |
| Sendingarþyngd | 8.87 kg |
| Stærð sendingar | 605 × 549 × 264 mm |
Spurningar um þessa vöru
What does the 5 x 3.5" hot-swap bay count mean for my storage layout?
It provides five front-accessible trayless bays that accept 3.5-inch drives and support hot-swapping so you can add or replace drives without powering down the server.
How do the front USB 3.0 ports perform in daily use?
The two front USB 3.0 ports run at the 3.0 specification, giving up to 5 Gb/s bandwidth for fast external storage or peripherals.
What rack depth and motherboard size does the 3U chassis accommodate?
The chassis is 18.98 inches deep and fits ATX or microATX boards up to 12 x 9.6 inches, though the first three ATX expansion slots are unusable.
