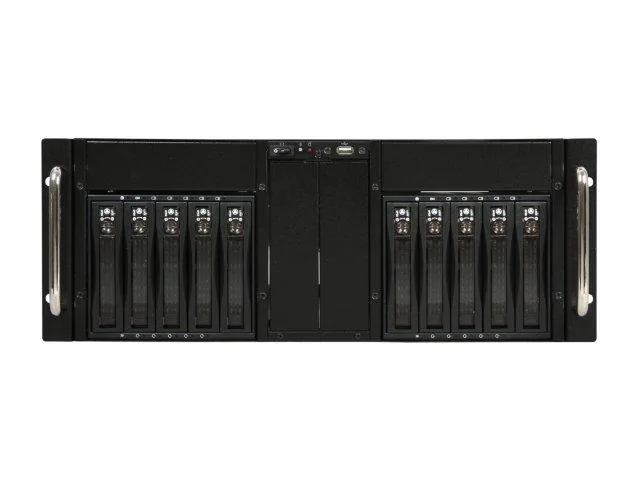

Black 4U rackmount server chassis with ten hot-swap drive bays and four 5.25-inch bays

iStarUSA Inc.

iStarUSA Inc. D-410-B10SA 4U 10-Bay Server Chassis

SKU CH-SXD3-XWW83 MPN D-410-B10SA

4U rackmount server chassis with ten hot-swap 3.5" bays, four 5.25" bays and dual 120 mm fans

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialZinc-Coated Steel
  • Motherboard Compatibility12 x 13 (E-ATX, ATX, micro-ATX)
  • External 5.25" Drive Bays4

Model D-410-B10SA

  • Ten hot-swap bays support high-density 3.5 storage
  • Four 5.25 bays add optical or accessory flexibility
  • Dual 120 mm fans deliver front-to-rear airflow
  • Zinc-coated steel frame resists corrosion in rack environments
  • E-ATX board fits up to 12 by 13 inches

4U Rackmount Storage Chassis

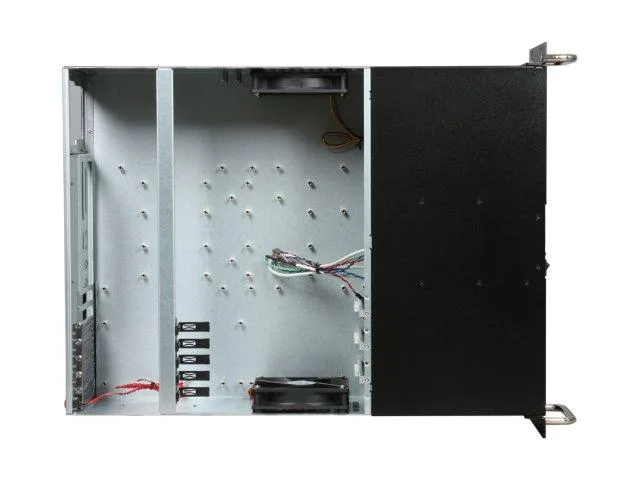

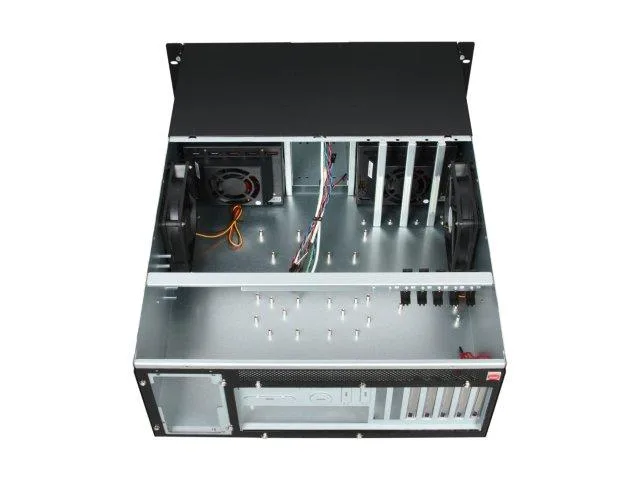

The iStarUSA D-410-B10SA is a 4U rackmount server chassis built from zinc-coated steel and finished in black. It accepts E-ATX, ATX and micro-ATX motherboards up to 12 x 13 inches and provides ten hot-swap 3.5-inch drive bays plus four external 5.25-inch bays. Two 120mm fans handle airflow while a single front USB 2.0 port offers basic connectivity. Power and HDD LEDs sit alongside power and reset switches on the front panel.

High-density SATA storage builds

This chassis suits administrators who need dense SATA I/II hard-drive capacity in a standard 19-inch rack and who can work with the ten hot-swap bays and four optical or accessory bays provided. It is not for deployments that require more than ten hot-swap slots, front-panel USB 3.0 or later ports, or tool-less drive carriers beyond the specification listed. Builds needing additional expansion slots or specialised cooling layouts should evaluate other form factors.

Ten hot-swap 3.5-inch bays

The defining specification is the ten hot-swap 3.5-inch drive bays that support SATA I/II hard drives. This bay count determines whether the enclosure meets the storage density required for the intended array. Verify that the motherboard and backplane combination can address all ten bays before purchase.

Helstu kostir

  • Ten hot-swap bays support high-density 3.5 storage
  • Four 5.25 bays add optical or accessory flexibility
  • Dual 120 mm fans deliver front-to-rear airflow
  • Zinc-coated steel frame resists corrosion in rack environments
  • E-ATX board fits up to 12 by 13 inches

Tæknilýsing

BrandiStarUSA
ModelD-410-B10SA
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialZinc-Coated Steel
Motherboard Compatibility12 x 13 (E-ATX, ATX, micro-ATX)
External 5.25" Drive Bays4
Hot-Swap Drive Bays10
Front Ports1x USB 2.0
120mm Fans2
FeaturesRoHS Compliance Version: Yes
Standard Drive Bays:
Hotswap 3.5: 10
5.25" Drives: 4
Indicators: Power, HDD
Switches: Power ON/OFF and System Reset
Supports SATA I/II Hard Drives.
Dimensions19.00" x 7.00" x 25.00"
Sendingarþyngd16.33 kg
Stærð sendingar724 × 559 × 292 mm

Aðrar útgáfur af þessari vöru

3 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

How do I verify the D-410-B10SA is operating correctly after installation?

Check that the front Power and HDD indicators light up, the two 120 mm fans spin, and all ten hot-swap 3.5" bays report drive activity in the OS.

What ships with the D-410-B10SA and what must I purchase separately?

The chassis includes the zinc-coated steel case, two 120 mm fans, front USB 2.0 port, and hot-swap backplane for ten 3.5" SATA drives; motherboard, CPU, memory, PSU and drives are not included.

Which drive-bay configuration suits a build needing maximum hot-swap capacity?

Choose the ten-bay hot-swap 3.5" layout; it provides the highest density of removable SATA storage while still leaving four external 5.25" bays for optical or accessory devices.
