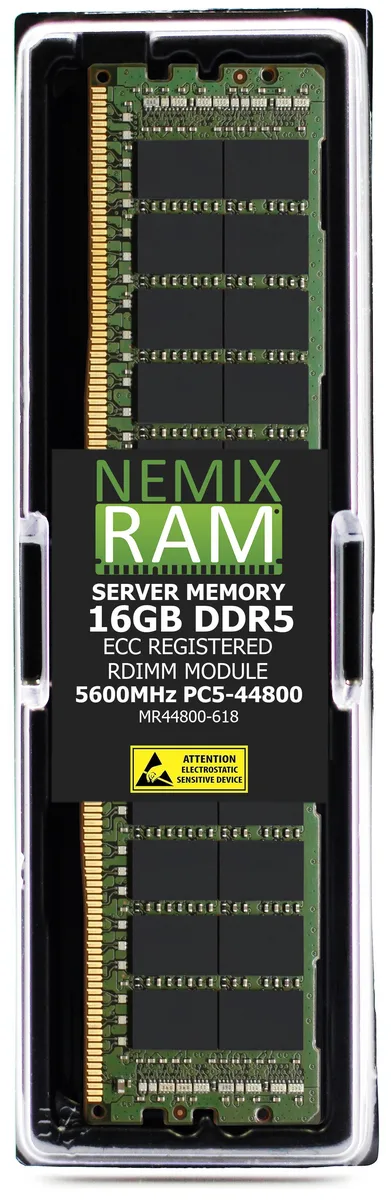

Green printed circuit board with gold edge connectors and black memory chips, no heat spreader

NEMIX RAM

NEMIX RAM 16GB DDR5 5600MHz CL46 1Rx8 ECC Registered RDIMM memory upgrade for Supermicro H14SSL-N

SKU CH-3D6D-2P916

16GB DDR5 5600MHz ECC Registered RDIMM, CL46 1.1V 288-pin, validated for Supermicro H14SSL-N motherboards

  • Capacity16GB
  • Type288-Pin DDR5 RDIMM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Voltage1.10V
  • ECCYes

Size 16GB

  • 16GB
  • 1.5TB 12X128GB
  • 1.1TB 12X96GB
  • 1TB 8X128GB
  • 768GB 6X128GB
  • 768GB 12X64GB
  • 768GB 8X96GB
  • 576GB 12X48GB
  • 576GB 6X96GB
  • 512GB 4X128GB
  • 512GB 8X64GB
  • 384GB 12X32GB
Sjá 24 stillingar til viðbótar
  • 384GB 8X48GB
  • 384GB 6X64GB
  • 384GB 4X96GB
  • 288GB 6X48GB
  • 256GB 8X32GB
  • 256GB 2X128GB
  • 256GB 4X64GB
  • 192GB 6X32GB
  • 192GB 4X48GB
  • 192GB 12X16GB
  • 192GB 2X96GB
  • 128GB 4X32GB
  • 128GB 8X16GB
  • 128GB
  • 128GB 2X64GB
  • 96GB 2X48GB
  • 96GB 6X16GB
  • 96GB
  • 64GB 2X32GB
  • 64GB 4X16GB
  • 64GB
  • 48GB
  • 32GB
  • 32GB 2X16GB

Yfirstrikaðar útgáfur eru til, en ekki til hér.

Speed 5600MHz

  • 4800MHz
  • 5600MHz
  • 6400MHz

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • Exact-match DDR5-5600 upgrade runs at rated speed
  • Verified fit for Supermicro H14SSL-N motherboard
  • Registered ECC architecture prevents silent data corruption
  • 1Rx8 1.1V CL46 specs match controller expectations
  • Lifetime replacement warranty with US technical support

Exact-Match DDR5-5600 ECC RDIMM for Supermicro

This 16 GB registered DDR5 module is built to the precise rank, voltage and timing the Supermicro H14SSL-N memory controller expects. It installs as a single 288-pin RDIMM and runs at the rated 5600 MT/s speed with CL46 latency. The ECC and registered design targets servers and workstations that require error correction and full-slot population stability.

Registered DDR5 population rules

The module uses a registered (buffered) architecture at 1.1 V, which offloads the memory controller so every slot can run fully populated at the rated frequency. Mixing registered and unbuffered DIMMs is not supported, and the board's memory-population order must be followed to achieve the rated speed. Only DDR5 RDIMMs with matching rank and timing will be recognised at full capacity.

Verify board manual for slot order

Before ordering, consult the Supermicro H14SSL-N manual for supported capacities per slot, approved DIMM population sequence and any BIOS version requirements. The system may limit total memory or require specific slot filling patterns that affect whether this 16 GB module can be used alone or in combination with other modules.

Helstu kostir

  • Exact-match DDR5-5600 upgrade runs at rated speed
  • Verified fit for Supermicro H14SSL-N motherboard
  • Registered ECC architecture prevents silent data corruption
  • 1Rx8 1.1V CL46 specs match controller expectations
  • Lifetime replacement warranty with US technical support

Tæknilýsing

BrandNEMIX RAM
SeriesNEMIX RAM Original Series Server Memory
ModelDDR5 ECC RDIMM Registered Server Memory
Part NumberMR44800-618K1
Capacity16GB
Type288-Pin DDR5 RDIMM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank1Rx8
ChipsetMajor OEM Samsung, Micron, Hynix
Heat SpreaderNo
Compatible SystemSupermicro
FeaturesDDR5 ECC RDIMM Motherboard Compatible
Package Content16GB DDR5 5600MHz PC5-44800 1Rx8 1.1V 288-PIN ECC RDIMM KIT

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

Should I choose a 1Rx8 or 2Rx8 rank for my Supermicro H14SSL-N?

This module is 1Rx8. The motherboard's manual lists the supported ranks per slot; match that rank to keep every channel running at 5600 MT/s.

What does the 5600 MT/s rating deliver once the module is installed in the server?

The board's memory controller will run this RDIMM at DDR5-5600 (PC5-44800) with CL46 latency at 1.1 V, giving the rated throughput when populated per the manual.

How does the 288-pin RDIMM interface limit speed or capacity on this platform?

The 288-pin Registered DIMM form factor is required by the H14SSL-N; it enables full-capacity population across all slots while the registered buffer keeps signal integrity at 5600 MT/s.
