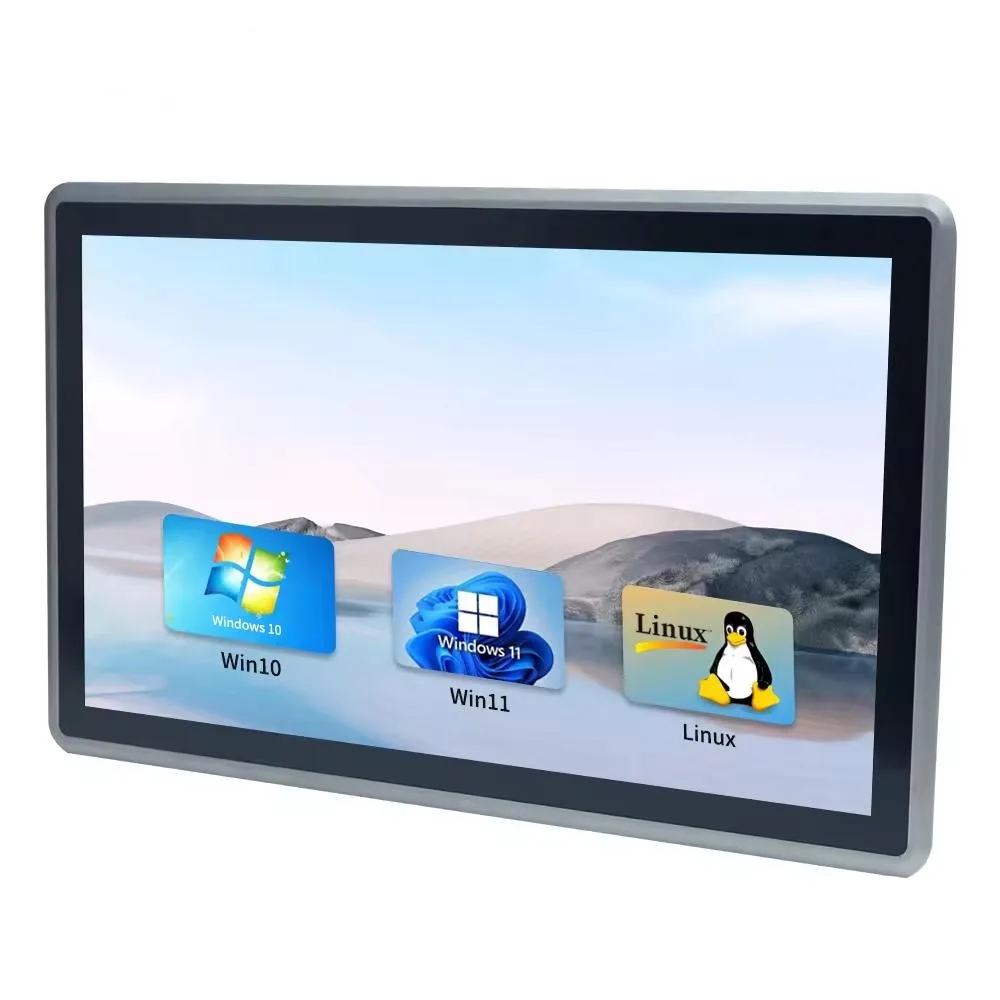

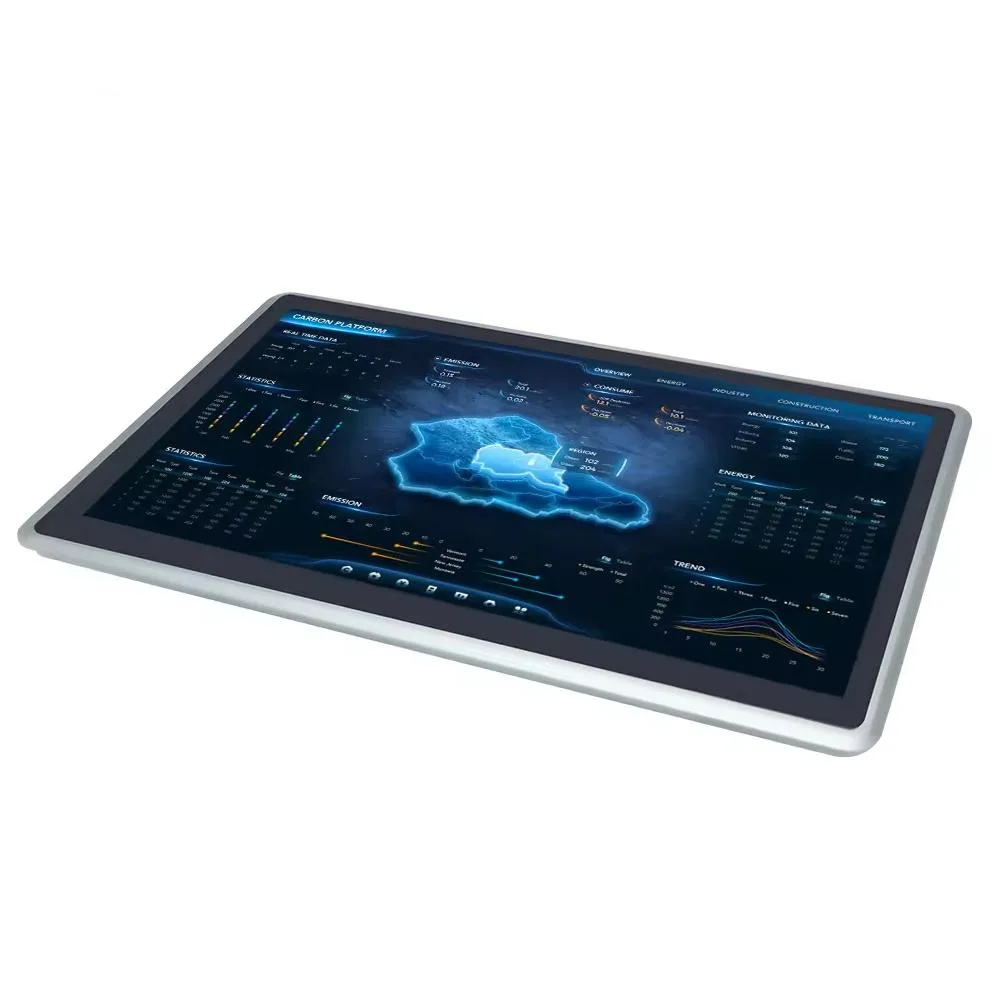

21.5 inch flat aluminium panel PC with resistive touchscreen

partaker

Partaker A22 21.5" IP65 Resistive Touch All-in-One PC i3-10110U 32GB 512GB

SKU CH-3VR9-6Y4GY

21.5" IP65 resistive touch all-in-one with Intel Core i3-10110U, 32GB DDR4 and 512GB SATA SSD for industrial 24/7 use

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i3 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i3 10th Gen

Memory Capacity 32GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water ingress
  • Resistive touchscreen rated for over 50 million touches
  • Intel Core i3-10110U up to 4.10 GHz with 32 GB DDR4
  • Fanless aluminium chassis operates silently from -20 °C to 60 °C
  • 9-36 V wide-range DC input with dual Intel LAN and four USB 3.0

Industrial 21.5″ IP65 Panel PC

The Partaker A22 is a 21.5-inch all-in-one computer with an IP65-rated front panel, resistive touchscreen and Intel Core i3-10110U processor. It ships with 32GB DDR4 memory, a 512GB SATA SSD and Windows 11 Pro pre-installed. The fanless aluminium chassis supports 7×24 operation in temperatures from 0 to 50°C commercial or -20 to 60°C industrial. It suits automation, kiosk and HMI deployments needing a sealed, compact unit.

Connectivity and expansion

Two Intel gigabit LAN ports, four USB 3.0 ports, HDMI, audio and two COM ports configurable for RS232, RS422 or RS485 provide extensive industrial I/O. A 9–36V Phoenix connector accepts wide-range DC input, while a Mini PCIe slot with SIM holder allows optional Wi-Fi or 4G modules. The bundled 12V 5A AC adapter covers standard supply needs. These interfaces let integrators connect PLCs, sensors, displays and networks without extra adapters.

Resistive touch and display limits

The 1920×1080 TFT LED panel delivers 250 cd/m² brightness with a 16:9 aspect ratio and full viewing angles. Resistive technology registers over 50 million touches and works with gloves or stylus, but only single-touch input is supported. Integrated Intel UHD Graphics drive the internal screen and one external display via HDMI. The sealed front meets IP65; the rear I/O area is not rated for liquid ingress.

Helstu kostir

  • IP65 front panel resists dust and water ingress
  • Resistive touchscreen rated for over 50 million touches
  • Intel Core i3-10110U up to 4.10 GHz with 32 GB DDR4
  • Fanless aluminium chassis operates silently from -20 °C to 60 °C
  • 9-36 V wide-range DC input with dual Intel LAN and four USB 3.0

Tæknilýsing

ModelA22-New-I3-10110U-32G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i3 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Screen Size21.5"
TouchscreenYes

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

Will the resistive touch screen need replacement after heavy use?

The resistive touch screen is rated for more than 50 million touches, so replacement is unlikely under normal industrial workloads.

What thermal limit appears first during continuous 24/7 operation?

The fanless aluminum alloy chassis is rated for 0 to 50 °C commercial and -20 to 60 °C industrial ambient temperatures; sustained loads that push the internal temperature beyond that range will throttle the Core i3-10110U first.

How much heat and noise does the fanless design produce when running all day?

With no moving fans the system is silent; the aluminum alloy case dissipates heat passively, keeping surface temperatures within the rated operating envelope while drawing up to 12 V 5 A from the 9-36 V Phoenix input.
