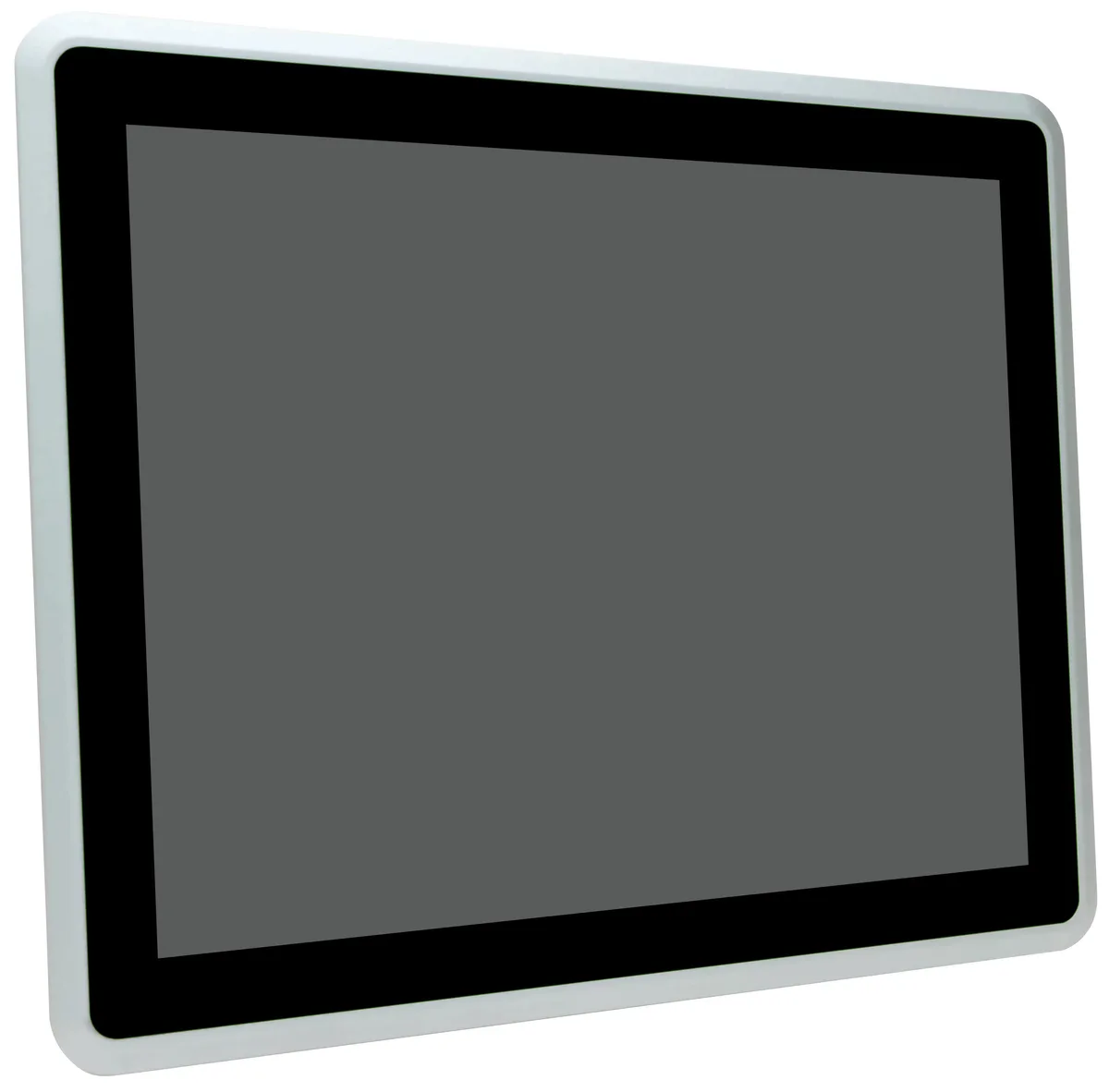

Gray 15-inch IP65 all-in-one panel PC with capacitive touchscreen and fanless aluminium chassis

partaker

partaker A27 15" IP65 all-in-one PC i3-5005U 16GB 256GB

SKU CH-QT2Q-8GDA4

15" IP65 waterproof industrial panel PC with capacitive touchscreen, Intel Core i3-5005U, 16GB DDR3, 256GB storage, dual LAN, dual COM, and HDMI output

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A27 15" Capacitive I3 5005U 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Dual Gigabit LAN ports provide reliable wired connectivity
  • 16 GB DDR3 memory handles multitasking smoothly
  • 256 GB mSATA storage offers fast solid-state performance

Industrial all-in-one for embedded control

The Partaker A27 is a 15-inch fanless panel PC with an IP65-rated front panel, Intel Core i3-5005U processor, 16 GB DDR3 memory and a 256 GB mSATA drive. Windows 10 Pro is pre-installed. The aluminium chassis operates silently from -20 °C to +60 °C, making it suitable for automation, logistics and medical environments.

Embedded mounting with dual display output

A 355 × 279 mm panel cutout secures the unit in cabinets or machine frames while the sealed front resists dust and water jets. Dual Gigabit Ethernet, two configurable COM ports, four USB ports and audio provide connectivity for PLCs, sensors and peripherals. HDMI and internal LVDS drive synchronous or asynchronous dual displays without extra cabling.

16 GB memory ceiling and 256 GB storage

Two DDR3 slots reach a 16 GB maximum, so memory-intensive HMI or SCADA tasks have fixed headroom. The single mSATA slot holds the supplied 256 GB SSD; additional local storage requires external drives. Expansion is limited to two mini PCIe slots for wireless or cellular modules, with optional GPIO and extra COM ports unavailable in the standard shipment.

Helstu kostir

  • IP65 front panel resists dust and water ingress
  • Fanless aluminium chassis runs silently without moving parts
  • Dual Gigabit LAN ports provide reliable wired connectivity
  • 16 GB DDR3 memory handles multitasking smoothly
  • 256 GB mSATA storage offers fast solid-state performance

Tæknilýsing

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size15"
Screen TypeMulti-Touch Screen

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

How hot does the front panel get under continuous operation at 60°C ambient?

The unit is rated for 0 to +60°C ambient with solid-state storage and surface air flow; the fanless aluminum chassis dissipates heat without active cooling.

What is the acoustic profile when running 24/7 in a dusty enclosure?

The fanless design produces zero mechanical noise; the IP65 front panel seals out dust so no internal fans are required for cooling.

Which mounting cutout and voltage supply must the cabinet already provide?

A 355×279 mm panel cutout for embedded installation and a 12 V DC source (optionally 9–36 V wide-range) are required.
