Gray 17-inch all-in-one panel PC with flat capacitive touchscreen and fanless aluminum chassis

partaker

Partaker A29 all-in-one PC 17" i5-6200U 32GB 512GB

SKU CH-KJHK-38V97

A 17-inch industrial all-in-one with IP65 front panel, fanless cooling, capacitive touch screen, Intel Core i5-6200U, 32GB DDR4, 512GB SATA SSD, dual LAN, four USB 3.0, two COM ports.

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 6th Gen
  • CPU NameIntel Core i5-6200U

A29 17" Capacitive I5 6200U 32GB RAM / 512GB SSD

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports for industrial connectivity
  • 32 GB DDR4 and 512 GB SSD deliver responsive multitasking
  • Capacitive touch rated beyond 50 million touches for long-term HMI use

Industrial all-in-one for automation

The Partaker A29 is a 17-inch industrial panel PC built for continuous automation and HMI tasks. Its IP65-rated flat front panel resists dust and water jets, while the fanless aluminium chassis runs silently across a -20 °C to 60 °C range. A capacitive touch screen rated beyond 50 million touches ensures long-term reliability. Windows 11 Pro ships pre-installed on the 512 GB SSD.

Sustained load in harsh environments

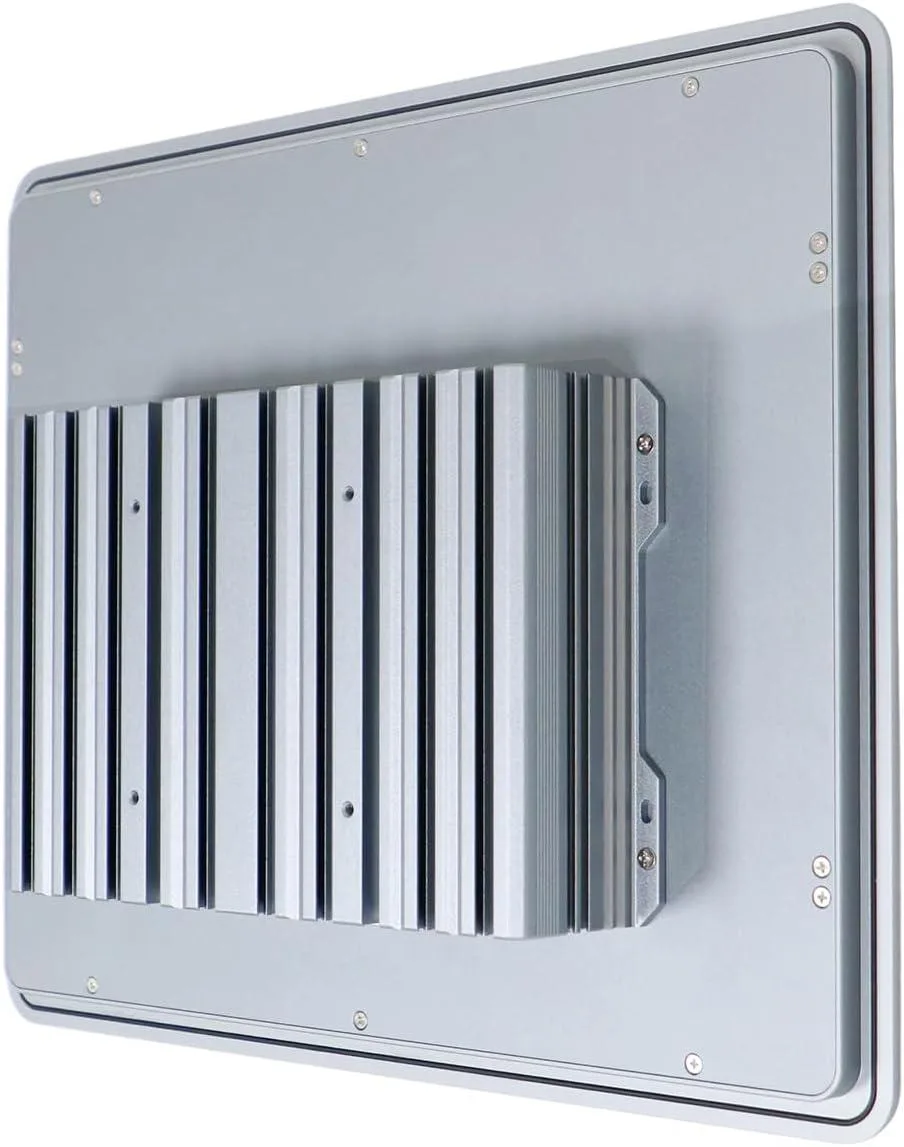

Passive cooling eliminates moving parts, so performance stays consistent during 24/7 operation without dust buildup or fan failure. The Intel Core i5-6200U and 32 GB DDR4-2133 memory handle steady PLC, SCADA or gateway workloads without thermal throttling. Dual gigabit LAN ports maintain redundant network links, and the watchdog timer (0-255 level) auto-recovers from software hangs. Wide 9-36 V DC input option supports unstable power grids.

Upgrade from legacy panel PCs

This unit replaces older 4:3 or 5:4 industrial displays that lack touch, modern I/O or wide-temperature tolerance. The jump is worth it when you need dual COM ports for RS232/485, four USB 3.0 sockets and Mini PCIe expansion for wireless modules in one sealed enclosure. Embedded, wall, desktop or cantilever mounting fits existing cut-outs (389 × 321 mm). Buyers who need a larger screen, higher resolution or GPU acceleration should look elsewhere.

Helstu kostir

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports for industrial connectivity
  • 32 GB DDR4 and 512 GB SSD deliver responsive multitasking
  • Capacitive touch rated beyond 50 million touches for long-term HMI use

Tæknilýsing

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 6th Gen
CPU NameIntel Core i5-6200U
Screen Size17"
Screen TypeMulti-Touch Screen

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

How quiet and cool does the fanless aluminium chassis stay when the i5-6200U runs 24/7?

The passive aluminium cooling produces zero fan noise and is rated for continuous operation from -20 °C to 60 °C with an SSD installed, so the system stays silent and thermally stable around the clock.

Which mounting hardware and power source must I already have to install the A29?

The box includes four embedded mounting clips and a 12 V DC power supply with an AC cord; you only need to provide the mounting surface (panel cut-out 389 × 321 mm) and a 100–240 V AC outlet.

Will my existing RS-232 and RS-485 devices plug straight into the two COM ports?

Yes — both COM ports support RS232/RS485, so legacy serial equipment connects directly without adapters.
