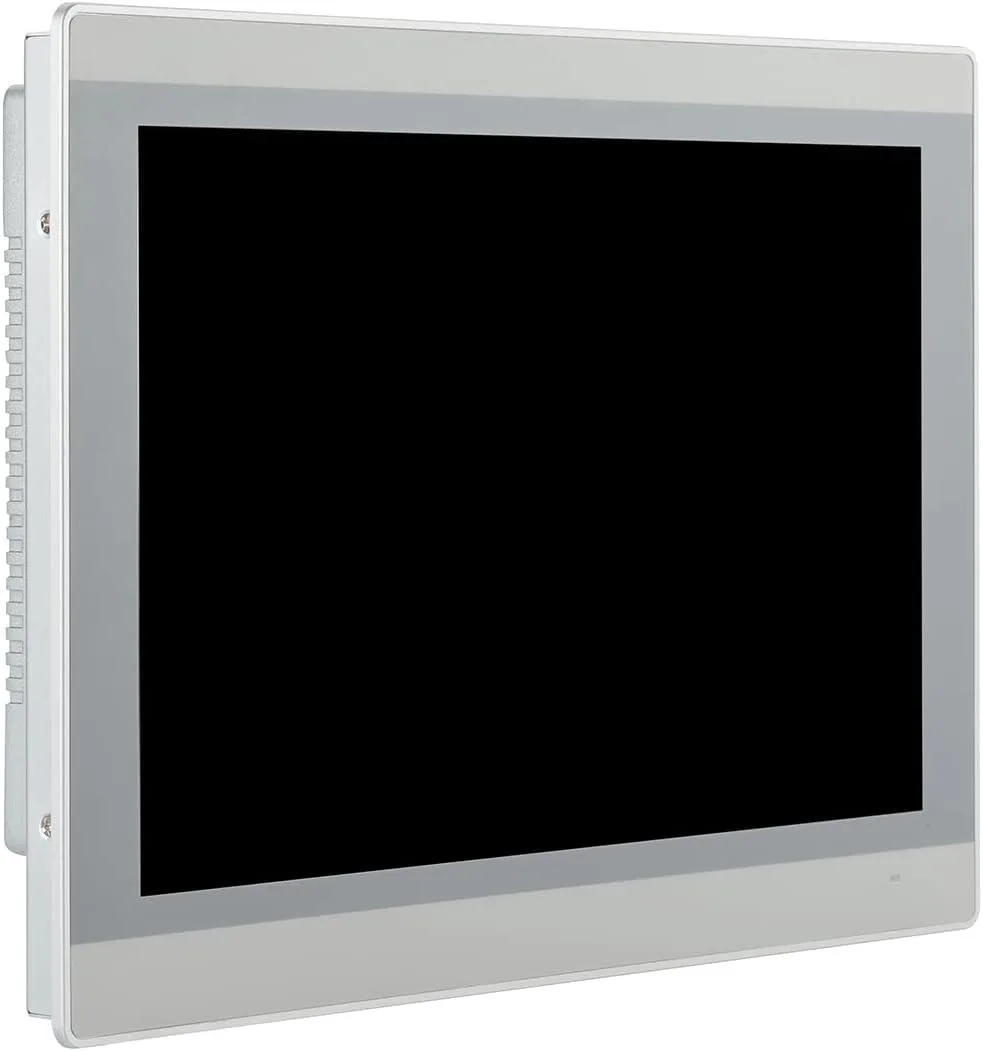

Silver 13.3 inch all-in-one panel PC with resistive touchscreen and fanless aluminium chassis

partaker

Partaker A3 13.3" All-in-One PC i5 4th Gen 8GB DDR3 512GB SSD

SKU CH-8FQX-2DBKJ

Compact 13.3-inch all-in-one PC with IP65 front panel, 4th generation Intel Core i5, 8GB DDR3, 512GB SSD and fanless aluminium cooling

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 4th Gen
  • GPU/VGA TypeIntel HD Graphics 4400
  • Memory Capacity8GB DDR3

CPU Type Intel Core i5 4th Gen

GPU/VGA Type Intel HD Graphics 4400

Memory Capacity 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 512GB

HDD None

  • None
  • 1TB

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for continuous 24/7 operation
  • 5-wire resistive touchscreen works with gloves and survives 35 million touches
  • Intel Core i5 4th Gen with 8GB DDR3 handles industrial workloads
  • 512GB SSD plus mSATA and 2.5" SATA bays for flexible storage

Industrial Panel PC

The Partaker A3 is a 13.3 inch all-in-one computer built around a fourth-generation Intel Core i5 processor with Intel HD Graphics 4400. It ships with 8GB of DDR3L memory and a 512GB SSD, running Windows 10 Pro. An IP65-rated front panel protects the TFT LED display and its five-wire resistive touchscreen, while a fanless aluminium chassis enables silent 24/7 operation in embedded or wall-mounted installations.

Replacing legacy panel PCs

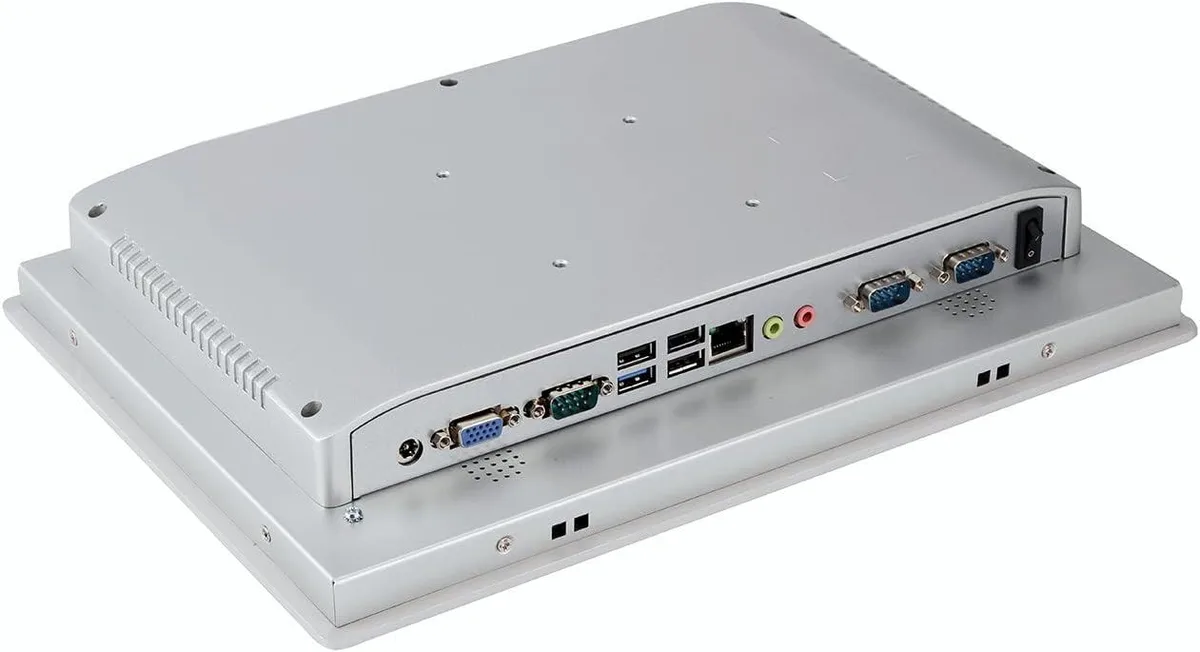

This unit upgrades older industrial terminals that lack modern I/O or solid-state storage. The jump is worth it when an application needs HDMI and VGA video outputs, dual USB 3.0 and 2.0 ports, two COM ports, LAN, audio jacks and a Mini PCIe slot for wireless expansion. The 1280 by 800 resolution screen with 300 cd/m2 brightness and 800:1 contrast replaces dimmer, lower-contrast panels in machine-interface and kiosk roles.

Suited for embedded automation

Integrators who need a compact, rugged panel PC with wide operating temperatures from 0 to 50°C and flexible mounting options will fit this into cabinets, cantilevers or desktop stands. Buyers who require a capacitive multi-touch screen, higher-resolution displays, active cooling for sustained heavy loads, or internal 2.5 inch drive bays beyond the single SATA slot should evaluate alternative platforms.

Helstu kostir

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium cooling runs silently for continuous 24/7 operation
  • 5-wire resistive touchscreen works with gloves and survives 35 million touches
  • Intel Core i5 4th Gen with 8GB DDR3 handles industrial workloads
  • 512GB SSD plus mSATA and 2.5" SATA bays for flexible storage

Tæknilýsing

ModelA3-PA-133TPC-CE5A(I54)-8G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 4th Gen
GPU/VGA TypeIntel HD Graphics 4400
Memory Capacity8GB DDR3
SSD512GB
HDDNo
Screen Size13.3"
TouchscreenYes

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What are the exact cut-out dimensions for the 326 x 232 mm opening hole?

The panel requires a rectangular cut-out of 326 mm wide by 232 mm high for embedded mounting.

How is the 12 V DC power connected, and which step is often missed?

Connect the supplied AC-to-DC adapter to the 12 V DC jack; the step often missed is securing the cable with the embedded buckle kits so vibration cannot unseat the plug.

When will the resistive touch layer need replacement?

The five-wire resistive screen is rated for 35 million touches; plan replacement once the touch count approaches that figure.
