Gray 21.5 inch industrial all-in-one PC with flat IP65 front panel and resistive touch screen

partaker

Partaker A30 21.5" IP65 Resistive All-in-One PC i3-5005U 4GB 128GB

SKU CH-6V73-X9M74

A 21.5" IP65-rated fanless all-in-one with resistive touch, dual LAN, four USB 3.0, dual COM and Windows 11 Pro for industrial automation

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i3 5th Gen
  • CPU NameIntel Core i3-5005U

A30 21.5" Resistive I3 5005U 4GB RAM / 128GB SSD

  • IP65 front panel resists dust and water jets in harsh environments

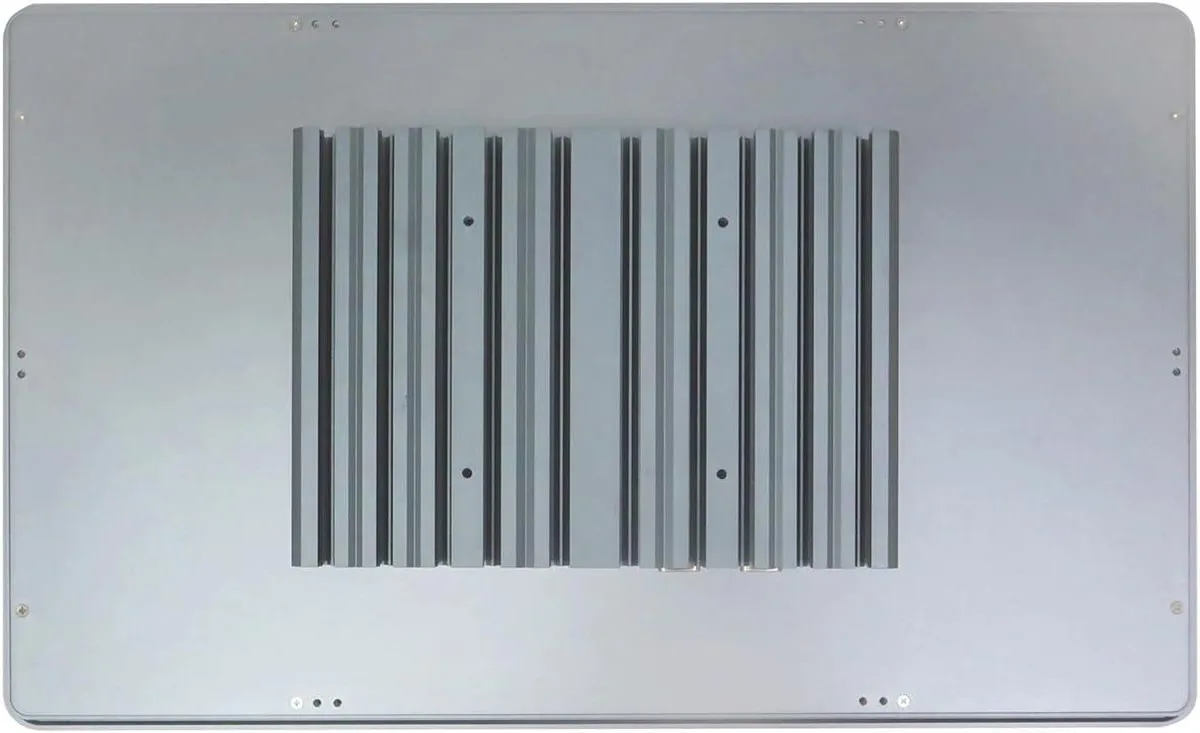

  • Fanless aluminium cooling enables silent 24/7 operation from -20 °C to 60 °C
  • Resistive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports provide extensive industrial connectivity
  • Dual storage with mSATA and 2.5" SATA allows flexible capacity upgrades

Industrial All-in-One with IP65 Front Panel

The Partaker A30 is a 21.5 inch industrial panel PC built around an Intel Core i3-5005U processor with 4GB of DDR3L memory and a 128GB SSD. Its flat front panel carries an IP65 rating for dust and water resistance, while the resistive touch screen is rated for over 50 million touches. Windows 11 Pro comes pre-installed on the fanless aluminium chassis.

Suited for Factory Automation and HMI Roles

This unit targets integrators who need a compact, sealed display for machine interfaces, process visualisation or SCADA clients in environments with dust, moisture or wide temperature swings. The dual COM ports support RS232 and RS485 for legacy PLC links, and two Mini PCIe slots allow wireless expansion. Buyers who require a capacitive multi-touch surface, higher compute performance, or a standard consumer warranty should evaluate other platforms.

Sustained Operation in Extended Temperature Range

Passive cooling enables silent 24/7 operation from -20°C to 60°C when equipped with an SSD, with humidity tolerance from 5% to 95% non-condensing. The fanless design eliminates moving parts that could fail in contaminated atmospheres, and the watchdog timer with 255 levels provides automatic recovery from software hangs. Dual Gigabit LAN ports support redundancy for continuous network connectivity during long shifts.

Helstu kostir

  • IP65 front panel resists dust and water jets in harsh environments
  • Fanless aluminium cooling enables silent 24/7 operation from -20 °C to 60 °C
  • Resistive touch rated for over 50 million touches ensures long HMI life
  • Dual Gigabit LAN plus four USB 3.0 ports provide extensive industrial connectivity
  • Dual storage with mSATA and 2.5" SATA allows flexible capacity upgrades

Tæknilýsing

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i3 5th Gen
CPU NameIntel Core i3-5005U
Screen Size21.5"
Screen TypeMulti-Touch Screen

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

Do I need to provide my own 12 V DC power source or does the included AC adapter cover 100-240 V input?

The unit ships with an AC-to-DC adapter that accepts 100-240 V AC and outputs 12 V DC, so no separate power supply is required.

Can I keep using my existing RS-485 devices on the two COM ports?

Yes, both COM ports support RS-232 and RS-485, so legacy serial equipment connects directly.

How can I verify the resistive touch layer is functioning correctly after installation?

The touch controller registers each press; a single-finger tap anywhere on the 1920×1080 screen should move the cursor immediately.
