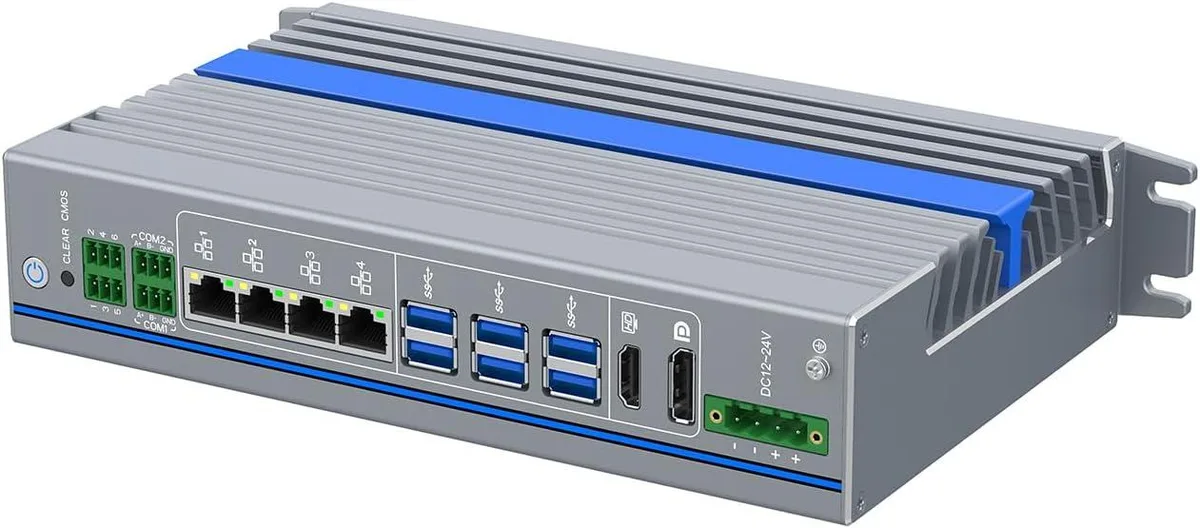

Gray fanless aluminium book-style mini PC, 265 x 146 x 50 mm

partaker

partaker I24 Core i5 12500T Q670 16G 512G barebone mini PC

SKU CH-X1S1-SSYDZ

Fanless aluminium mini PC with a 6-core Intel Core i5 12500T, Q670 chipset, 16 GB DDR5, 512 GB SSD, four Gigabit LAN ports, dual 4K video outputs and six USB 3.0 ports for industrial automation

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I24 Q670 I5 12500T 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Core i5-12500T with 6 cores and 12 threads reaches 4.40 GHz
  • Dual DDR5 4800 SODIMM slots support up to 64 GB memory
  • M.2 2280 slot accepts NVMe or SATA SSD plus mSATA expansion

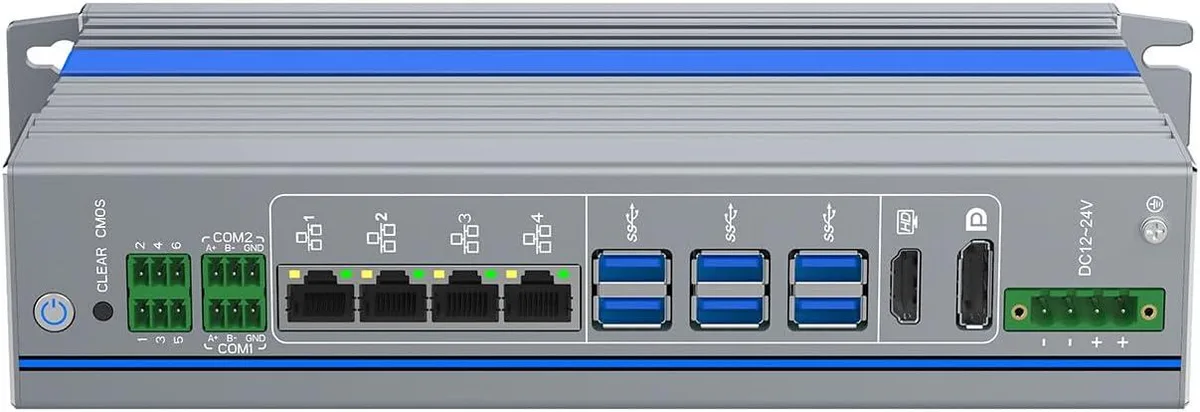

  • Four Gigabit LAN ports plus dual 4K 60 Hz video outputs

Industrial Fanless Mini PC for Edge Computing

The Partaker I24 barebone mini PC ships new with an Intel Core i5 12500T processor, Q670 chipset, 16 GB of DDR5 memory and a 512 GB SSD. Its fanless aluminium chassis operates from minus 20 to 50 degrees Celsius and supports 5 to 95 percent humidity. The system is built for continuous industrial automation, medical imaging and logistics deployments where silent, dustproof operation is required.

Suits Builders Needing Dense I/O

This unit fits integrators who need four Gigabit LAN ports, two optically isolated RS485 ports, six USB 3.0 ports and dual 4K display outputs on a DC 12 to 24 volt Phoenix connector. Buyers who require internal fan cooling, a smaller footprint or battery-backed mobile operation should consider other form factors.

Q670 Chipset Enables vPro and RAID Support

The Q670 platform adds Intel vPro manageability and hardware RAID capability with the supplied processor, features absent on entry-level chipsets. This single specification determines whether the platform meets managed-deployment and data-redundancy requirements.

Helstu kostir

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Core i5-12500T with 6 cores and 12 threads reaches 4.40 GHz
  • Dual DDR5 4800 SODIMM slots support up to 64 GB memory
  • M.2 2280 slot accepts NVMe or SATA SSD plus mSATA expansion
  • Four Gigabit LAN ports plus dual 4K 60 Hz video outputs

Tæknilýsing

ColorGray
CPU TypeIntel Core i5 12th Gen

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What display resolution and refresh rate does the DP and HDMI support?

Both outputs drive 3840 x 2160 at 60 Hz for dual 4K Ultra HD displays.

Which mounting methods does the 265 x 146 x 50 mm chassis support?

Desktop, DIN rail and book-style vertical flat wall-mount; the book-style bracket is included.

How do I power the unit from a 12–24 V DC source?

Connect the supply to the 4-pin Phoenix terminal; the bundled 100–240 V AC adapter provides 12 V 10 A.
