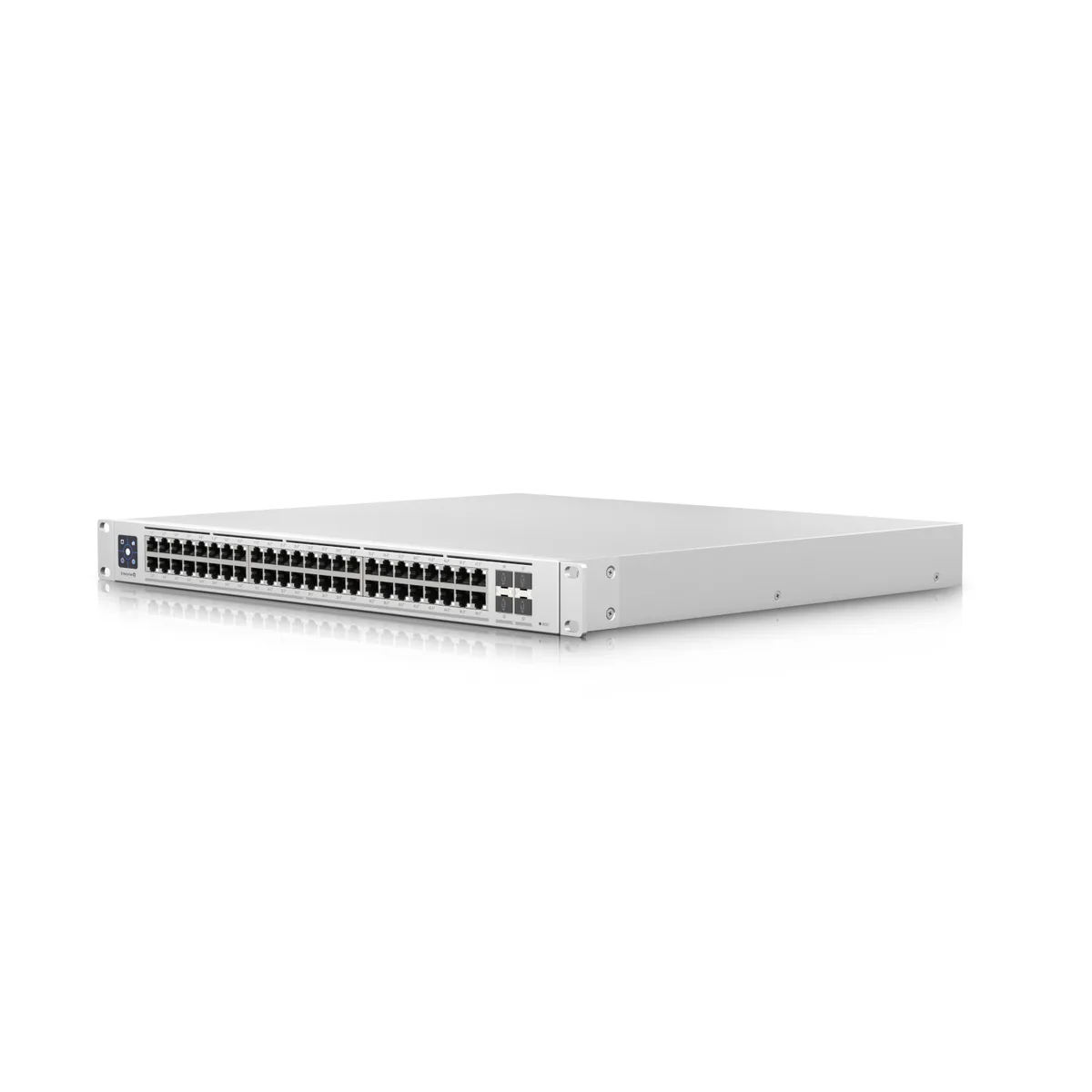

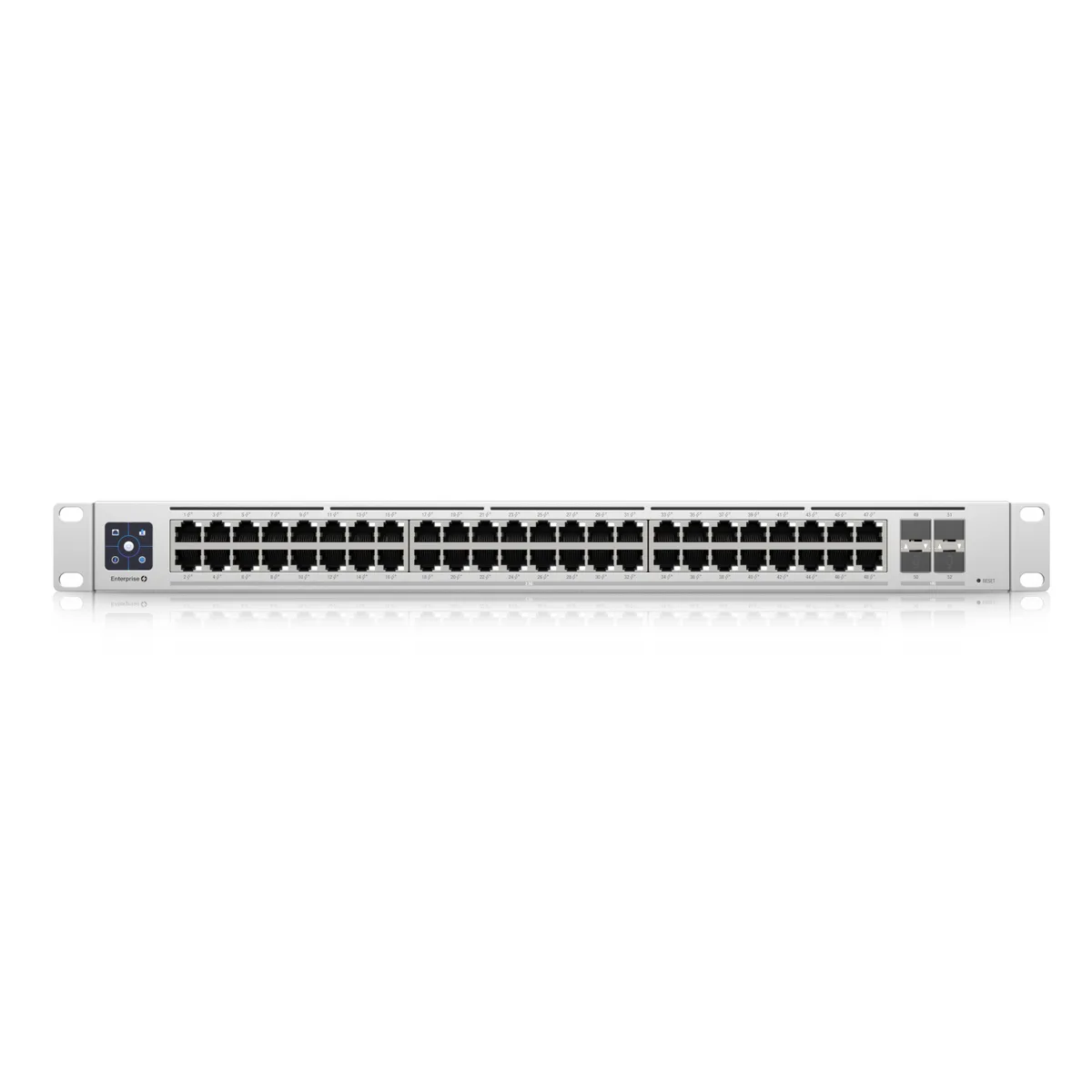

Silver rackmount network switch with 48 RJ45 ports and four SFP+ cages, front touchscreen and status LEDs

Ubiquiti Networks

Ubiquiti Networks USW-Enterprise-48-PoE (720W) network switch

SKU CH-KZ3J-THB6H MPN USW-Enterprise-48-PoE (720W)

A managed Layer 3 rackmount switch with 48 PoE+ ports at 2.5 GbE, four 10G SFP+ uplinks, 720 W power budget and 160 Gbps non-blocking throughput

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 4 x SFP+
  • Primary Port SpeedTotal non-blocking throughput 160 Gbps Switching capacity 32
  • Primary Port Type(48) 2.5 GbE RJ45 ports (4) 1/10G SFP+ ports
  • Management InterfaceEthernet In-Band

Model Enterprise 48 PoE

Yfirstrikaðar útgáfur eru til, en ekki til hér.

  • 48 high-speed 2.5 GbE ports deliver 160 Gbps non-blocking throughput
  • 720 W PoE budget powers 48 PoE+ devices at up to 34 W each
  • Four 10 GbE SFP+ uplinks provide 320 Gbps switching capacity
  • Layer 3 routing with static routes, DHCP relay and ACLs isolates traffic
  • 3 inch LCM touchscreen enables local configuration and monitoring

Layer 3 2.5 GbE PoE+ Switch

The Ubiquiti Networks USW-Enterprise-48-PoE is a rackmount managed switch with 48 RJ45 ports operating at 2.5 GbE and four 1/10G SFP+ uplinks. It delivers Layer 3 routing including static routes, DHCP relay and inter-VLAN routing, plus a full Layer 2 feature set such as VLANs, LACP and port isolation. Total non-blocking throughput is 160 Gbps with a 320 Gbps switching capacity and a 238.095 Mpps forwarding rate.

Networks Needing High-Density 2.5G PoE+

This switch suits deployments that need many 2.5 GbE connections with up to 34W per port and a 720W total PoE budget for cameras, access points or VoIP phones. The 1.3-inch LCM touchscreen and UniFi Network app provide local and remote management. Buyers who need only 1 GbE ports, who require more than four 10G uplinks, or who want a fanless silent design should consider other options.

720W PoE Budget Across 48 Ports

The single specification that decides fit is the 720W PoE budget shared across all 48 PoE+ ports, which limits how many devices can draw maximum power simultaneously. DC power backup readiness adds resilience for critical infrastructure. Verify the aggregate power draw of your endpoints against this budget before purchasing.

Helstu kostir

  • 48 high-speed 2.5 GbE ports deliver 160 Gbps non-blocking throughput
  • 720 W PoE budget powers 48 PoE+ devices at up to 34 W each
  • Four 10 GbE SFP+ uplinks provide 320 Gbps switching capacity
  • Layer 3 routing with static routes, DHCP relay and ACLs isolates traffic
  • 3 inch LCM touchscreen enables local configuration and monitoring

Tæknilýsing

BrandUbiquiti Networks
SeriesUniFi
Part NumberUSW-Enterprise-48-PoE (720W)
FormatRackmount
Network Management TypeManaged
Primary Ports48 x RJ45 + 4 x SFP+
Primary Port SpeedTotal non-blocking throughput 160 Gbps
Switching capacity 320 Gbps
Forwarding rate 238.095 Mpps
Primary Port Type(48) 2.5 GbE RJ45 ports
(4) 1/10G SFP+ ports
Management InterfaceEthernet In-Band
VLAN SupportYes
Jumbo FramesYes
PoEYes
Layer3
Layer 2 FeaturesIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 FeaturesDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Port MirroringYes
LEDsSystem Status
Ethernet Link/activity
SFP+ Link/activity
ButtonFactory reset
PoE Ports(48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE Power Budget720W
PowerPower method (1) Universal input, 100—240V AC, 10A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
Power supply AC/DC, internal, 100—240V, 10A Max.
Supported voltage range 100—240V AC
Max. power consumption 150W (Excluding PoE output)
Total available PoE 720W
Max Power Consumption150W (Excluding PoE output)
Dimensions442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
WeightWithout mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
CertificationCE, FCC, IC
System RequirementUniFi Network Version 6.2.26 and later
Temperature-5 to 40° C (23 to 104° F)
Humidity10 to 90% noncondensing
Sendingarþyngd8.01 kg
Stærð sendingar544 × 518 × 124 mm

Aðrar útgáfur af þessari vöru

1 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What comes in the box with the USW-Enterprise-48-PoE and do I need to buy SFP+ modules separately?

The package includes the switch and rackmount hardware. The four 10G SFP+ ports require compatible transceivers or direct-attach cables, which are sold separately.

Should I choose this 720 W model or a lower-budget version for 48 ports of 2.5 GbE PoE+?

This model provides a 720 W PoE budget with up to 34 W per port, supporting the full complement of 48 PoE+ devices simultaneously.

What does the 320 Gbps switching capacity mean for real-world throughput on the 2.5 GbE and 10G ports?

The non-blocking fabric delivers 160 Gbps total throughput, allowing all 48 ports at 2.5 GbE and four 10G uplinks to run at line rate without congestion.
