Rectangular 2U rackmount UPS, dark metal finish, front LCD panel, six rear outlets

Vertiv

Vertiv GXT5LI-1500LVRT2UXL UPS 1500VA/1350W 120V 2U Lithium-Ion

SKU CH-86SP-GPW3V MPN GXT5LI-1500LVRT2UXL

Double-conversion online UPS with lithium-ion battery delivering 1500 VA / 1350 W pure sine-wave power in a 2U rack/tower chassis

  • International Version120V
  • Input Voltage Range60-150 VAC
  • Input ConnectionNEMA 5-15P
  • VA Rating1500VA
  • Watts1350W
  • Output Voltage120V; 100/110/115/120V/125VAC (User-Configurable)

Option GXT5LI-1500LVRT2UXL

  • Double-conversion online topology protects sensitive loads with pure sine-wave output
  • 9 output power factor delivers 1350 W from a 1500 VA rating
  • Lithium-ion battery reaches 90 % charge in under 2 hours and lasts longer than lead-acid
  • 2U rack/tower form factor fits standard cabinets or desktop placement
  • Full-load runtime 14 minutes and half-load runtime 28 minutes keep critical gear running

Double-Conversion Online UPS

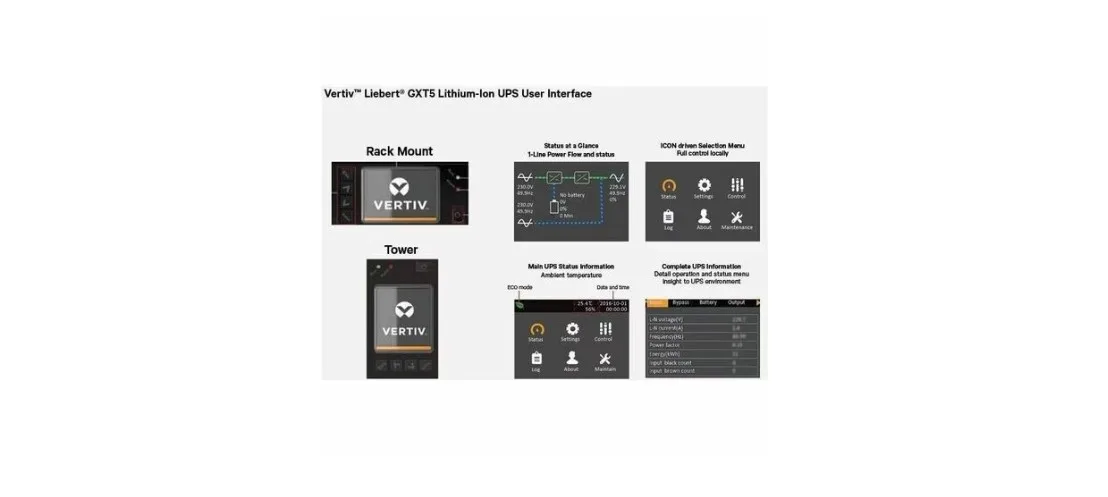

The Vertiv GXT5LI-1500LVRT2UXL is a 1500VA/1350W double-conversion online UPS with a .9 output power factor. It uses lithium-ion batteries and fits in a 2U rack or tower form factor. A full-color LCD interface provides status and configuration access.

IT managers protecting critical 120V loads

This unit suits environments that need pure sine-wave output and user-configurable voltage settings of 100, 110, 115, 120, or 125VAC. It is not for installations requiring 2U rackmount with different input connections or output receptacle types. Buyers needing longer runtime at full load should evaluate other options.

Lithium-ion battery with two-hour recharge

The battery reaches 90 percent capacity in under two hours and delivers 14 minutes of runtime at full load or 28 minutes at half load. UL 1642, UL 1973, UL 1778, and CSA 22.2 No. 107.3 approvals cover the cells, pack, and UPS assembly. Operating temperature ranges from 32°F to 104°F with derating at 50°C.

Helstu kostir

  • Double-conversion online topology protects sensitive loads with pure sine-wave output
  • 9 output power factor delivers 1350 W from a 1500 VA rating
  • Lithium-ion battery reaches 90 % charge in under 2 hours and lasts longer than lead-acid
  • 2U rack/tower form factor fits standard cabinets or desktop placement
  • Full-load runtime 14 minutes and half-load runtime 28 minutes keep critical gear running

Tæknilýsing

BrandVertiv
ModelGXT5LI-1500LVRT2UXL
International Version120V
Input Voltage Range60-150 VAC
Input ConnectionNEMA 5-15P
VA Rating1500VA
Watts1350W
Output Voltage120V; 100/110/115/120V/125VAC (User-Configurable)
Output Frequency40~70Hz
Outlets6
Outlet Type6 x NEMA 5-15R
Battery TypeLithium Ion
Battery Run TimeFull-Load Runtime 14 min
Half-Load Runtime 28 min
Battery Recharge Time< 2hrs to 90%
ApprovalsUL 1642 (Li-Ion Battery Cells), UL 1973 (Li-Ion Battery Pack w/UPS), UL 1778, CSA 22.2 No. 107.3
Rackmountable2U Rack/Tower
Surge ProtectionANSI C62.41, Category B
TemperatureOperating Temperature: 32°F to 104°F (0°C to 40°C) (10% Derating at 50°C)
Storage Temperature: -4° to 140° (-20° to 60°)
Humidity0% - 95%, non-condensing
Dimensions3.4" x 16.9" x 18.5"
Weight39.7 lbs.
Sendingarþyngd24.00 kg
Stærð sendingar597 × 569 × 241 mm

Aðrar útgáfur af þessari vöru

5 í viðbót í sama vöruflokki

Sama fjölskylda, mismunandi minni, kælingu eða klukkuhraða — berðu saman áður en þú ákveður þig.

Spurningar um þessa vöru

What input plug does the GXT5LI-1500LVRT2UXL need from my wall circuit?

The unit ships with a NEMA 5-15P plug, so a standard 120 V, 15 A receptacle is required for the input connection.

Will my existing NEMA 5-15R power strips work with the six outlets on this UPS?

Yes, all six outlets are NEMA 5-15R, so any 5-15P cord or strip you already use will plug in directly.

How can I verify the UPS is delivering pure sine-wave output after installation?

The front-panel LCD shows real-time output voltage and frequency; a stable 120 V reading with 40–70 Hz confirms the double-conversion topology is active.
