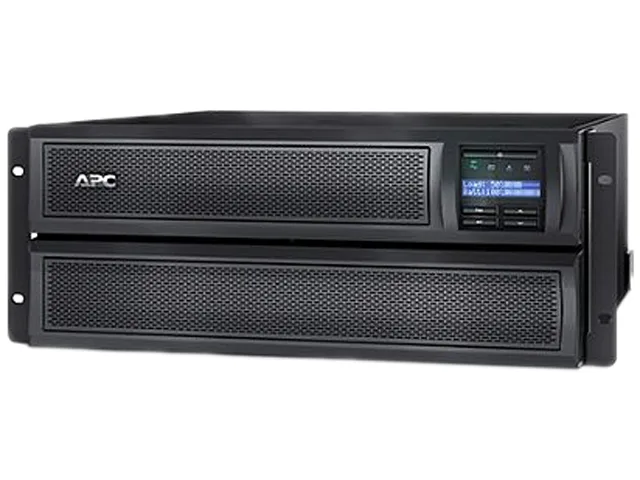

Rectangular black metal tower UPS with front LCD display and multiple rear outlets

APC

APC SMX3000HVNC Smart-UPS 3000 VA 2700 W Tower/Rack UPS

SKU CH-CG35-G05FD MPN SMX3000HVNC

Tower or rack-mountable UPS delivering 3000 VA and 2700 W with 230 V pure sine-wave output, automatic voltage regulation from 140 to 280 V, and a Smart-Slot for management cards

  • International Version208V, 230V
  • Input Voltage Range140 - 280V
  • Input Frequency47 - 63 Hz
  • Input ConnectionBritish BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
  • VA Rating3000 VA
  • Watts2700 Watts

Options SMX3000HVNC

Rodyti 7 daugiau konfigūracijų
  • 3000 VA and 2700 W protect critical servers and network gear
  • 16-segment LED display gives instant status visibility at a glance
  • 140–280 V input range handles unstable mains without battery drain
  • Smart-Slot enables optional network cards for remote monitoring
  • Convertible tower or rack form factor fits any installation space

Power rating and application

The APC SMX3000HVNC is a 3000 VA, 2700 W Smart-UPS designed for servers, storage and network equipment. It delivers pure sine wave output on battery and includes a 16-segment LED display with automatic voltage regulation across a 140 to 280 V input range. The unit operates at 208 V or 230 V and accepts 47 to 63 Hz input frequency.

Replacement and upgrade value

It replaces smaller VA units or non-sine-wave backups when connected loads approach 2700 W or when extended runtime via external battery packs is required. The jump is worth it for installations that need high-efficiency operation at variable loads and the ability to scale runtime from minutes to hours without replacing the UPS. The Smart-Slot allows optional management cards for network monitoring.

Installation and common issues

The tower or rack-mountable chassis measures 7.00 x 17.00 x 19.00 inches and weighs 85.00 lbs, so two-person handling or a lift is advised for rack mounting. Input connections include British BS1363A, IEC-320 C20 and Schuko CEE 7/EU1-16P plugs; verify the correct cord for your region. Battery replacement uses the APCRBC143 cartridge; forgetting to disable the alarm before hot-swapping is a frequent oversight.

Privalumai

  • 3000 VA and 2700 W protect critical servers and network gear
  • 16-segment LED display gives instant status visibility at a glance
  • 140–280 V input range handles unstable mains without battery drain
  • Smart-Slot enables optional network cards for remote monitoring
  • Convertible tower or rack form factor fits any installation space

Specifikacijos

BrandAPC
SeriesSmart-UPS
ModelSMX3000HVNC
International Version208V, 230V
Input Voltage Range140 - 280V
Input Frequency47 - 63 Hz
Input ConnectionBritish BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
VA Rating3000 VA
Watts2700 Watts
Output Voltage230V AC
Output Frequency50 / 60 Hz +/- 3 Hz
Battery TypeSealed Lead Acid
Battery ReplaceableAPCRBC143
Interface PortSmart-Slot
FeaturesSmarter productivity with ability to tailor to your specific application needs
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Save time with easy and convenient remote accessibility
Avoids costly power problems by keeping your IT equipment and data safe and available
Peace of mind that comes with full equipment compatibility and reliability of a leader
Dimensions7.00" x 17.00" x 19.00"
Weight85.00 lbs.
Siuntos svoris47.63 kg
Pakuotės dydis635 × 584 × 330 mm

Kiti šio modelio variantai

Dar 5 toje pačioje serijoje

Ta pati šeima, bet skiriasi atmintis, aušintuvas ar dažnis — palyginkite prieš apsispręsdami.

Klausimai apie šią prekę

What rack depth and clearance does the 7.00" x 17.00" x 19.00" chassis need for mounting?

The unit measures 7.00 inches high, 17.00 inches wide and 19.00 inches deep, fitting a standard 19-inch rack with 4U space; allow extra depth for rear cables and ventilation.

How do I connect the British BS1363A, IEC-320 C20 or Schuko CEE 7/EU1-16P input, and what step is often missed?

Plug the supplied cord into a 208V or 230V circuit within the 140-280V range, then configure the input voltage setting on the 16-segment LED display before powering on loads.

Which battery cartridge replaces the internal sealed lead-acid pack when runtime drops?

Order the APCRBC143 replacement cartridge; the UPS supports hot-swap replacement so you can change the battery without shutting down connected equipment.
