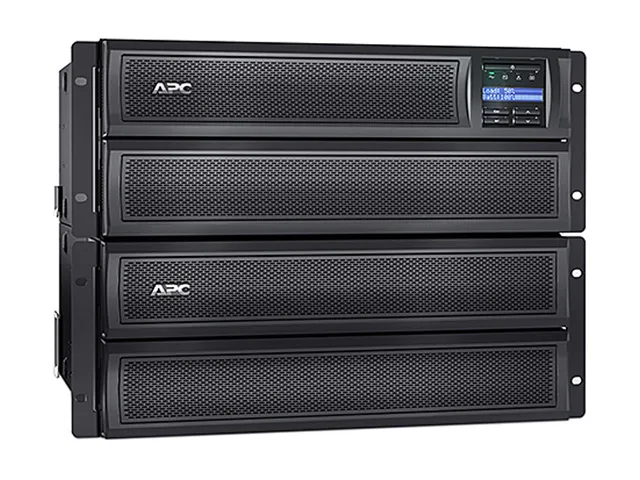

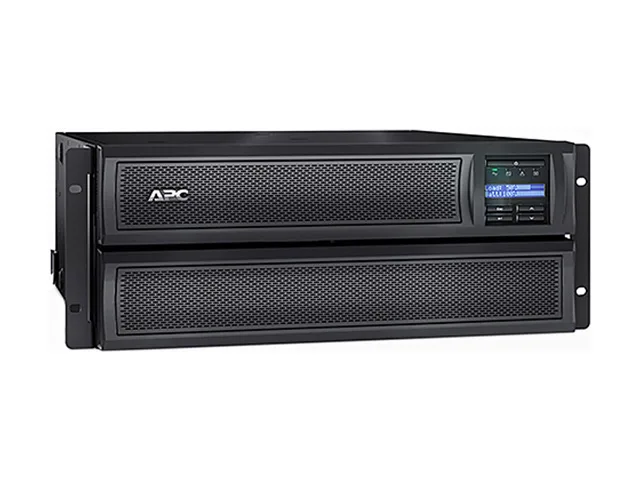

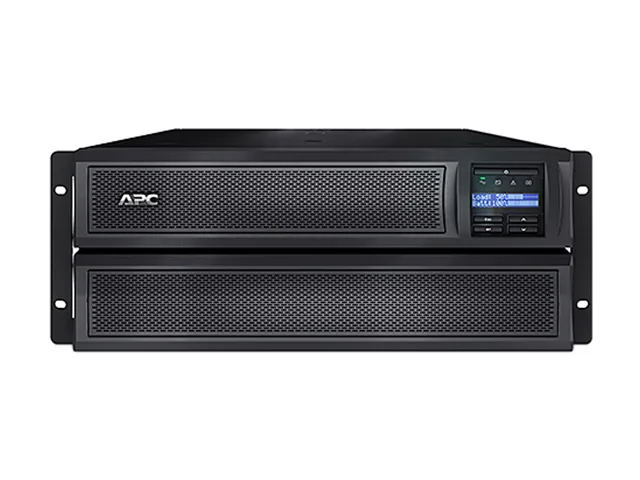

Rectangular black metal rackmount UPS, front panel with display and buttons, 17 by 7 by 19 inches

APC

APC SMX2200HV 2200VA 1980W UPS

SKU CH-QHS1-F4E5R MPN SMX2200HV

Provides 2200 VA battery backup with USB and Smart-Slot management for rack-mount servers

  • Input Voltage RangeAC 230 V 70 V AC to 153 V AC Mains Operation 75 V AC to 154
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • VA Rating2200 VA
  • Watts1980 Watts
  • Output VoltageAC 230 V ( 47 - 53 / 57-63 Hz )
  • Battery Recharge Time3 hour(s)

Options SMX2200HV

Rodyti 7 daugiau konfigūracijų
  • 2200 VA capacity protects critical servers and network gear
  • 1980 W output handles multi-core and virtualised workloads
  • Smart-Slot and USB ports enable remote management
  • 3-hour recharge restores backup readiness quickly
  • 10 min run-time at full load secures safe shutdown

Rackmount UPS for critical infrastructure

The APC SMX2200HV is a 2200 VA, 1980 W battery backup designed for rackmount installation in server rooms and network closets. It accepts AC 230 V input with a wide operating window from 70 V to 154 V. The unit provides clean output power at 230 V and connects via Smart-Slot and USB for management integration.

Runtime at full and half load

At full 1980 W load the internal battery delivers approximately 10 minutes of runtime, extending to roughly 25 minutes at half load. Recharge to full capacity takes 3 hours. The replaceable battery cartridge is the APCRBC143, allowing service without removing the UPS from the rack.

Smart-Slot and USB management interface

The single specification that decides fit is the combination of a Smart-Slot and a USB port for monitoring and shutdown software. Buyers who need network-card-only management or contact-closure signals without a slot adapter cannot use this unit as-is.

Privalumai

  • 2200 VA capacity protects critical servers and network gear
  • 1980 W output handles multi-core and virtualised workloads
  • Smart-Slot and USB ports enable remote management
  • 3-hour recharge restores backup readiness quickly
  • 10 min run-time at full load secures safe shutdown

Specifikacijos

BrandAPC
ModelSMX2200HV
Input Voltage RangeAC 230 V
70 V AC to 153 V AC Mains Operation
75 V AC to 154 V AC Adjustable Mains Operation
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
VA Rating2200 VA
Watts1980 Watts
Output VoltageAC 230 V ( 47 - 53 / 57-63 Hz )
Battery Recharge Time3 hour(s)
Battery ReplaceableAPCRBC143
AlarmsAlarm when on battery: distinctive low battery alarm: configurable delays
Interface PortSmart-Slot, USB
ApprovalsCE , CSA , EAC , EN 50091-1 , EN 50091-2 , EN/IEC 62040-1 , EN/IEC 62040-2 , FCC Part 15 Class A , IEC 60950 , IRAM , RCM , UL 1778 , VDE , WEEE
RackmountableYes
Dimensions17.01" x 7.01" x 19.01"
Weight85.01 lbs.
Siuntos svoris47.63 kg
Pakuotės dydis635 × 610 × 330 mm

Kiti šio modelio variantai

Dar 5 toje pačioje serijoje

Ta pati šeima, bet skiriasi atmintis, aušintuvas ar dažnis — palyginkite prieš apsispręsdami.

Klausimai apie šią prekę

Will the USB port on the SMX2200HV talk to my older server that only has USB 2.0?

The unit provides a standard USB port for management and monitoring. It is backward compatible with USB 2.0 hosts, so your existing server can communicate with the UPS for graceful shutdown and status reporting.

How can I verify the UPS is delivering clean 230 V output after I rack-mount it?

The LCD shows real-time output voltage and frequency. You should see 230 V AC and a frequency between 47-53 Hz or 57-63 Hz depending on the input source. Green "Online" LED confirms normal operation.

Does the box include the APCRBC143 battery cartridge and rack-mount brackets, or must I order them separately?

The UPS ships with the internal battery installed and ready to use. Rack-mount brackets are included for 19-inch rack installation. No separate battery cartridge or rail kit purchase is required for initial deployment.
